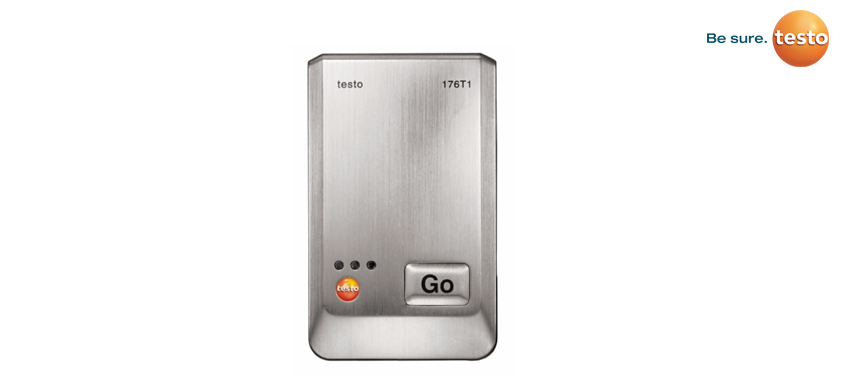

testo176-T1 Temperature data logger
Producr Description
The testo 176 T1 1-channel data logger is ideal for high-precision temperature monitoring. Its internal sensor records the indoor air temperature, e.g. in cold and deep-freeze storage facilities, continuously and reliably. Its sensor is a Pt100 temperature sensor, which means that the temperature is measured and documented with extreme precision. The Pt100 temperature sensor can achieve an accuracy of up to 0.2 °C.
The temperature data logger’s large measurement data memory has space for up to 2 million readings. Temperature can therefore be monitored over a long period of time, without the need for frequent data logger read-out. Its battery life of up to 8 years also offers considerable advantages for long-term temperature monitoring and recording.
• High-precision measurements thanks to the Pt100 temperature sensor
• Ideal for long-term measurements: memory for up to 2 million readings, up to 8 years’ battery life
• Certified according to EN 12830, HACCP-compliant and waterproof in compliance with IP 68
• Three software versions available for data management on the PC, basic software available as a free download
The testo 176 T1 data logger monitors the temperature, even in extreme conditions, with a highly accurate Pt100 temperature sensor. It is able to precisely document the temperature status over a longer period of time. The fact that its metal housing is extremely robust makes the data logger particularly suitable for monitoring the temperature in industrial environments.
Technical Data | |
Temperature – Pt100 | |
Measuring range | -35 to +70 °C |
Accuracy | ±0.2 °C (-35 to +70 °C) ±1 Digit |
Resolution | 0.01 °C |
General technical data | |
Weight | 390 g |
Dimensions | 103 x 63 x 33 mm |
Operating temperature | -35 to +70 °C |
Product-/housing material | Plastic |
Protection class | IP68, 1 meter |
Channels | 1 internal |
Product colour | silver |
Standards | EU-guideline 2014/30/EU; 2011/65/EU; EN 12830 |
Measuring rate | 1 s to 24 h; 2 s to 24 h (online measurement) |
Battery type | 1 x Lithium (TL-5903) |
Battery life | 8 years (15 min. meas. rate, +25 °C) |
Interface | mini usb, SD card slot |
Memory | 2,000,000 measuring values |
Storage temperature | -40 to +85 °C |
