testo 175-T1 Data Logger
Product Description

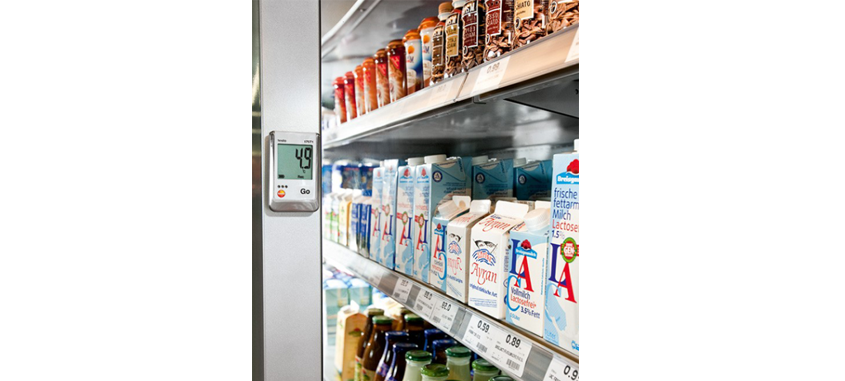

The testo 175 T1 is the compact data logger for the longterm monitoring of refrigerated and deep-freeze rooms as well as for the documentation of transport temperature in delivery vehicles. The large 1 million measurement value memory and the long-life batteries allow readout at greater intervals, in spite of the shorter measurement rate. The free ComSoft Basic software allows fast programming of the data logger and easy data analysis. The version testo175 T2 additionally has a connection for an external NTC temperature probe for measuring the core temperature of goods, for example. Like all Testo data loggers for applications in the food sector, the testo 175 T1 and testo 175 T2 are tested according to DIN EN 12830 by the ATP testing section of the TÜV Süd for HACCP purposes.
State-of-the-art technology. High level of data security

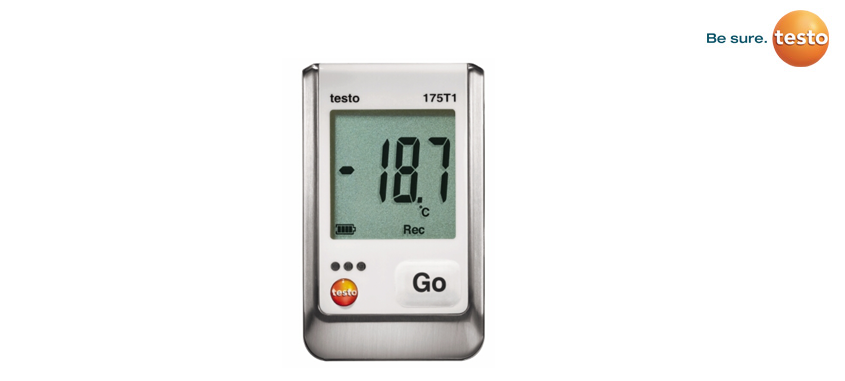

The logger’s display provides you with a wide range of valuable information including current measurement values, threshold values, points where these thresholds have been exceeded, min/max values and remaining battery power. And because all these values can be read off directly from the display, there is no need for you to boot up your PC. In addition to this nice little detail, the logger also has a super size memory, which can save up to 1 million measurements, and an exceptionally long battery life of up to 3 years. This gives you the freedom to read out the logger data at longer intervals, even when measuring cycles are shorter. The triple AAA batteries included in delivery can be replaced by the user.
Technical Data | |
Temperature – NTC | |
Measuring range | -35 to +55 °C |
Accuracy | ±0.5 °C (-35 to +55 °C) ±1 Digit |
Resolution | 0.1 °C |
General technical data | |
Weight | 130 g |
Dimensions | 89 x 53 x 27 mm |
Operating temperature | -35 to +55 °C |
Product-/housing material | Plastic |
Protection class | IP65 |
Channels | 1 internal |
Product colour | white |
Standards | EU-guideline 2014/30/EU; DIN EN 12830; 2011/65/EU |
Measuring rate | 10 s – 24 h |
Battery type | 3 x AIMn type AAA or Energizer |
Battery life | 3 years (15 min. meas. rate, +25 °C) |
Interface | mini usb, SD card slot |
Memory | 1,000,000 measuring values |
Storage temperature | -35 to +55 °C |
