testo160THL wifi datalogger
Product Descriptions

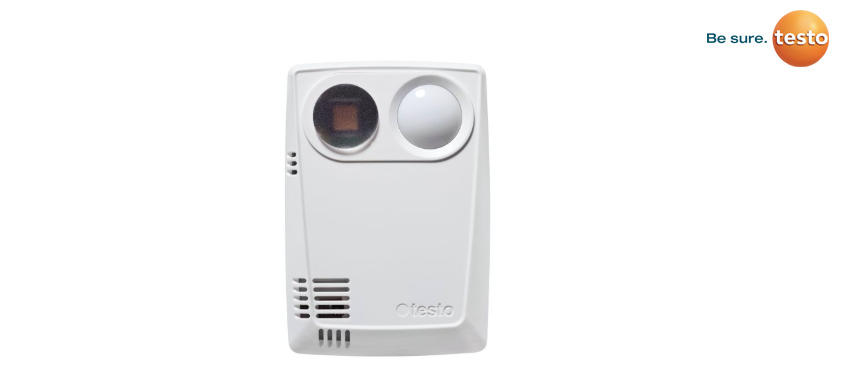

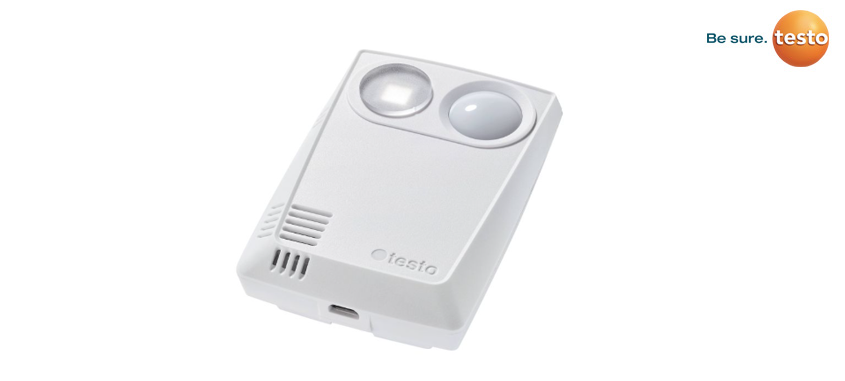

testo 160 THL – wifi datalogger with internal temperature, humidity, lux, and UV radiation sensors
The testo 160 THL is a part of the testo 160 data logger family developed specifically for the needs of museums. This system allows for the configuration of internal sensors and external probes, to match any monitoring situation in a museum or archival setting.
The logger data is accessible at any time from any browser enabled device, such as a smart phone, tablet, or a PC or Mac.
• Data logger with internal sensors for temperature, humidity, cumulative lux, and UV exposure level recording
• Optional paintable logger cover helps conceal the logger in an exhibit
• Logger sends data to the Testo Cloud using your existing wifi datalogger, alarms by email (Basic License), and optional text messages with the Advanced License
• Simple to install, integrate, and operate
Monitor your exhibits and archives with the testo 160 THL wifi datalogger. The testo 160 THL ambient conditions logger comes with internal temperature, humidity, lux, and UV sensors to deliver reliable monitoring of the ambient climate and cumulative light exposure in museums and archives.
| Technical Data | |
| Humidity – Capacitive | |
| Measuring range | 0 to 100 %rH (non-condensing) |
| Accuracy | ±2.0 %rH at +77.0 °F and 20 to 80 %rH / ±2.0 %RH at +25.0 °C and 20 to 80 %RH |
| ±3.0 %rH at +77.0 °F and < 20%rH and > 80 %rH / ±3.0 %RH at +25.0 °C and < 20%RH and > 80 %RH | |
| ±1.0 %rH hysteresis | |
| ±1.0 %rH / year drift | |
| Resolution | 0.1 %rH |
| Temperature | |
| Measuring range | -10 to +50 °C |
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| Light | |
| Measuring range | 0 to 20000 Lux |
| Accuracy | DIN 5032-7 Class C-compliant. ±3.0 Lux or ±3.0 % of mv refers to reference DIN 5032-7 Class L) |
| Resolution | 0.1 Lux |
| UV | |
| Measuring range | 0 to +10000 mW/m² |
| Accuracy | ±5 mW/m² or ±5 % of mv (refers to external reference) |
| Resolution | 0.1 mW/m² |
| General technical data | |
| Weight | 113 g |
| Dimensions | 92 x 64 x 24 mm |
| Operating temperature | -10 to +50 °C |
| Protection class | IP20 |
| Battery life | 1.5 years |
| Power supply | 4 x AAA batteries 1.5 V, alternatively mains unit via USB connection |
| Memory | 32,000 Measuring values / Sum of all channels |
| Storage temperature | -20 to +50 °C |
