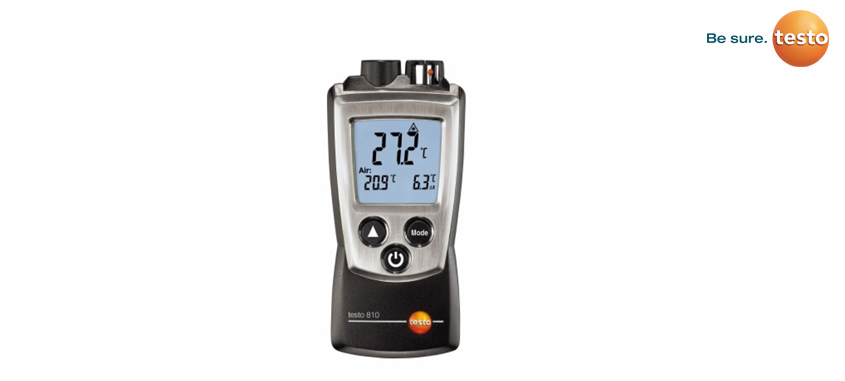

testo 810- Infrared thermometer
Product Descriptions

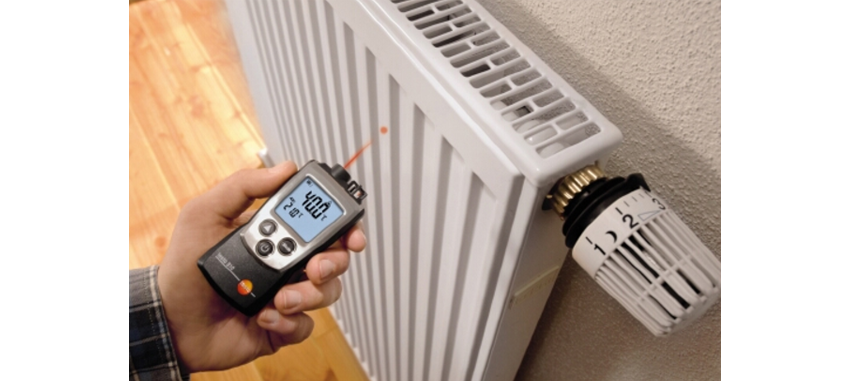

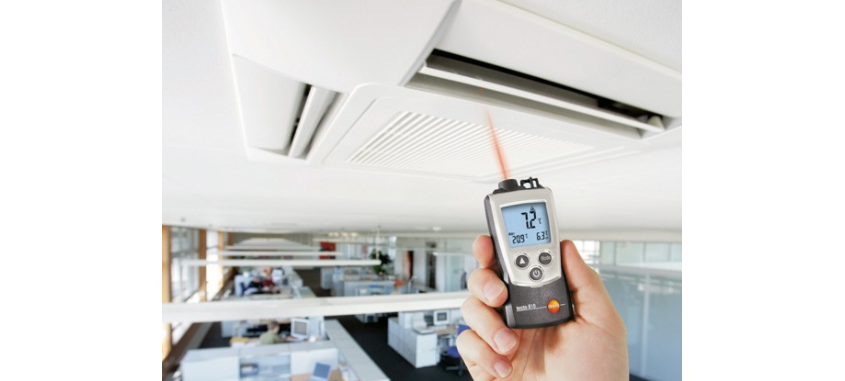

The testo 810 is a handy temperature measuring instrument which measures air temperature, and simultaneously surface temperature by infrared. For example, the temperature of a radiator, an air outlet or a window can be easily and conveniently compared to the air temperature in the room. The difference between air and surface temperature is automatically displayed.
Thanks to its handy design, the testo 810 is quickly to hand and easy to stow, for example in a trouser pocket. The infrared measurement is carried out with a 1-point laser measurement spot marking and 6:1 optics. The emissivity can be individually set depending on the application, and with the help of the min./max. function, the minimum and maximum values are shown in the display.
• Simultaneous measurement of the surface temperature and air temperature
• Non-contact measurement of the surface temperature (infrared thermometer)
• Display of the temperature difference
• Adjustable emission level
| Technical Data | |
| General technical data | |
| Weight | 90 g (incl. battery and protective cap) |
| Dimensions | 119 x 46 x 25 mm (incl. protective cap) |
| Operating temperature | -10 to +50 °C |
| Protection class | IP40 |
| Battery type | 2 AAA micro batteries |
| Battery life | 50 h (average, without display illumination) |
| Temperature – NTC | |
| Measuring range | -10 to +50 °C |
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| Measuring rate | 0.5 s |
| Temperature – Infrared | |
| Measuring range | -30 to +300 °C |
| Accuracy | ±2.0 °C (-30 to +100 °C) |
| ±2 % of mv Remaining Range | |
| Measuring rate | 0.5 s |
| Infrared resolution | 0.1 °C |
