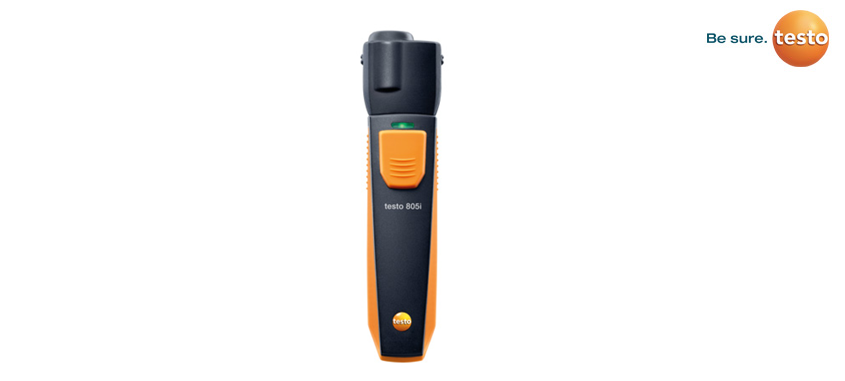

testo 805i – Infrared Thermometer
Product Descriptions

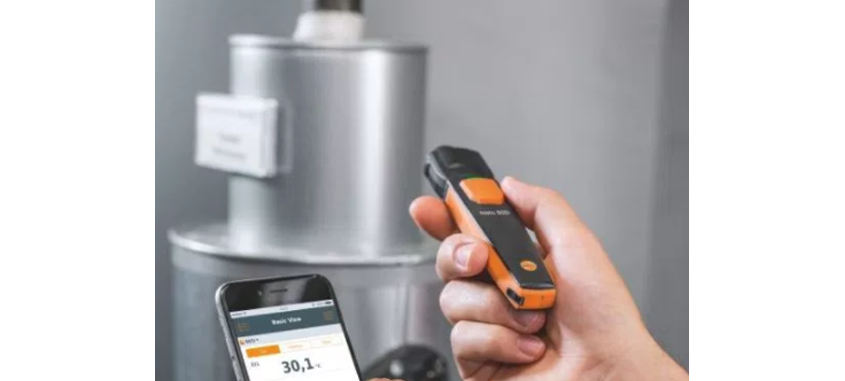

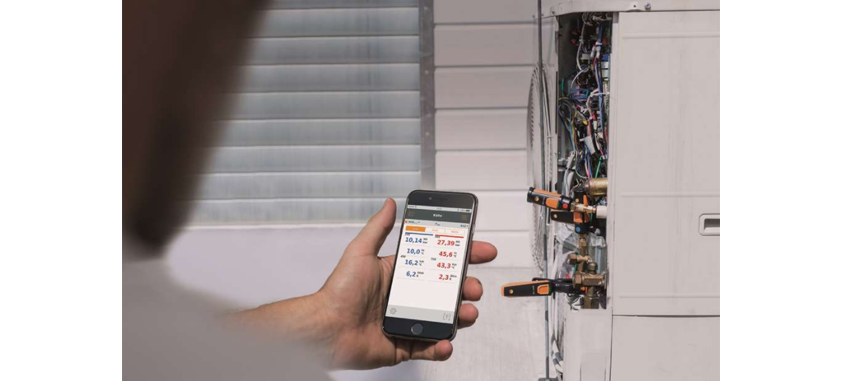

In combination with a smartphone or tablet, the infrared thermometer testo 805i functions as a compact measuring instrument for wall temperatures as well as for fuse and component temperatures in air conditioning systems. The measurement location is clearly marked with a multi-point laser circle.
Users can read off their measurement values comfortably in the testo Smart Probes App installed on the end device. Using the App, images including temperature value and laser marking can also be created and documented. In addition to this, the detection of mould-endangered areas is simplified by a special menu. The measurement protocols can then be directly sent as PDF or Excel files.
• Non-contact IR measurement of surface temperature
• Easy image documentation incl. measurement values and measurement spot marking
• Measurement data analyzed and sent via testo Smart Probes App
• Measurement spot marking with easily visible 8-point laser circle
• Space-saving and easy to transport
• Sensor type Infrared
| Technical Data | |
| Temperature – Infrared | |
| Measuring range | -30 to +250 °C |
| Accuracy | ±1.5 °C or ±1.5 % of mv (0 to +250 °C) |
| ±2 °C (-20 to -0.1 °C) | |
| ±2.5 °C (-30 to -20.1 °C) | |
| Resolution | 0.1 °C |
| General technical data | |
| Weight | 97 g |
| Dimensions | 140 x 36 x 25 mm |
| Operating temperature | -10 to +50 °C |
| housing material | ABS / TPE |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery type | 3 AAA micro batteries |
| Battery life | 30 h |
| Storage temperature | -20 to +60 °C |
