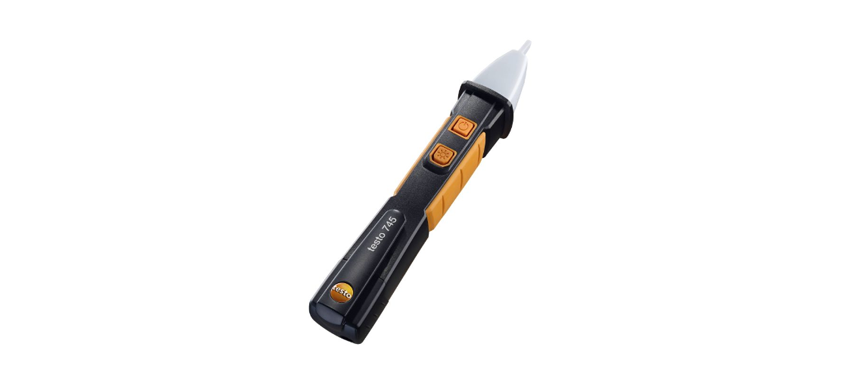

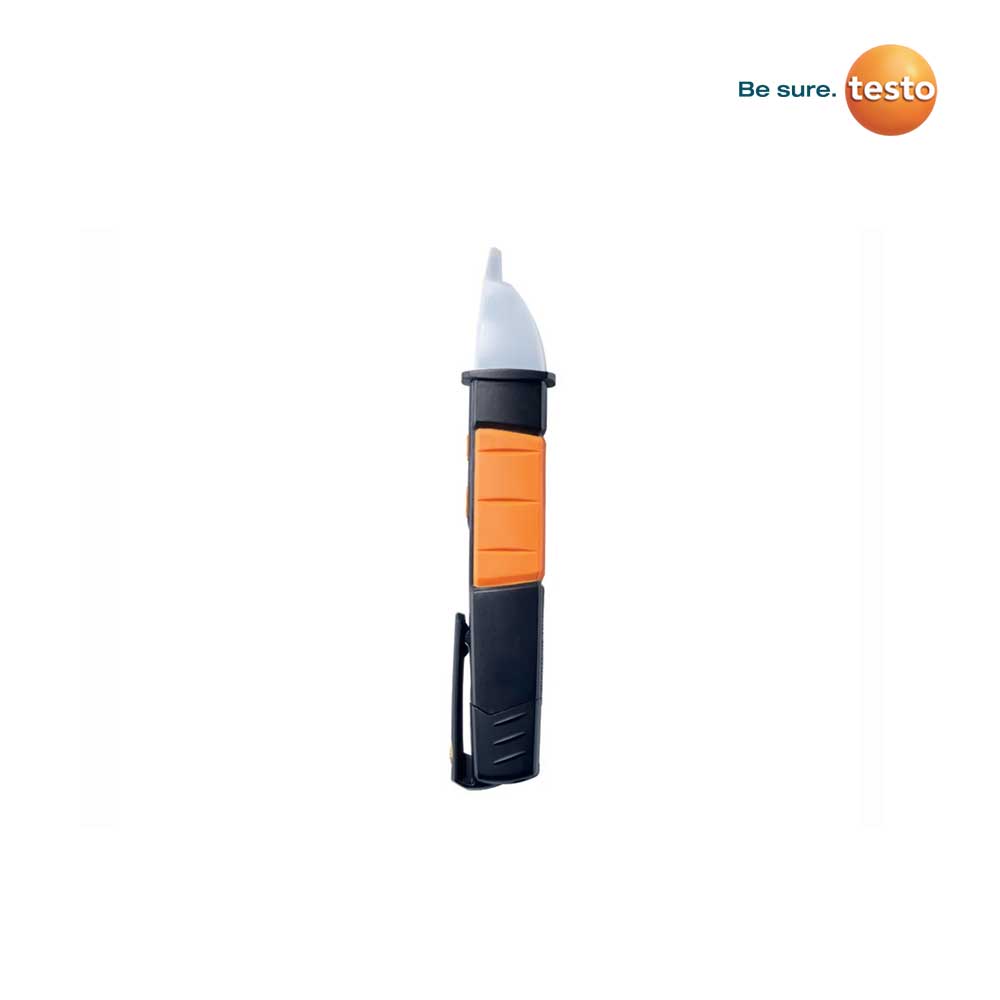

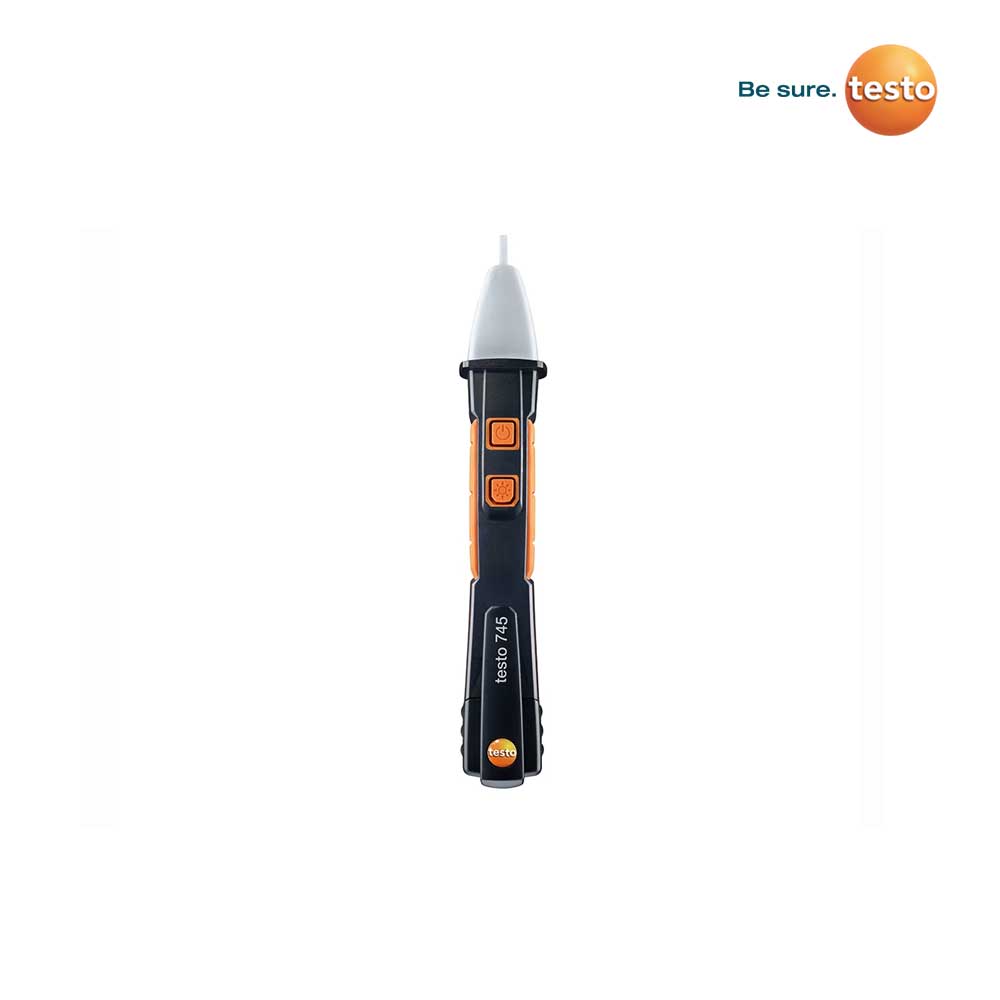

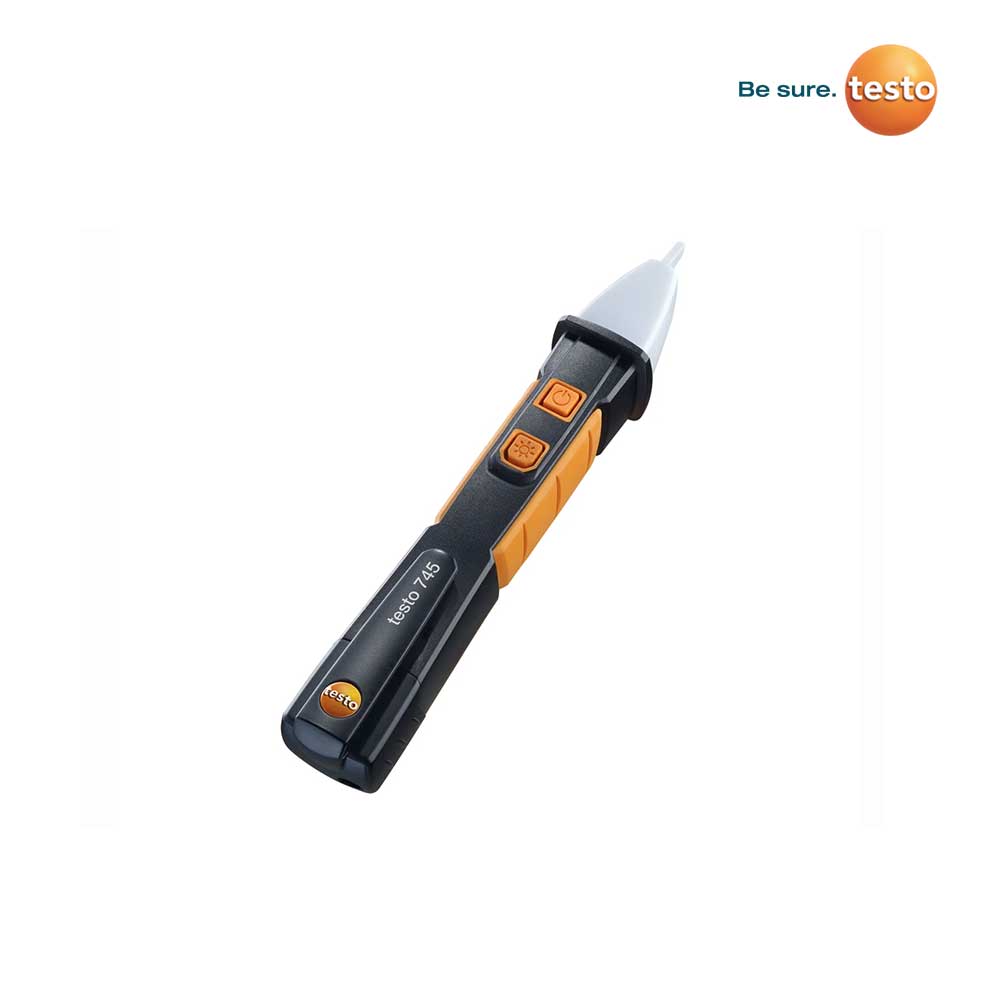

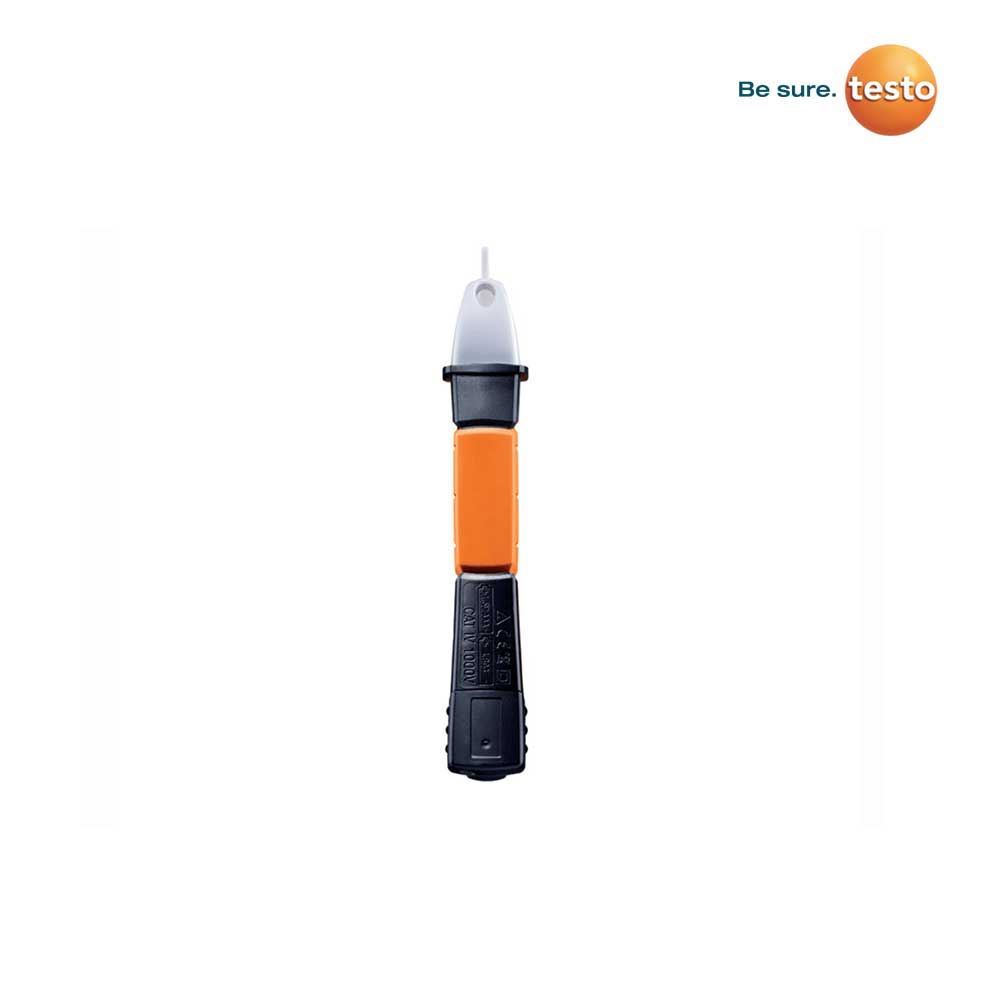

testo 745 – Voltage tester
Product Descriptions

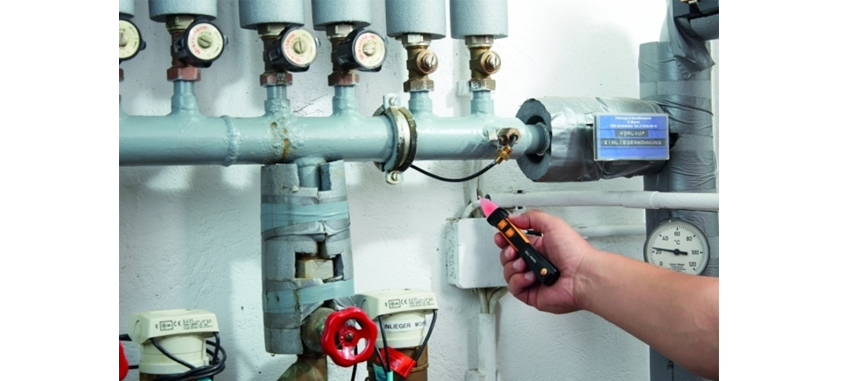

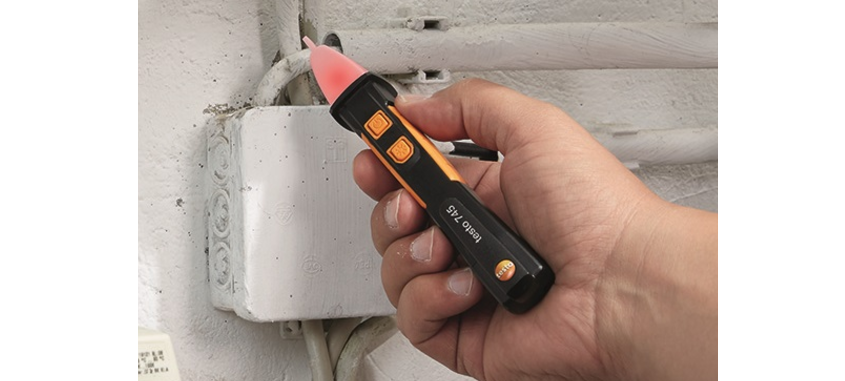

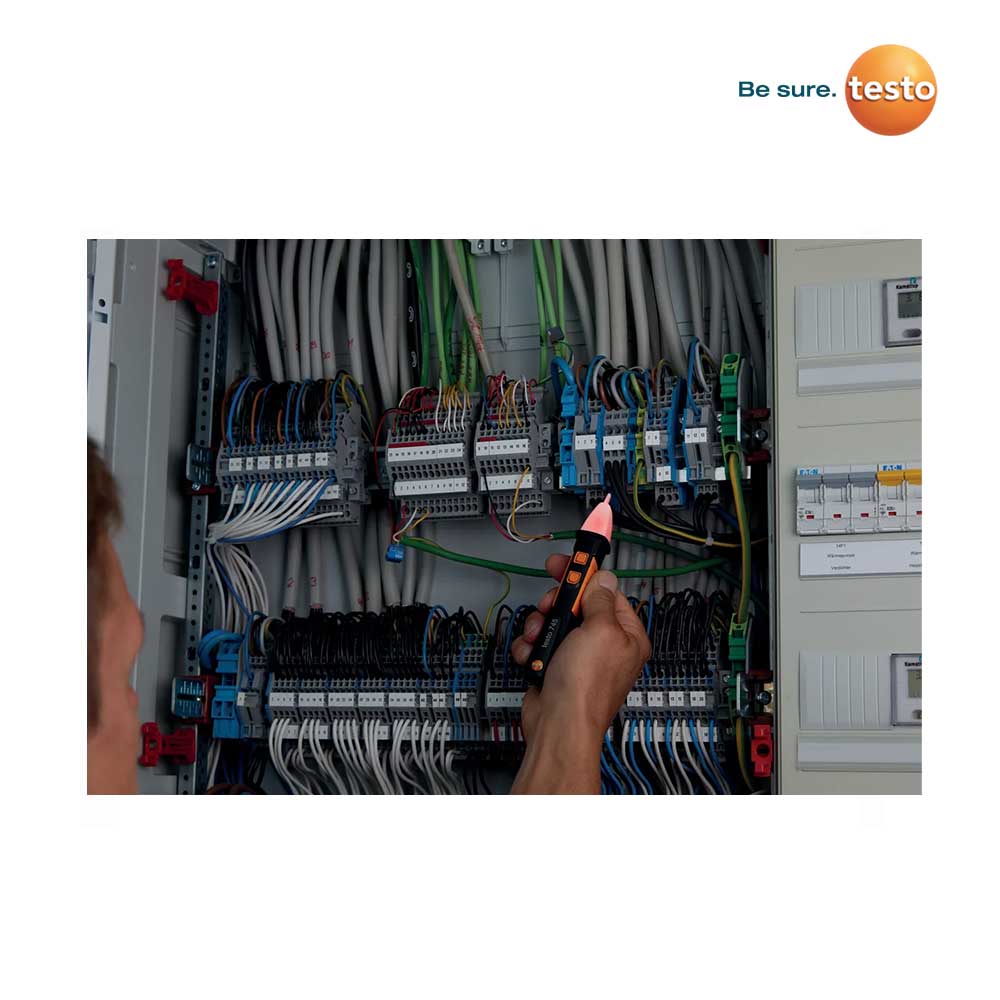

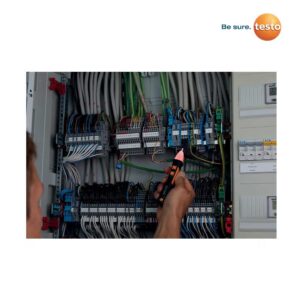

The testo 745 non-contact voltage tester with a voltage range of up to 1,000 V AC is particularly well-suited to fast initial checking of any suspected fault sources. When the presence of alternating current is determined, the testo 745 gives a warning via a clear visual and acoustic signal. In order to increase reliability, the voltage tester has a filter for high-frequency interference signals and is also waterproof and dustproof according to IP 67.
Technical Data
• Dimensions : 155 x 25 x 23 mm
• Operating temperature : -10 to +50 °C
• Protection class : IP67
• Storage temperature : -15 to +60 °C
• Overvoltage Category : CAT IV 600V; CAT III 1000V
• Weight : 63 g
• Measuring range / Resolution : 12 to 1000 V / 50 to 1000 (sensitivity 1), 1000 / 12 V (sensitivity 2)
