testo 570 – Digital manifold gauge

Product Descriptions

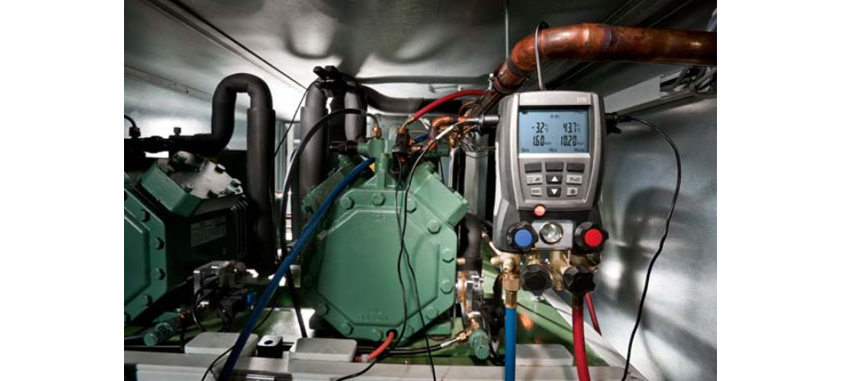

The testo 570 is a robust digital manifold with a 4-way valve block that’s ideal for installing and troubleshooting all types of refrigeration, heat pumps and AC systems. Use it daily for calculating superheat and subcooling simultaneously, in real time, with two external temperature probes. During heat pump mode the 570 saves you time by automatically switching over the high and low side pressure and temperature without having to change the hoses. For long term or multiple measuring cycles the 570 can be programmed and left to automatically collect and store data for up to 99 hours. This internal memory gives the technician the ability to accurately diagnose system errors that could easily have been missed in a manual process. Use Testo’s easyKool software, exclusive to Testo Digital Manifolds, for complete data management, providing onsite reports to customers and printing and displaying measuring results.
Modern-day technology for easier handling and calculating
• 999 hours of internal memory – clearly structured, easy to follow
• Real-time data measurement and graphical editing with optional EasyKool software, which shows data in an easy to understand format – faults can be detected quicker, in case of breakdowns or failures
• Call up and print out protocols and reproduce measurements easily
• 40 refrigerant agents are already stored in the meter, and free updates of other refrigerant agents are available, with optional EasyKool software
• Two temperature compensated pressure sensors for quick and reliable high / low pressure plus automatic temperature measurements
• Three temperature connecting points for connectable temperature sensors, for simultaneous superheat / subcooling calculations and parallel surrounding temperature measurements, such as for cold storage room applications
• Integrated vacuum measurements for the evacuation of refrigerant systems / heat pumps
• Automatic heat pump mode – no need to replace refrigerant hoses
• Further features include temperature compensated leak-tightness check function, and automatic surrounding pressure compensation

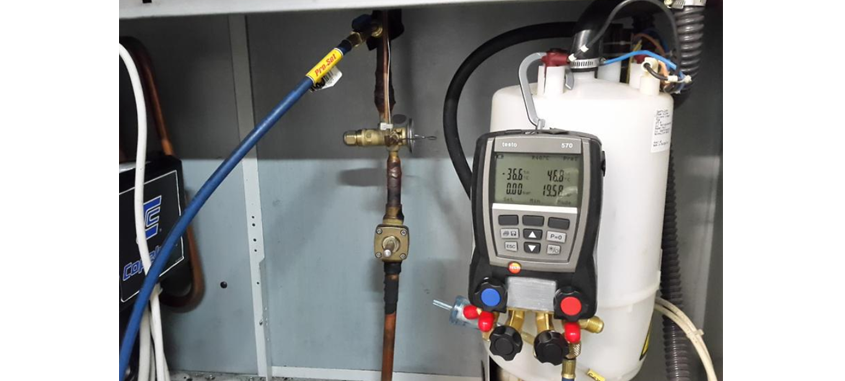

The testo 570 digital manifold comes with two clamp temperature probes, which can be clamped directly onto a pipe, so that surface temperature can be measured safely. A wide selection of optional sensors for oil pressure, electricity, and temperature measurements is also available.
Rugged and easy to use – the professional digital manifold

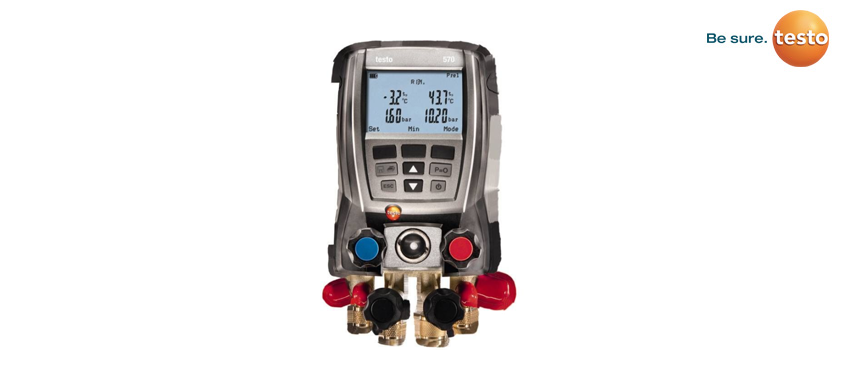

The testo 570 is a compact HVAC/R digital manifold with 4 connecting points, 4 hose brackets, and a sight glass for easy, efficient, fast, and safe use.

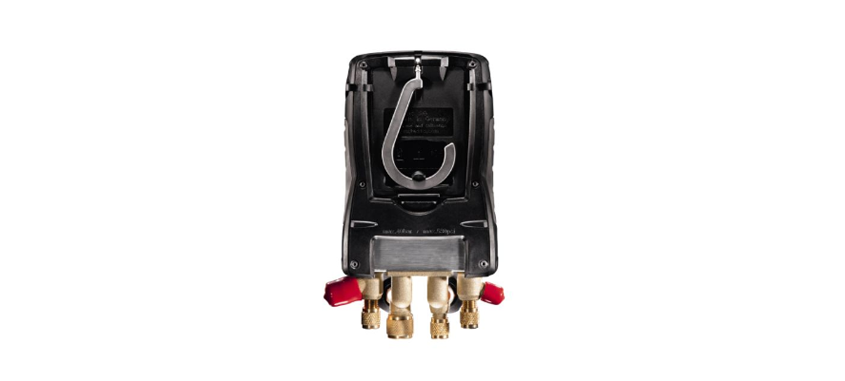

The manifold’s rugged housing protects against impact, and a suspension attachment ensures that the meter is safely positioned during measuring. The backlit display is easy to read in the dark and in poor lighting.
