testo 380 Particulate matter measurement system
Product Descriptions
Dust measuring instrument that can measure areas with pollutant emissions or flue gases at various emission points. Including the vent in all sizes with the testo 380, a product from the Germany, which name is testo. Able to measure dust from 10 microns down to 2.5 microns through the principle of Impactor-Oscillating Crystal-Principle. By using the principle of vacuuming through a nozzle using the principle of inertial impaction to obtain dust with a specified diameter. There are three main components:

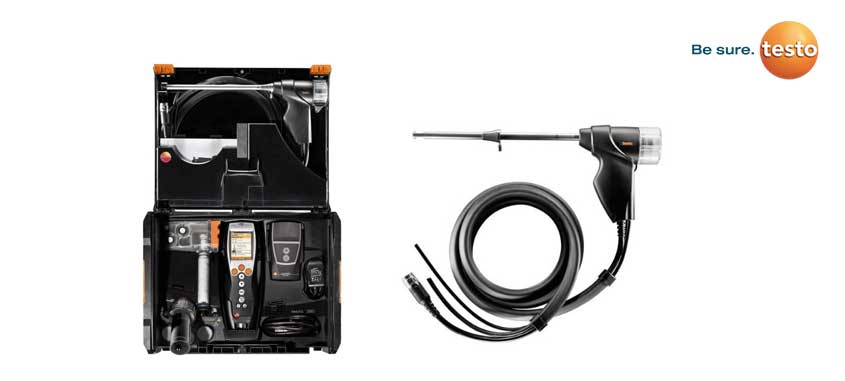

1) Testo 330-2 LL 2) Probe and 3) Measuring box. The testo 330-2 LL is also called Flue Gas Analyzer. It is used to measure a combustion efficiency. With the installation of sensors for measuring the amount of flue gases in the analyzer. Makes it possible to measure the amount of various flue gases. It consists of O2, CO2, CO and NO gases and can calculate the combustion efficiency of various devices.
| Technical data | |
| Measuring range | 0 to 300 mg/m³ |
| Accuracy | acc. VDI 4206-2 |
| Resolution | 0.1 mg/m³ (>5mg/m³) |
| Dimensions | 475 x 360 x 190 mm |
| Operating temperature | +5 to +40 °C |
| Housing | ABS |
| Protection class | IP40 |
| Display type | LCD |
| Display function | แสดงขั้นตอนการ warm-up เครื่องและความพร้อมในการปฏิบัติงาน |
| Power supply | ผ่านแหล่งจ่ายไฟหลักภายใน: 100 V AC/0.45 A ถึง 240 V AC/0.2 A (50 ถึง 60 Hz) |
| Maximum memory | 500,000 readings |
| Storage temperature | -20 to +50 °C |
| Weight | 7900 g |
