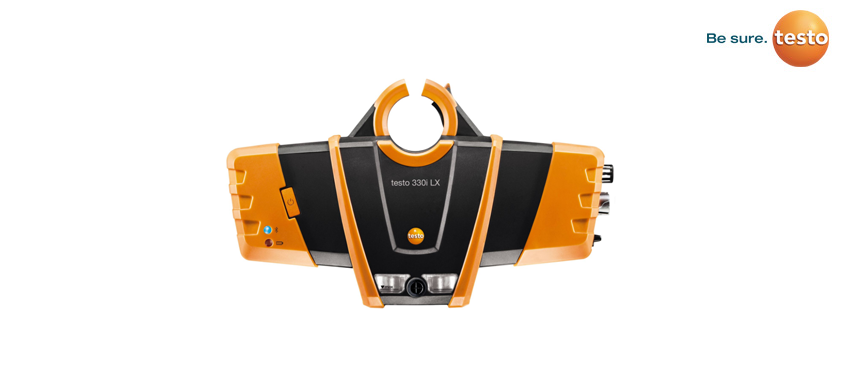

testo 330i – Flue Gas Analyzer
product Descriptions
The testo 330i flue gas analyzer is an advancement of the testo 330 LL flue gas analyzer. Its proven measuring technology is once again at the heart of the testo 330i. This means that you can rely on highly accurate results when measuring flue gas, draught and O2 supply air. The testo 330i also has the following impressive features:
User-replaceable long-life sensors with a service life of up to 6 years
Successful TÜV inspection according to the 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1-3
ntegrated draught and gas zeroing. This means that the probe does not have to be removed from the flue gas duct for the zeroing
Fresh air dilution up to 30,000 ppm upon exceeding a CO threshold value

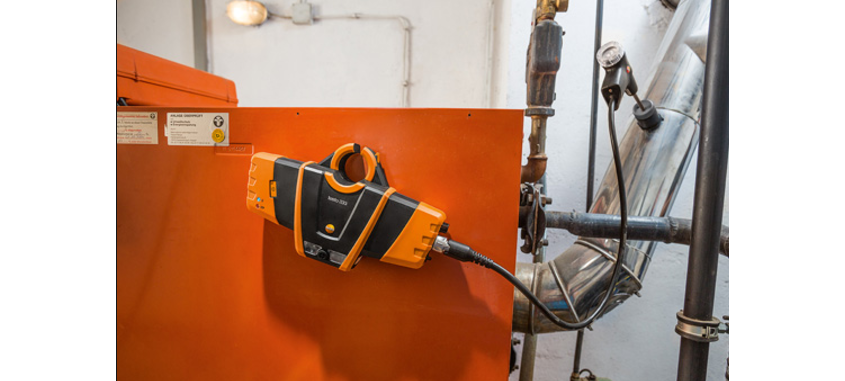

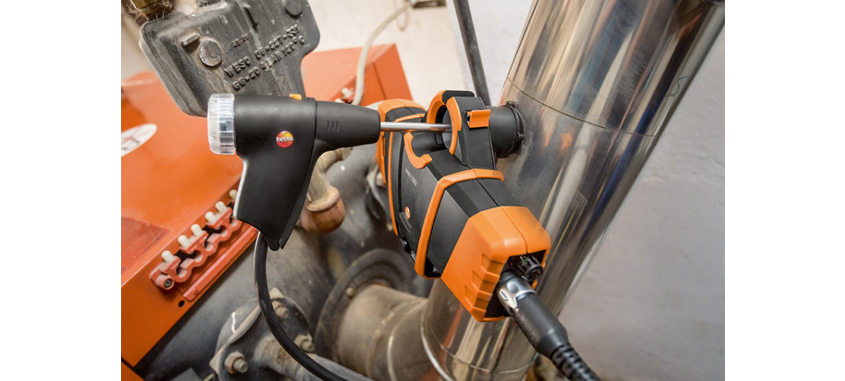

The new testoFix probe holder is available as an accessory, so the flue gas probe is guaranteed not to lose the centre of flow once it has been found. This can be attached to the pipe quickly and easily. It holds the probe in the centre of flow and also serves as a fall-proof suspension system for the testo 330i flue gas analyzer. Incidentally, the hose between probe and measuring instrument is lighter and more flexible than before.

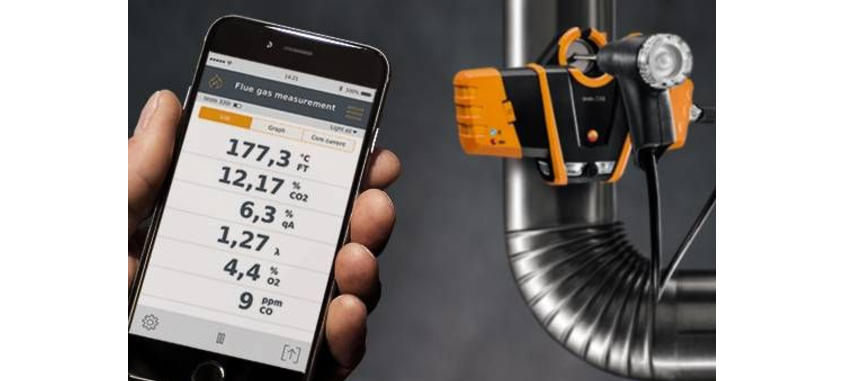

• On-site digital creation of reports with the testo 330i App
• Operation independent of measuring location – readings are always available when you need them
• testoFix probe holder (optional) – holds the probe in the centre of flow at all times
• Particularly robust, completely enclosed plastic housing
Proven technology meets revolutionary operation. The testo 330i flue gas analyzer was specifically developed to help you to overcome all the obstacles you meet when servicing and commissioning heating systems.
| Technical Data | |
| General technical data | |
| Weight | 720 g (excluding battery) |
| Dimensions | 270 x 160 x 57 mm |
| Operating temperature | -5 to +45 °C |
| Power supply | Rech. batt. block 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A (optional) |
| System requirements | requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0 |
| Maximum memory | 500000 readings |
| Storage temperature | -20 to +50 °C |
| Differential Pressure – Piezoresistive | |
| Measuring range | 0 to 300 hPa |
| Accuracy | ±0.5 hPa (0.0 to +50.0 hPa) |
| ±1 % of mv (+50.1 to +100.0 hPa) | |
| ±1.5 % of mv (Remaining Range) | |
| Resolution | 0.1 hPa |
| Flue gas O₂ | |
| Measuring range | 0 to 21 Vol.% |
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
| Flue gas O₂ | |
| Measuring range | 0 to 21 Vol.% |
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
| CO determination (without H₂-compensation), automatic dilution | |
| Measuring range | 0 to 15000 ppm |
| Accuracy | ±200 ppm or ±20 % of mv (0 to 15000 ppm) |
| Resolution | 1 ppm |
| Flue gas NO | |
| Measuring range | 0 to 3000 ppm |
| Accuracy | ±5 ppm (0 to 100 ppm) |
| ±5 % of mv (101 to 2000 ppm) | |
| ±10 % of mv (2001 to 3000 ppm) | |
| Resolution | 1 ppm |
