testo 330-LL เครื่องวัดประสิทธิภาพการเผาไหม้

Product Descriptions

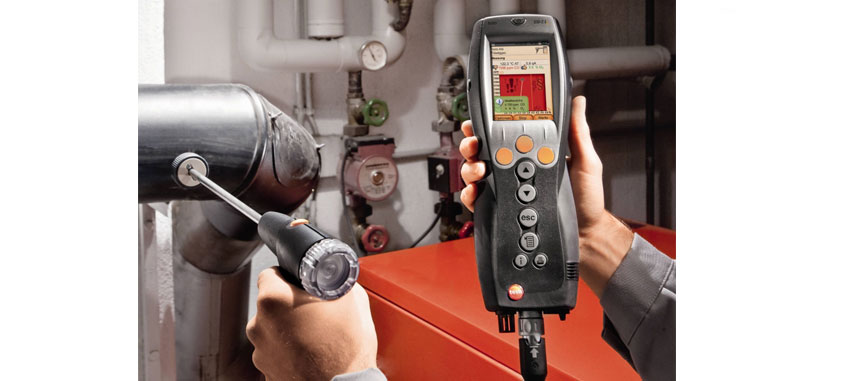

The testo 330 LL is the professional flue gas analyzer. It fulfils the highest demands and can cope with all measurement tasks on heating systems. Multiple countryspecific measurement menus are stored in the instrument. It is possible to select from an extensive program of flue gas probes, which often replaces an additional measuring instrument. Other fuels can be defined by the user as desired. Apart from this, gas pipe tests or solid fuel measurement can also be carried out with the testo 330 LL.

The high-quality instrument is especially excellent thanks to the successful combination of outstanding sensor technology, long life and security. It has three high-quality measuring cells for O₂, CO and NO (optional) as well as a temperature probe integrated into the flue gas probe for the direct measurement of temperature, O₂, CO and NO. The abbreviation „LL“ stands for „Longlife“. The sensors of the instrument series testo 330 LL have an extended lifetime of
up to 6 years. At least one O₂ and CO sensor replacement can be saved in the course of the typical working life.
–  Many measurement menus for analyses on heating systems, incl. solid fuel and gas pipe test menus
– Integrated sensor monitoring
– 4 years‘ warranty without maintenance contract
– Dilution up to 30,000 ppm CO (testo 330-2 LL)
– Zeroing in flue possible (testo 320-2 LL)
– High-resolution colour graphic display
– Logger function (up to 2h continuous measurement value recording)
– TÜV-tested according to EN50379, Parts 1-3
