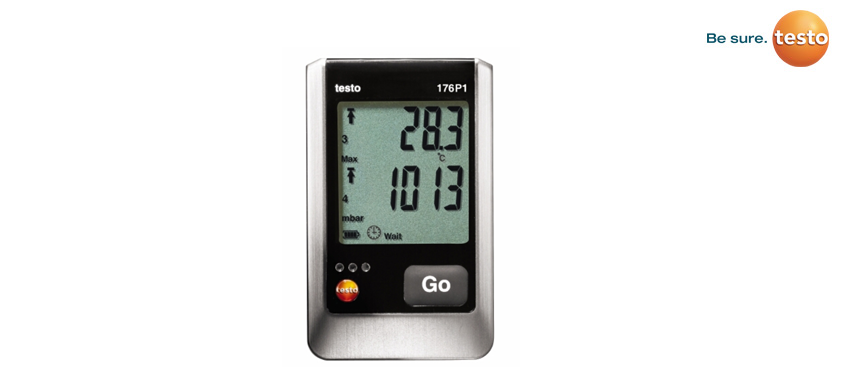

testo 176 P1 – Data Logger
Product Descriptions

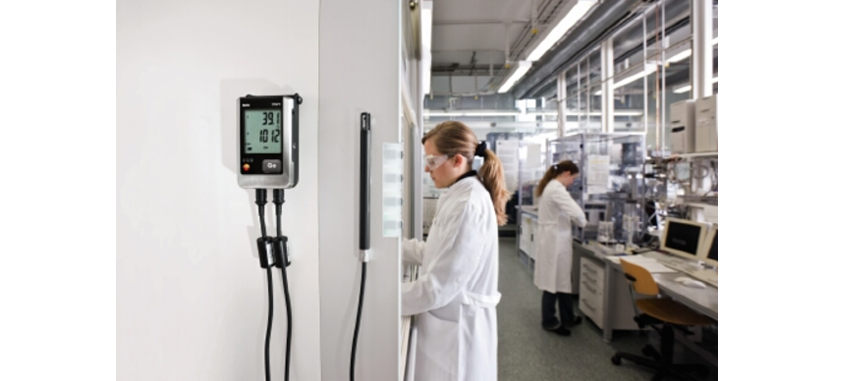

When ambient conditions need to be documented extremely accurately and securely, for example in a laboratory, the testo 176 P1 is the right data logger. It has an internal absolute pressure sensor and connection possibilities for two external temperature/humidity probes.
An integrated dewpoint calculation makes it universally applicable. The free ComSoft Basic software allows fast programming and easy data analysis.
testo 176 P1, 5-channel pressure, temperature and humidity data logger
| Technical Data | |
| Temperature – NTC | |
| Measuring range | -20 to +70 °C |
| Accuracy | ±0.2 °C (-20 to +70 °C) |
| ±0.4 °C (Remaining Range) | |
| Resolution | 0.1 °C |
| Humidity – Capacitive | |
| Measuring range | 0 to 100 %RH* |
| Accuracy | dependent on probe selected |
| Resolution | 0.1 %RH |
| Absolute Pressure | |
| Measuring range | 600 to 1100 mbar |
| Accuracy | ±3 mbar (0 to +50 °C) |
| Resolution | mbar |
| General technical data | |
| Dimensions | 103 x 63 x 33 mm |
| Operating temperature | -20 to +70 °C |
| Protection class | IP54 |
| Channels | 4 external; 1 internal |
| Product colour | Black |
| Product-/housing material | ABS + PC |
| Measuring rate | 1 s to 24 h |
| Battery type | 1 x Lithium (TL-5903) |
| Battery life | 8 years at 15 min. meas. rate |
| Memory | 2,000,000 measuring values |
| Storage temperature | -40 to +85 °C |
| Weight | 218 g |
