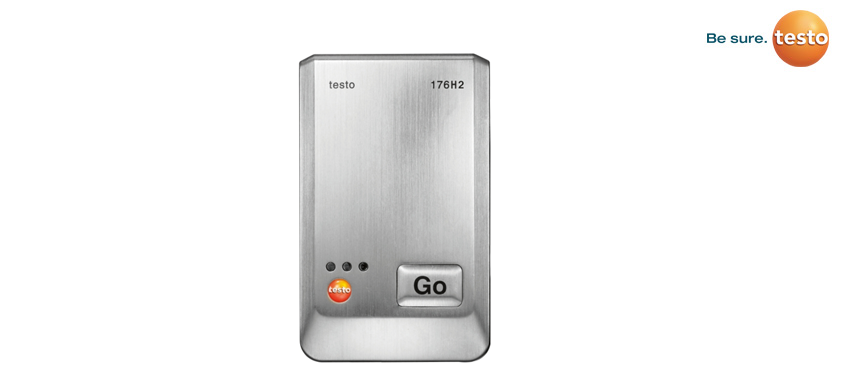

testo 176 H2 Climate data logger for humidity and temperature
Product Description
Do your short-term measurements reveal no irregularities? Yet the ambient building or storage conditions still do not meet the designated requirements? The testo 176 H2 is the perfect data logger for analyzing precise climatic development using long-term measurements.

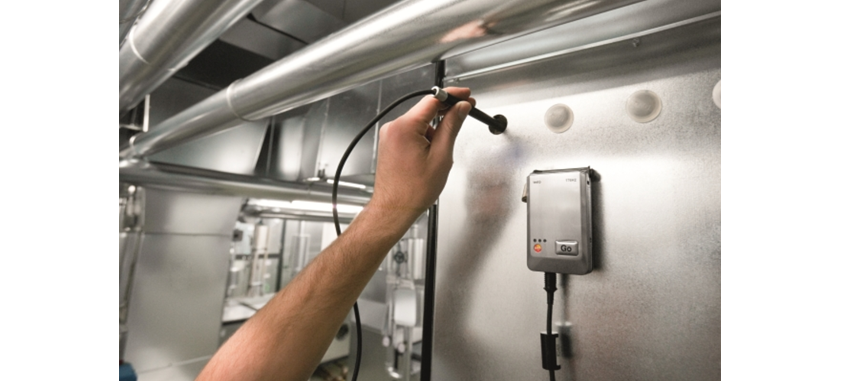

Two external humidity/temperature probes, which you can order when you purchase the climate data logger, can be attached to it. This will enable you to measure temperature and humidity at two different points simultaneously.
With its large measurement data memory (up to 2 million readings can be recorded) and its long battery life (up to 8 years), the data logger is the ideal instrument for the long-term recording of climate data.
• Measure humidity and temperature on two channels thanks to its two connections for external sensors
• Memory for up to 2 million readings, up to 8 years’ battery life
• Robust metal housing and protection against dust and water jets in compliance with protection class IP 65
• Three software versions are available for measurement data analysis on the PC, basic software can be downloaded free of charge
The robust metal housing of the non-sensitive testo 176 H2 climate data logger protects it against mechanical impacts. It can therefore measure temperature and humidity even in harsh environmental conditions.
Technical Data | |
Temperature – NTC | |
Measuring range | -20 to +70 °C |
Accuracy | ±0.2 °C (-20 to +70 °C) ±1 Digit |
±0.4 °C (Remaining Range) ±1 Digit | |
Resolution | 0.1 °C |
Humidity – Capacitive | |
Measuring range | 0 to +100 %RH* |
Accuracy | dependent on selected probe |
Resolution | 0.1 %RH |
* Not for condensing atmospheres | |
General technical data | |
Weight | 430 g |
Dimensions | 103 x 63 x 33 mm |
Operating temperature | -20 to +70 °C |
Product-/housing material | Metal housing |
Protection class | IP65 |
Channels | 4 external |
Connectable probes | 2 x humidity probe |
Product colour | silver |
Standards | EU-guideline 2014/30/EU; 2011/65/EU |
Measuring rate | 1 s to 24 h; 2 s to 24 h (online measurement) |
Battery type | 1 x Lithium (TL-5903) |
Battery life | 8 years at 15 min. meas. rate, +25 °C |
Interface | mini usb, SD card slot |
Memory | 2,000,000 measuring values |
Storage temperature | -40 to +85 °C |
