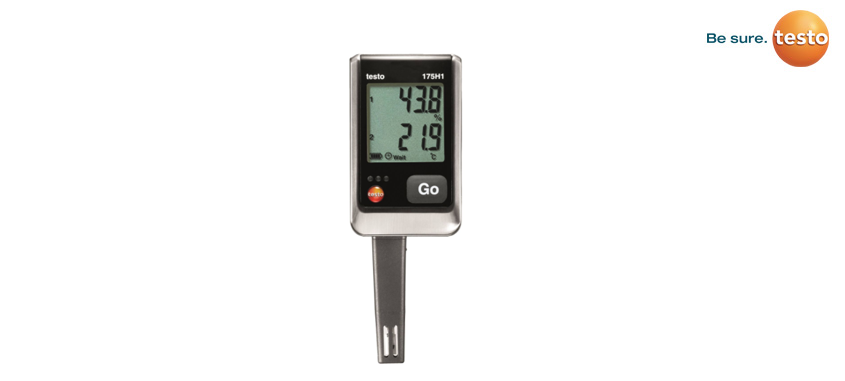

testo 175-H1 Temperature data logger
Product Description

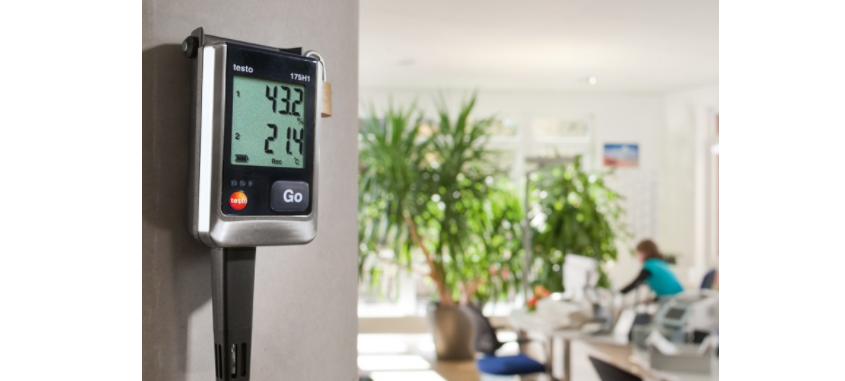

The testo 175 H1 data logger measures, monitors and logs the temperature and relative humidity in buildings and closed rooms. The logger comes with an external humidity sensor (stub) for shorter reaction times and a lock to prevent it from being easily stolen or tampered with.
In addition to the current temperature and humidity values, the logger can also log and display dew point values. Other information including adjustable threshold values, breached thresholds and remaining battery power can also be read off the large, clear display.
• Shorter reaction times and accurate measurements with external humidity sensor
• Round-the-clock monitoring and logging of temperature, relative humidity and dew point
• Super-size memory for long-term measurements and up to 1 million readings, battery life 3 years
• Free software download (ComSoft Basic)

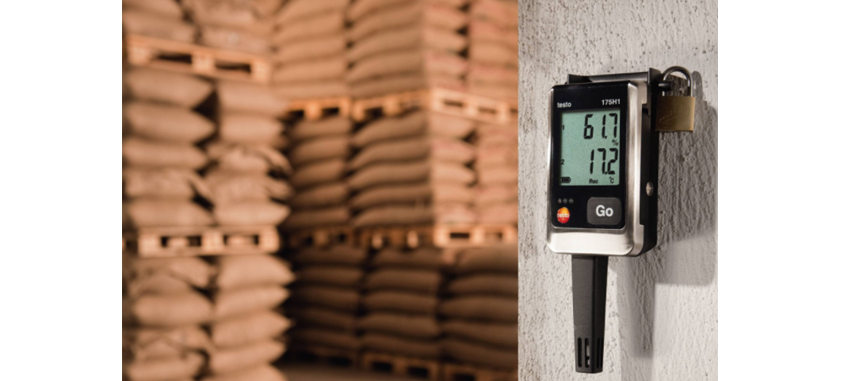

Saving energy, archiving, storing goods, creating a comfortable indoor climate – if you can’t analyze the temperature and humidity, you won’t get optimal results. The testo 175 H1 is designed to carry out reliable long-term measurements and log these crucial values for you.
Technical Data | |
Temperature – NTC | |
Measuring range | -20 to +55 °C |
Accuracy | ±0.4 °C (-20 to +55 °C) ±1 Digit |
Resolution | 0.1 °C |
Humidity – Capacitive | |
Measuring range | 0 to 100 %RH* |
Accuracy | ±2 %RH (2 to 98 %RH) at +25 °C |
±0.03 %RH/K ±1 Digit | |
< ±1 %RH / year drift at +25 °C | |
Resolution | 0.1 %RH |
* Not for condensing atmospheres. | |
Dewpoint (calculated) | |
Measuring range | -40 to +50 °Ctd |
Accuracy | +0.03 %RH/K ±1 Digit |
General technical data | |
Weight | 130 g |
Dimensions | 149 x 53 x 27 mm |
Operating temperature | -20 to +55 °C |
Product-/housing material | Plastic |
Protection class | IP54 |
Channels | 2 internal |
Product colour | Black |
Life-time sensor | Long-term drift of the sensor <1% RH / year (ambient temperature + 25 ° C) |
Standards | EU-guideline 2014/30/EU; 2011/65/EU |
Measuring rate | 10 s – 24 h |
Battery type | 3 x AIMn type AAA or Energizer |
Battery life | 3 years at 15 min. meas. rate, +25 °C |
Interface | mini usb, SD card slot |
Memory | 1,000,000 measuring values |
Storage temperature | -20 to +55 °C |
