testo 174T BT – Mini temperature data logger with Bluetooth
Descriptions

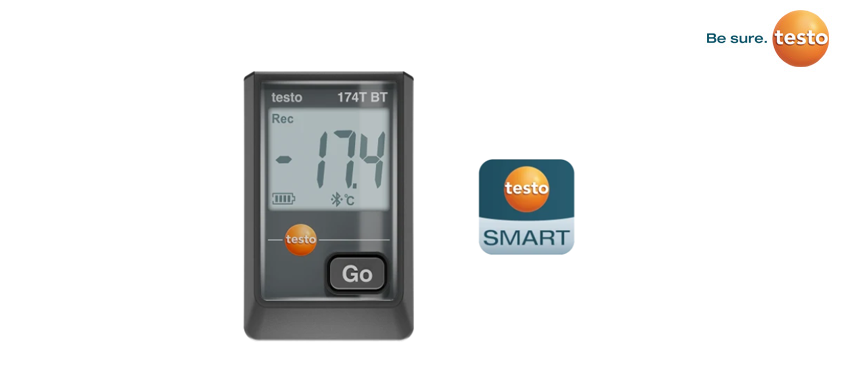

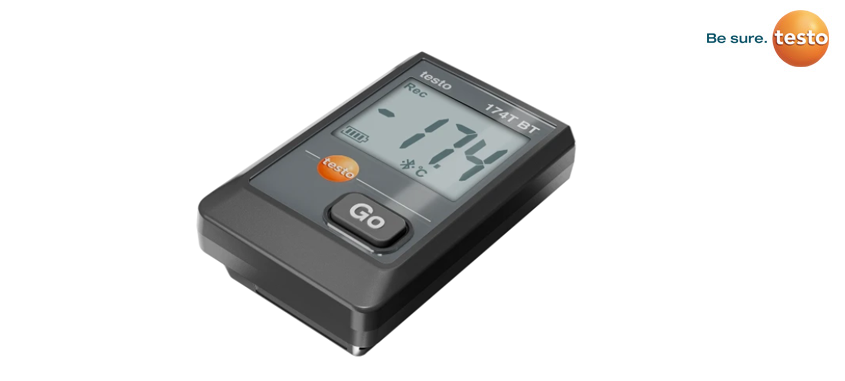

testo 174 T BT – Mini temperature data logger with Bluetooth® and app connection
The testo 174 T BT mini data logger is ideal for efficient commissioning, inspection and maintenance of all HVAC/R systems, as well as for convenient fault diagnosis and monitoring of the indoor climate. It reliably measures indoor temperatures in the measuring range -30 °C to +70 °C and offers simple and intuitive configuration and analysis of measurement data via the free testo Smart App. The app enables complete documentation and compliance with regulations through functions such as reporting and data export. Thanks to the Bluetooth connection, you can read data directly at the measuring point from up to 30 metres away. It also provides automatic data backup when the battery is low or during a battery change to ensure measurement reliability.
Your advantages
• Free app including report generation and export function

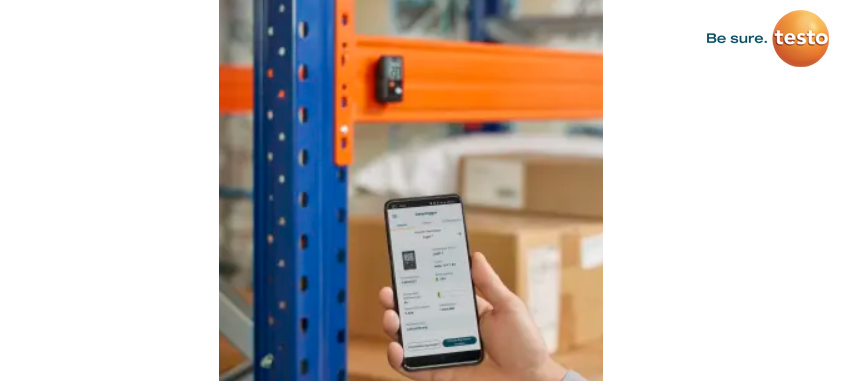

• Simple data analysis via Bluetooth directly at the measuring point from up to 30 metres away
• Accurate indoor humidity and temperature measurement from -30 °C to +70 °C
• Reliable automatic data backup when the battery is empty or when changing the battery
| Technical data | |
| Temperature – NTC | |
| Measuring range | -20 to +70 °C |
| Accuracy | ±0.5 °C (-20 to +70 °C) |
| Resolution | 0.1 °C |
| General technical data | |
| Weight | 35 g |
| Dimensions | 60 x 38 x 18.5 mm |
| Operating temperature | -20 to +70 °C |
| Product-/housing material | Plastic |
| Protection class | IP65 |
| Channels | 1 internal |
| Product colour | Black |
| Standards | EN 12830; HACCP International; NSF |
| Measuring rate | 1 min – 24 h |
| Battery life | 500 days (15 min measuring cycle, +25 °C) |

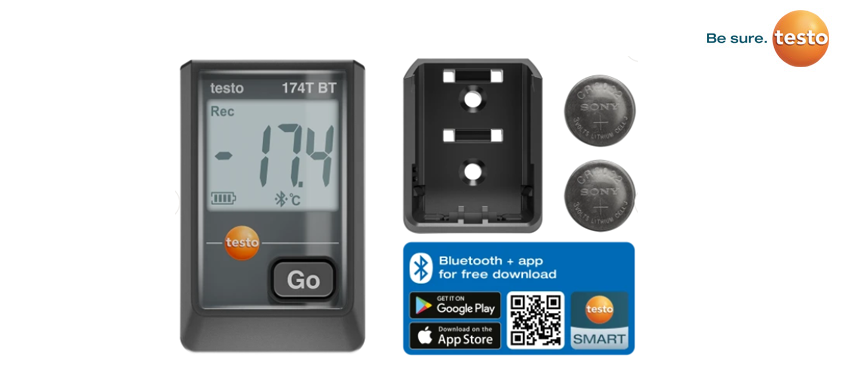

| Battery type | 2 lithium batteries (CR2032) |
| Memory | 16,000 measuring values |
| Storage temperature | -40 to +70 °C |
