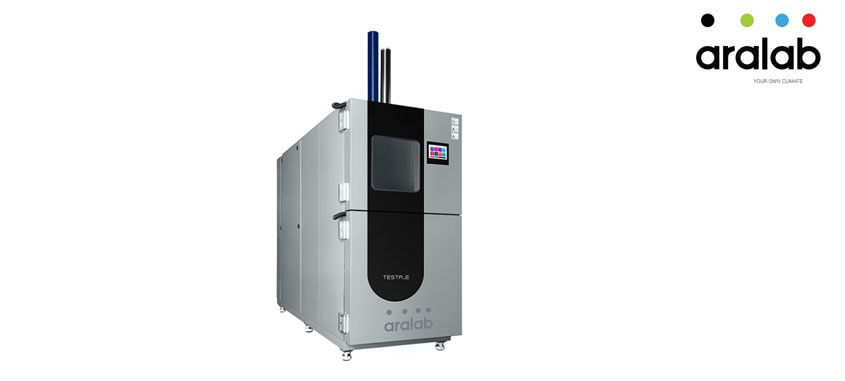

TESTA_e 120TS
Two-zone structure; samples can be exchanged in different temperature areas by rapidly moving the basket up and down. Applied tests: high temperature test, low temperature test, temperature change test, thermal shock test.
Two-zone structure; Samples can be exchanged in different temperature areas by rapidly moving the basket up and down.
Applied tests: high temperature test, low temperature test, temperature change test, thermal shock test.
EXTERNAL DIMENSIONS (MM)
2.510 x 1.000 x 2.500
INTERIOR DIMENSIONS (MM)
410 x 470 x 650
INTERIOR VOLUME (L)
ABOUT 120
TEST SYSTEM
2-ZONE BASKET MOVING UP AND DOWN DRIVEN BY AN ENGINE AND A SCREW
TEMPERATURE RANGE
+60ºC – 220ºC/ (20~85) ºC
STABILITY (ºC)
≥ 14ºC/ MIN
UNIFORMITY (ºC)
±1.5ºC
MOISTURE RANGE (LUZES ON / OFF)
(20~98%)RH / (10~98)ºC
STABILITY (%)
±2.0%RH(>75%), ±5.0%RH(≤75%)
