Shake Table II XY

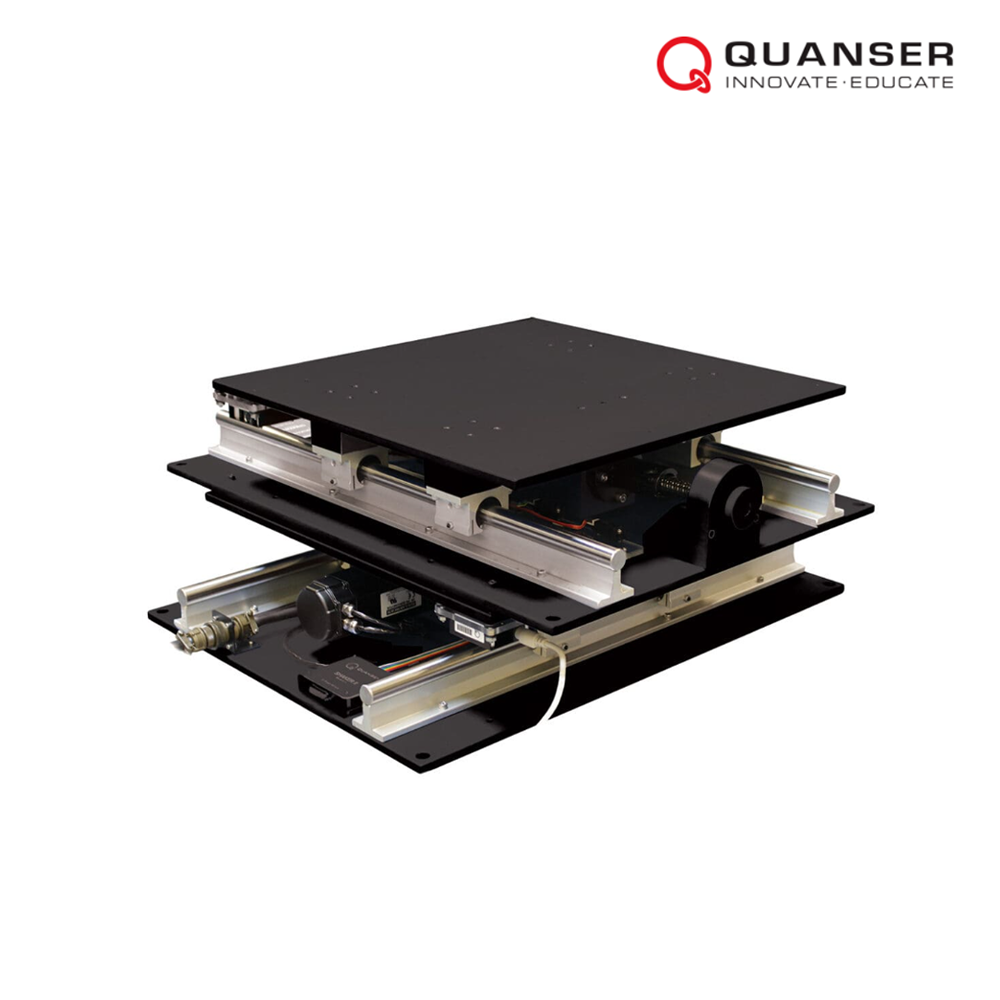

The Shake Table II XY consists of two single-axis Shake Table II units mounted perpendicularly on top of each other. Each stage can travel ±7.6 cm. Driven by powerful motors, the Shake Table II XY can achieve an acceleration of 2.5 g when loaded with a 7.5 kg mass.

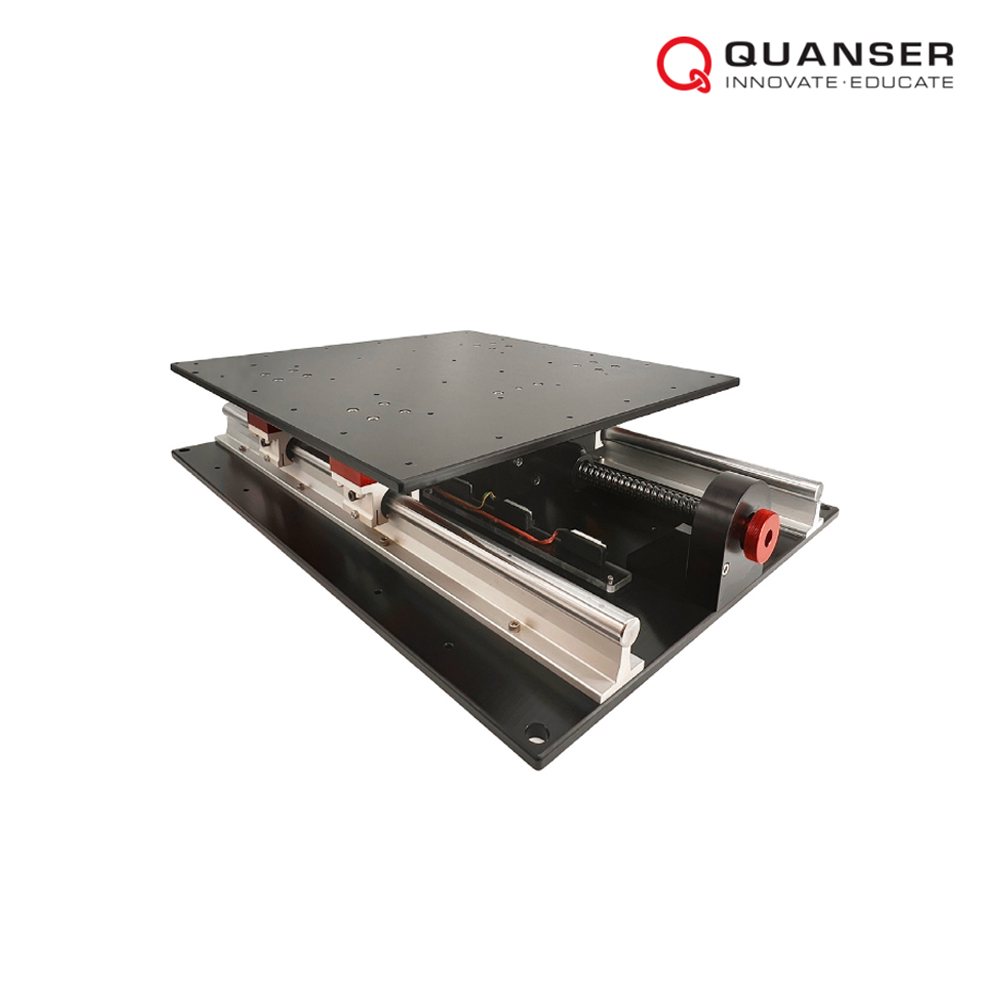

Furthermore, you can use the two Shake Table II from the XY configuration for other setups, i.e., serial and parallel, to support larger loads, or perform experiments with asynchronous excitation signals.
• Dual-axis operation
• Multiple setup variations (XY, Bridge Simulation)
• High-resolution encoders
• Cost effective
• Easy integration of user-built structures, third-party sensors and actuators
• Control using standalone Shake Table software or with QUARC for MATLAB®/Simulink®
• Supports scaling and playback of earthquake data
• Integrated safety features and limits
| Dimensions (L x W x H) | 61 cm x 46 cm x 25.4 cm |
| Total mass | 54.4 kg |
| Payload area (L x W) | 46 cm x 46 cm |
| Top axis mass | 95.22 kg |
| Bottom axis mass | 175.5 kg |
| Maximum payload at 1 g¹ (X-Axis, bottom) | 34.7 kg |
| Maximum payload at 2.5 g¹ (Y-Axis, top) | 7.5 kg |
| Maximum travel (X and Y) | ± 7.62 cm |
| Operational bandwidth¹ | 10 Hz |
| Maximum velocity (X and Y with 7.5 kg payload)¹ | 39.9 cm/s |
| Maximum acceleration (X-Axis, 34.5 kg payload)¹ | 1 g |
| Maximum acceleration (Y-Axis, 7.5 kg payload)¹ | 2.5 g |
| Lead screw pitch | 1.27 cm/rev |
| Servomotor power | 400 W |
| Amplifier maximum continuous current | 12.5 A |
| Motor maximum torque | 7.82 N.m |
| Lead screw encoder resolution (in quadrature) | 8192 counts/rev |
| Effective stage position resolution (in quadrature) | 1.55 μm/count |
| Accelerometer range | ± 49 m/s² |
| Accelerometer sensitivity | 1.0 g/V |
| ¹ Please contact Quanser for full operational bandwidth specifications. | |
• Structural Dynamics
• Earthquake Engineering
• Bandwidth curves
• Other control topics
To complete your Shake Table II XY workstation, you need two Shake Table II units, and additional components that are sold separately:
For Simulink
• QUARC add-on for MATLAB®/Simulink®
• 2x Quanser AMPAQ-PWM amplifier
• One of the following DAQ device options:
– 2x Quanser Q8-USB
– 2x Quanser QPIDe
