Shake Table I-40
Desktop simulator for structural dynamics modelling and control
The Quanser Shake Table I-40 is an open architecture bench-scale single-axis earthquake simulator ideal for teaching structural dynamics and control, earthquake engineering and other control topics related to civil engineering. With pre-loaded acceleration profiles of real earthquakes, such as Northridge and El-Centro, students can study their effects on buildings, bridges and various materials.

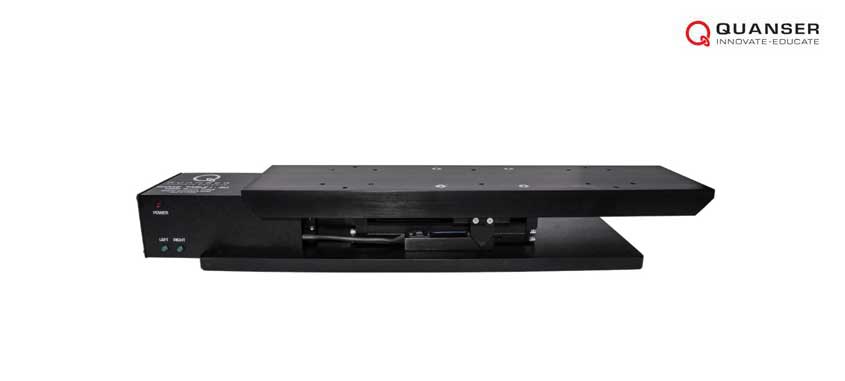

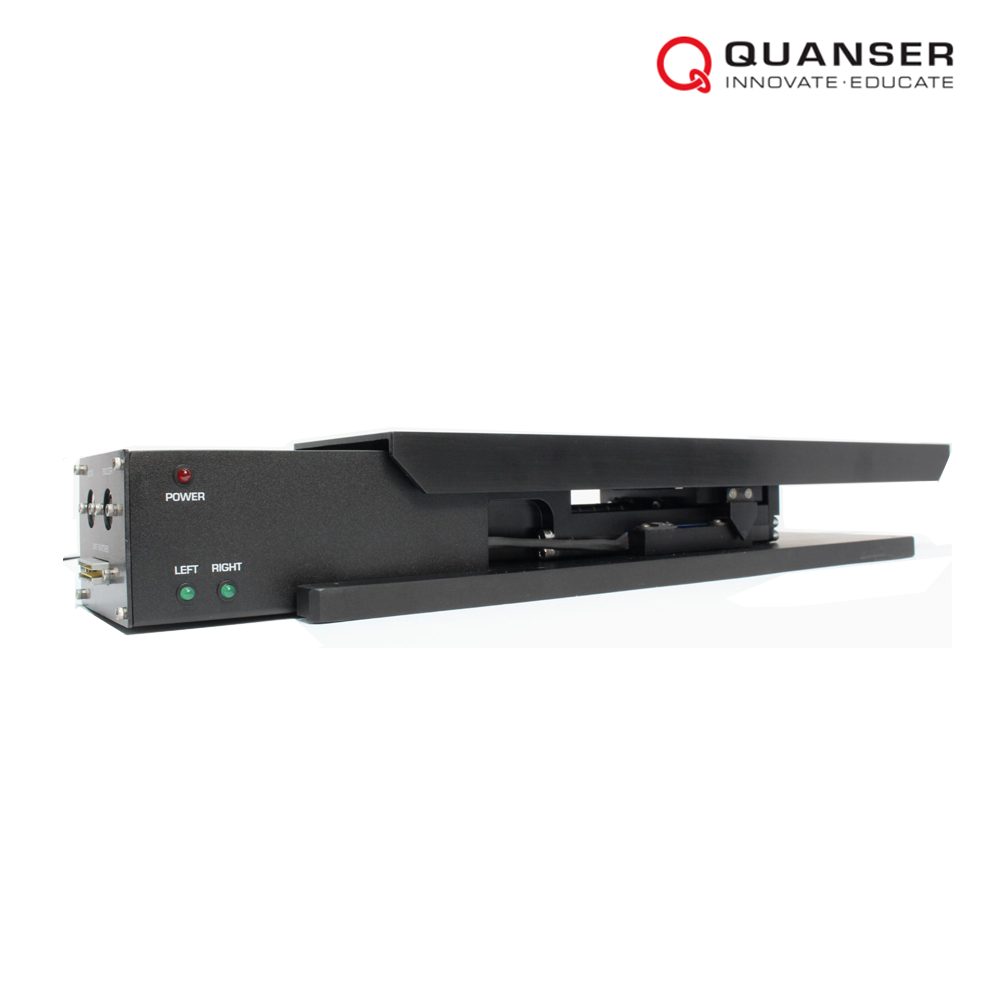

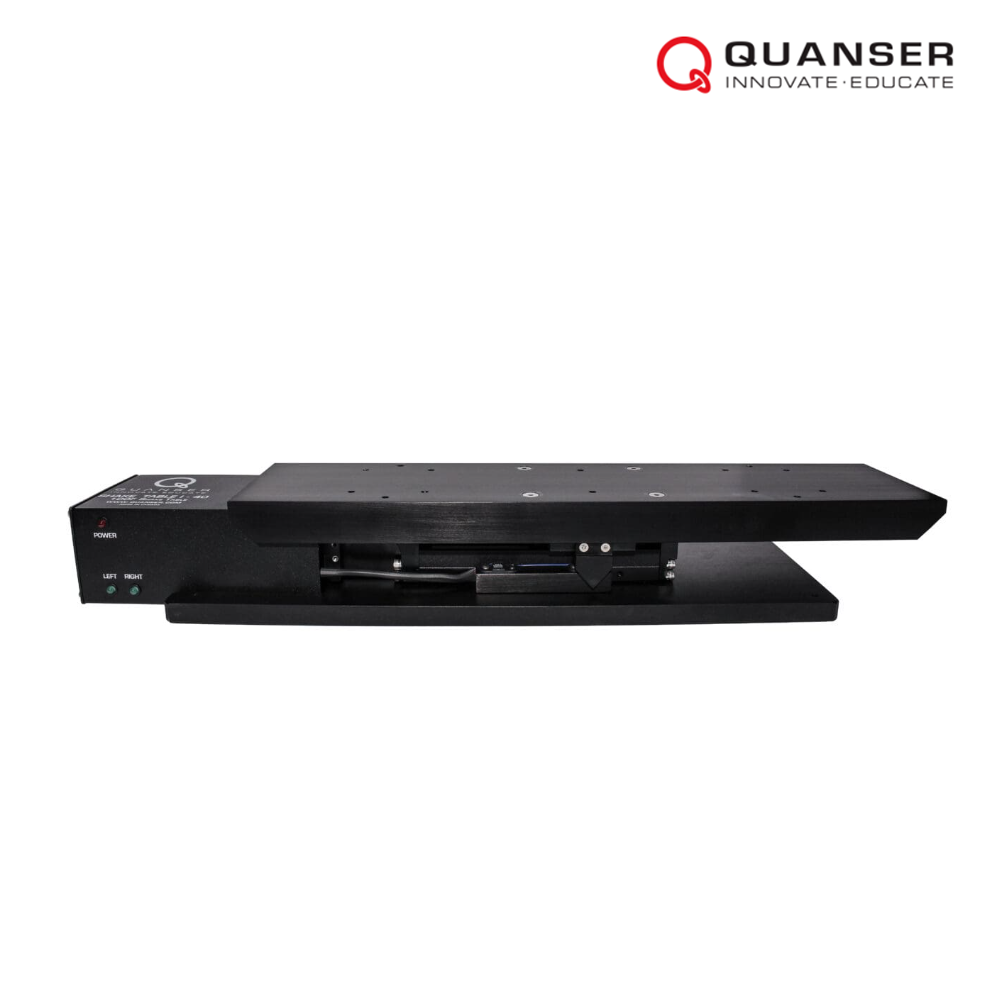

The Shake Table I-40 consists of a stage mounted on a high-quality, low backlash linear guide with a total travel of 40.0 mm and is driven using a ball-screw drive mechanism. Using the high torque direct drive motor, the stage loaded with a 1.5 kg mass can be accelerated up to 1.0 g. The high-resolution encoder enables the system to obtain a linear stage position resolution of 1.22 μm.
• Compact, portable, low maintenance
• Precise and accurate positioning using high-resolution encoder and low-backlash guide
• Ball-screw mechanism for robust actuation
• Standalone software operation using Shake Table I-40 software or highly-flexible operation and control design using
QUARC® for MATLAB®/Simulink®
• Integrated safety features and limits
| Dimensions (H x L x W) | 57.5 cm x 12.7 cm x 7.62 cm |
| Total mass | 5.88 kg |
| Payload area (L x W) | 43.2 cm x 10.2 cm |
| Maximum payload at 1.0 g¹ | 1.5 kg |
| Maximum travel | ± 20 mm |
| Operational bandwidth¹ | 10 Hz |
| Maximum velocity (with 1.5 kg payload)¹ | 41.7 cm/s |
| Maximum acceleration (with 1.5 kg payload)¹ | 1 g |
| Lead screw pitch | 10 mm/rev |
| Servomotor power | 70 W |
| Amplifier maximum continuous current | 3 A |
| Motor maximum torque | 3.53 N.m |
| Lead screw encoder resolution | 8192 counts/rev |
| Effective stage position resolution | 1.22 μm |
| ¹ Please contact Quanser for full operational bandwidth specifications | |
• Modeling and transfer function representation
• PID control
• Bandwidth curves
The following additional components are required to complete your workstation, and are sold separately:
For Simulink
• QUARC® add-on for MATLAB®/Simulink®
• Quanser VoltPAQ-X1 linear voltage amplifier
• One of the following DAQ devices:
Quanser Q2-USB
Quanser Q8-USB
Quanser QPIDe
For LabVIEW
• Quanser Rapid Control Prototyping (Q-RCP) Toolkit® add-on for NI LabVIEW™
• Quanser VoltPAQ-X1 linear voltage amplifier
• One of the following DAQ devices:
Quanser Q2-USB
Quanser Q8-USB
Quanser QPIDe
