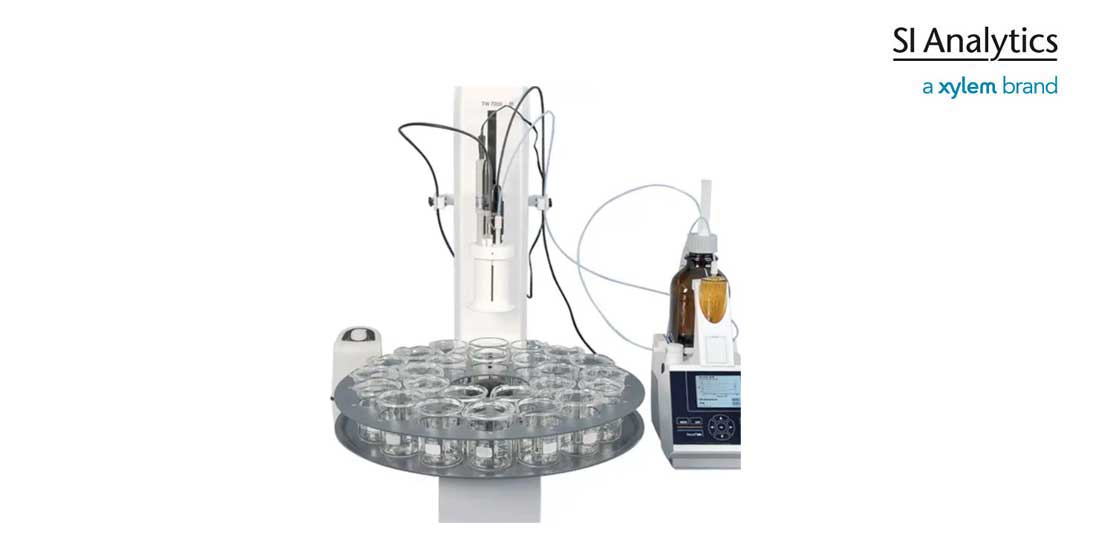

Sample changer for titration : TW 7200
Product Descriptions
Rotary Sample Changer for piston burettes and automatic titrators | SI Analytics
The number of samples to be processed is growing constantly while at the same time the demands on reliability are increasing in accordance with GLP and ISO standards. The SI Analytics Sample Changer (TW 7200) helps you meet these increased requirements and free up highly qualified employees from routine work.
Depending on your application, the Sample Changer from SI Analytics can be customised with sample trays of varying size as well as a rinsing pump. Sample trays are available with 12, 16, 18, 24, and 48 positions for accommodating sample vessels with a diameter of 28-82mm.
The Sample Changer (TW 7200) is controlled by your PC (not supplied) and SI Analytics’ TitriSoft software (sold separately). The TitriSoft titration software is the optimum solution for your titration tasks. The software supports your daily work procedures during sample preparation, titration and evaluation of results.
Key features
• Titration heads and sample trays can be easily changed
• Interchangeable Sample trays (12 – 48 positions)
• Stirring from below is possible with the two built-in magnetic stirrers or from above with an optional rod stirrer (propeller stirrer)
• The size of the sample tray is set in TitriSoft
• Built-in horizontal titration head motor for positioning in another sample row
• Connection of two pumps (diaphragm and peristaltic pumps) for rinsing of the electrodes and titration tips and for the suction of the sample
• pH electrode calibration can be done on the sample changer
| Specifications | |
| Interfaces | 2 × RS-232-C, 1 x I/O, 2 x pumps, 1 x stirrer, |
| 1 USB-A (Update only), 1 USB-Mini-B (PC), 1 x Ethernet | |
| Housing Material | Housing made of two-component- coated ALU, steel sheet, and epoxy resin |
| Sample tray: aluminum powder coated | |
| Dimesnions | Basic unitt: 143 x 620 x 505 mm (W x H x D) |
| Sample tray: 450 mm | |
| Weight | 10,3 Kg Examples with sample trays |
| 10,3 Kg Examples with sample trays | |
| Sample tray with 24 beaker glasses 50 ml: approx 2.4 kg | |
| Sample tray with 24 reaction vessels: approx.6.3 kg | |
| Ambient conditions | Ambient temperature: + 10 … + 40 °C for operation and storage |
| Humidity according to EN 61 010, Part 1: max. relative humidity 80 % | |
| for temperatures up to 31 °C, linear decrease down to 50 % relative | |
| humidity at a temperature of 40 °C | |
| Power supply | 115 – 240 V~, 50/60 Hz, 30 VA |
| Magnetic stirrer | 2 fixed magnetic stirrrers |
| Horizontal motor | Horizontal motor for driving a second sample beaker row |
| Sample trays | From 12 – 48 positions |
