Safety Ball S2B-300
Product Descriptions
S2B 300, a novel, multifunctional smart gas detector, offers its users various means of use in many ways.

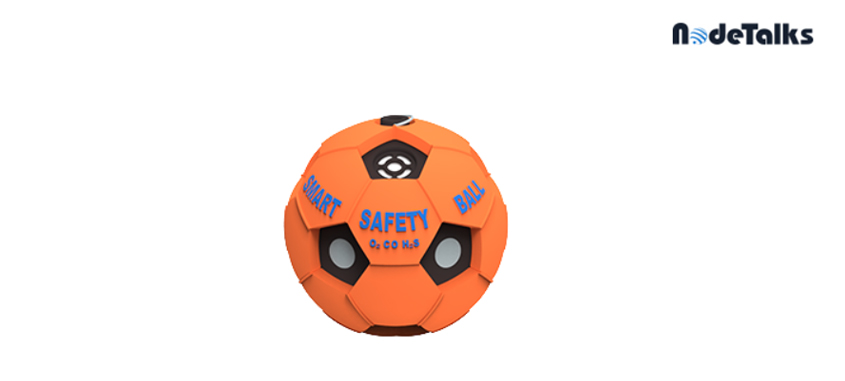

The Smart Safety Ball S2B 300, a first-time-ever ball-shaped composite gas detector, which has been developed through the research collaboration with POSCO. It was created light and small. Using the smartphone app, users can check the real-time gas density and quickly respond to and prevent the spread of any accidents/dangerous situations in case of emergencies.
Distinct Advantages
• Always on : Continuous operation for 2 years
• Portable : Compact and Light, Ball shape
• IoT : BLE(Bluetooth low energy) communication
• Disposable : Unnecessary to replace sensors or batteries(2years)
Features and Benefits
• Easy to carry
– ball shape(rollable before entering)
– a hook and magnet included
– very small and light
• Simple to use
– just “Button on” to use
– no need to charge or replace batteries
• Dedicated App(Android, IOS) to check
– simple and intuitive interface
– real time display of gas concentration
– contact list for text messages in emergency
– alarm histories(time, concentration, position)
– replacement time notification for sensors and batteries
– provision of various information about devices and usages
• Quick response to accidents in emergency
– Immediate situation sharing with co-workers
Model | Detecting Gases | ||
S2B-300 | Oxygen(O2) /Carbon monoxide (CO) /Hydrogen Sulfide (H2S) | ||
S2B-300 Specification | |||
Detecting Gases | Oxygen(O2) | Carbon monoxide(CO) | Hydrogen Sulfide(H2S) |
Detection Range | 0 ~ 25.0 % vol. | 0 ~ 500 ppm | 0 ~ 100 ppm |
Lifetime(year)* | 2 | ||
Response Time(T90) | 30s | 30s | 30s |
Resolution | 0.1 % | 1 ppm | 0.1 ppm |
Sensor Type | Electrochemica | ||
Detection Type | Diffusion | ||
Audible Alarm | 80 dB (at 10 cm) | ||
Visual Alarm | High brightness LED (RGB) | ||
Battery | 3.6V Li | ||
Operating Temperature | -20 ~ +50℃ | ||
Operating Humidity | 10 ~ 90% RH (without condensation) | ||
Explosion-proof | Ex ia IIC T4 Ga IP67 | ||
Dimension | 64mm (Ø) | ||
Weight | 100g (battery included) | ||
(*) Continuous operation assuming 2 minutes alarm per day after device activation |
