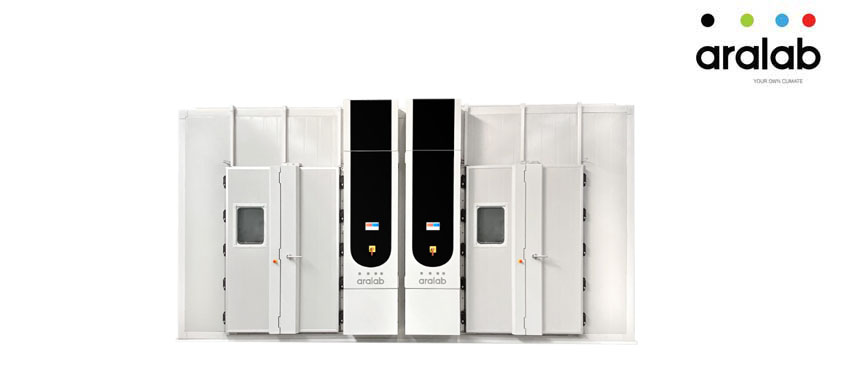

Psychrometric Test Chambers

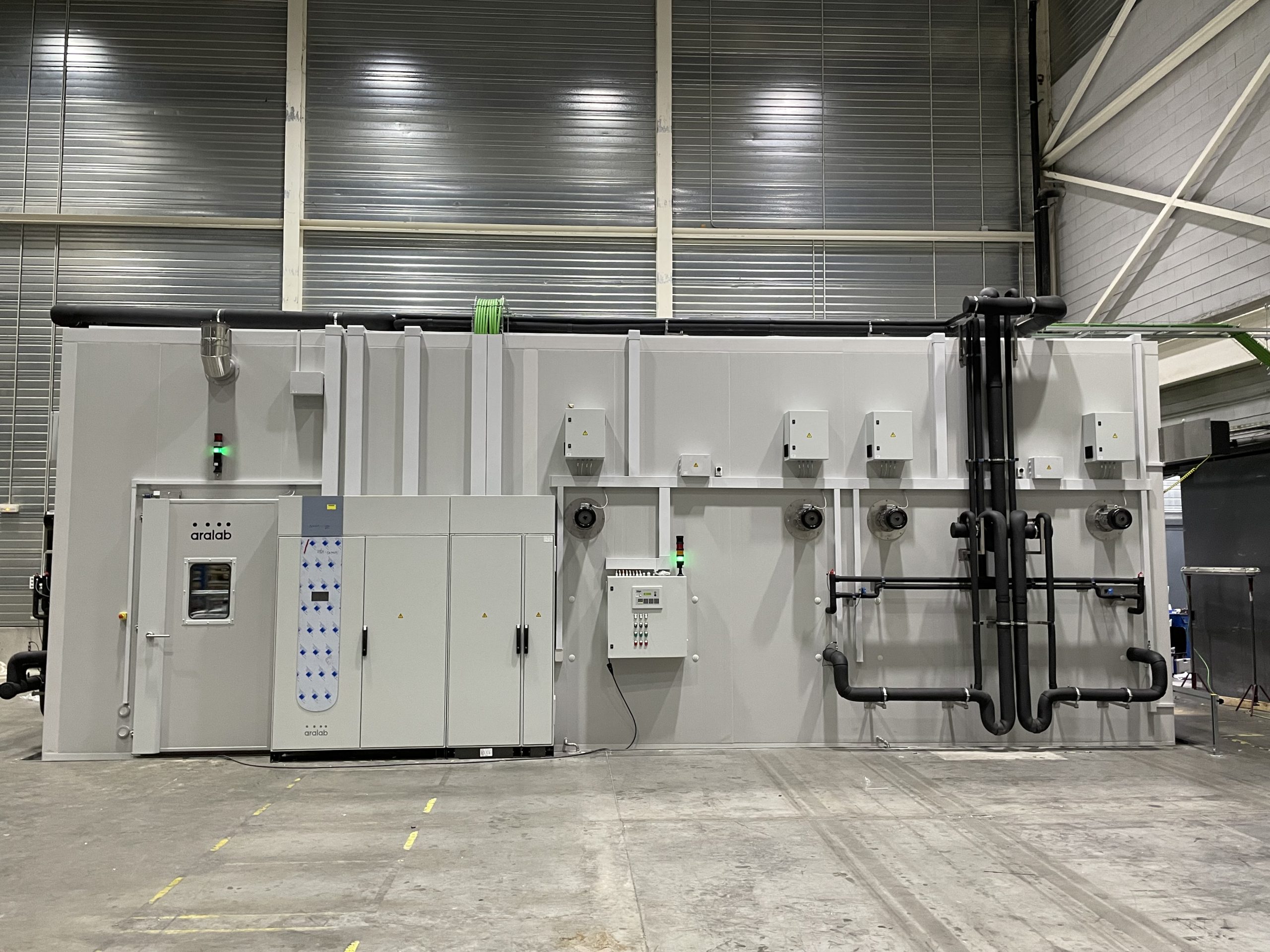

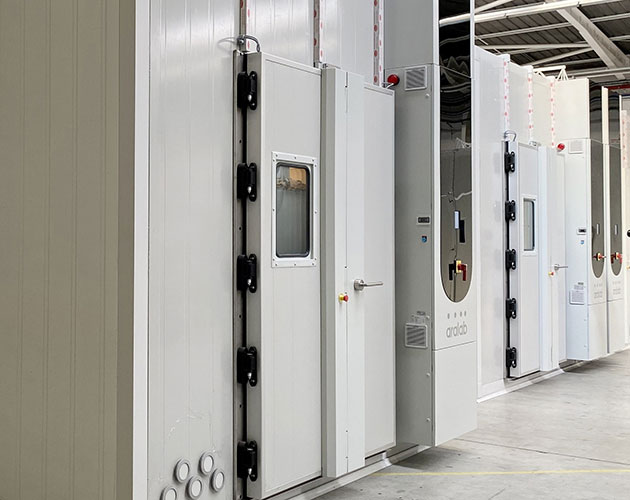

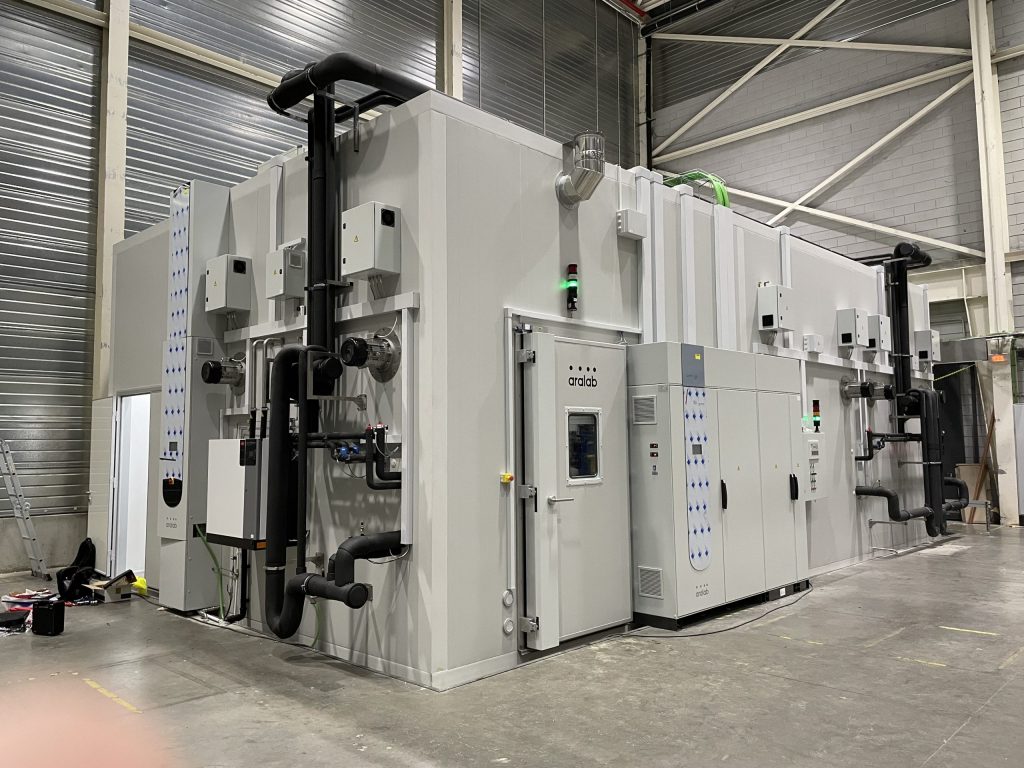

Environmental test rooms, designed for the development and performance evaluation of air conditioners, gas boilers and heat pumps. Usually installed in sets of two environmental chambers, allowing for precise Indoor and Outdoor climatic simulation. Also possible is the integration of third party enthalpic test tunnel.
Designed for the development and performance evaluation of air conditioners, gas boilers and heat pumps.
Simulating “Indoor” and “Outdoor” conditions with temperature, humidity and air flow independently controlled.
Available with ATEX protection features and accessories.
Related test standards:
DIN EN 14511 | DIN EN 14825 | DIN EN 16147
ISO 5151 | ISO 13253
JIS B 8615-1
ASHRAE 41.1 | ASHRAE 41.2 | ASHRAE 41.3 | ASHRAE 41.6
INTERNAL VOLUMES (LITERS)
300, 500, 1.000, 1.500 and 2.000
TEMPERATURE RANGES
FROM -20°C, -45°C and-75°C to+180°C
UNIFORMITY (°C)
± 0.1°C to ± 1.0°C
TEMPERATURE RATES OF CHANGE (°K/m)
Several options:
up to 5°K/m
5°K/m
10°K/m
HUMIDITY RANGE
10% TO 98% HR
UNIFORMITY (%)
±0.3%RH TO ±1,5%RH
