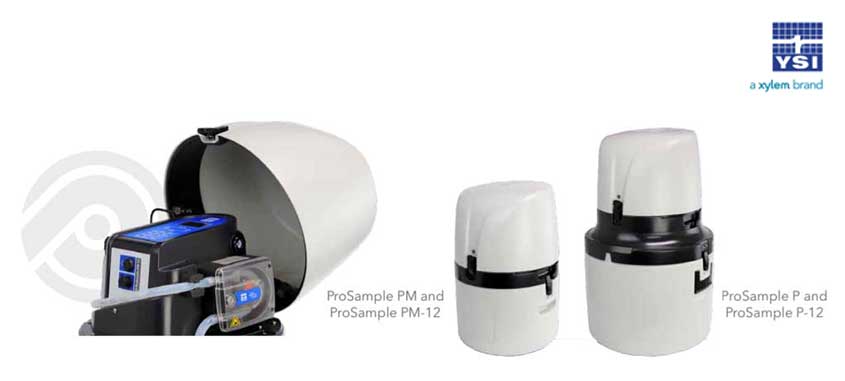

ProSample เครื่องเก็บตัวอย่างน้ำ
Product Descriptions
YSI’s ProSample portable samplers feature a proprietary peristaltic pump for highly accurate sampling in applications such as surface water, stormwater, and wastewater.
With multiple samplers to choose from and the ability to sample based on time, analog signal, digital pulse, and/or measurements from an SDI-12 device (P-12 and PM-12 models only), the ProSample can be the final piece of your monitoring installation.
• Flexible connectivity options, including SDI-12
• High sample volume accuracy
• Compact design for ease of portability
• Low-maintenance system, low cost of ownership
• Easy to learn, easy to use
| ProSample Specifications | |
| Pump type | Peristaltic |
| Accuracy | Single sample volume accuracy: +/-5% or +/-5 mL (whichever is greater) |
| within the sample volume range 20-10000 mL | |
| Range | Single sample volume range: 1-10000 mL |
| Suction height | Maximum 8.5 m (27.9 ft) at 1 atm with 10 mm ID suction hose |
| Fluid delivery speed | >0.61 m/s at suction height up to 7 m with 10 mm ID suction hose |
| Sampler housing | PE (polyethylene); double-walled and insulated for longer ice retention |
| Dimensions (D x H) | P and P-12 = 50 x 74 cm |
| PM and PM-12 = 40 x 60.5 cm | |
| Weight | P and P-12 = 15 kg |
| PM and PM-12 = 9 kg | |
| Suction hose | Maximum allowable length is 30 meters |
| ID of YSI suction hoses is 10 mm | |
| Bottles | ProSample P and ProSample P-12 – Discrete or composite sampling |
| • PE: 24 x 1 L, 8 x 2L, 4 x 4 L, 1 x 26 L | |
| • Glass: 24 x 350 L, 12 x 950 mL, 8 x 2L | |
| ProSample PM and PM-12 – Composite sampling only | |
| • PE: 1 x 10L (included with each PM and PM-12) | |
| Memory | Up to 3000 entries; non-volatile data memory for up to 5 years |
| Stores sampling and error data, bottle changes, messages, external signals | |
| Inputs | Analog 0/4-20 mA, Digital, SDI-12 (P-12 and PM-12 only) |
| USB port | Mini-B USB for PC connection |
| PC software | YSIConnect PC software for controlling the sampler and downloading data (not required) |
| Programming | 12 user-defined programs |
| Operating Temperature | 0 to 50 °C |
| Sample Temperature | 0 to 40 °C |
| Power | 12 V/ 7.2 Ah lead storage battery (maintenance free, leak proof) |
| 115V or 230V operation by means of battery charger | |
| LED | Indicates if a program is running, an error has occurred, or low battery |
| Display | Backlit graphic display; 6.5 cm width x 3.2 cm height |
| Certifications, Standards | CE, ISO 5667-10, EN 16479 |
| Warranty | 1 year on all ProSample models |
