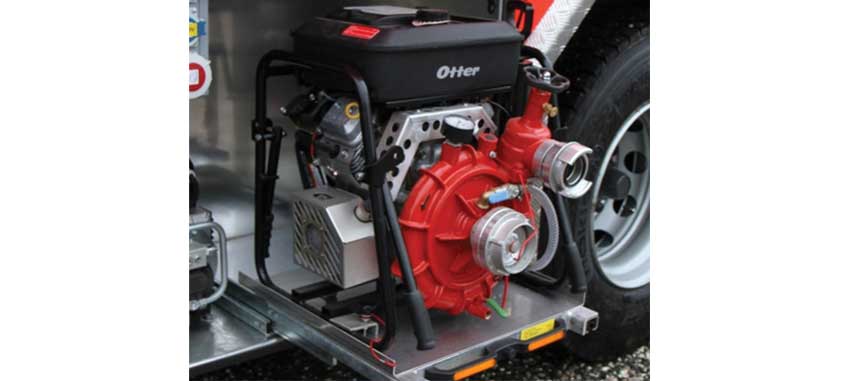

Portable Fire Pump : Model Otter

Description
The portable pump OTTER is certified as PFPN 6-500 according to EN14466:2005. The robust aggregate
convinces with less weight, compact measurements and simple operation.
Benefits
Performance
– Maximum output of 500 l/min at 6 bar (132 gal/min
at 87 psi) through high efficiency of the pump
Efficient pump
– Curvilinear impeller, stator and spiral housing
– Shaft sealing via maintenance-free axial face seal
Reliable engine
– Briggs & Stratton 2-cylinder 4-stroke engine
– air cooled
– reliable starting behavior
– forced feed lubrication
– contactless transistor ignition
Carrying frame
– Tubular carrying frame with four fold-down, plasticsheathed handles
– surrounding carrying frame
Safe to operate
– high reliability
– maintenance and service-friendly
– insensitivity to dirt
Convenient operation
– carrying comfort through less weight
– folding handles
Economical
– low fuel consumption
Rapid suction
– rapid suction up to 7.5 m (295 in) with manual piston pump
