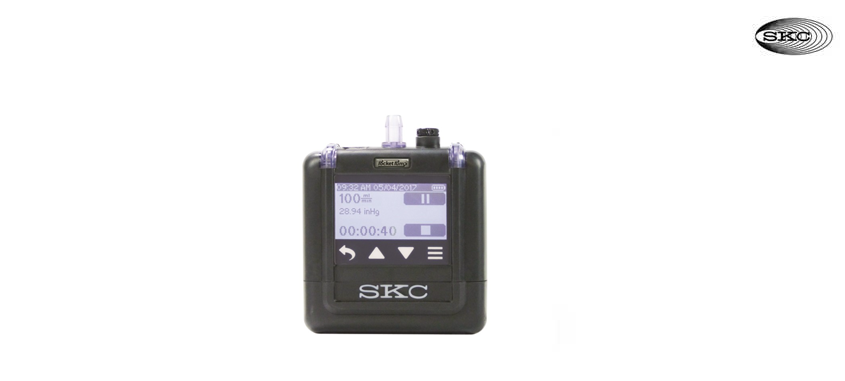

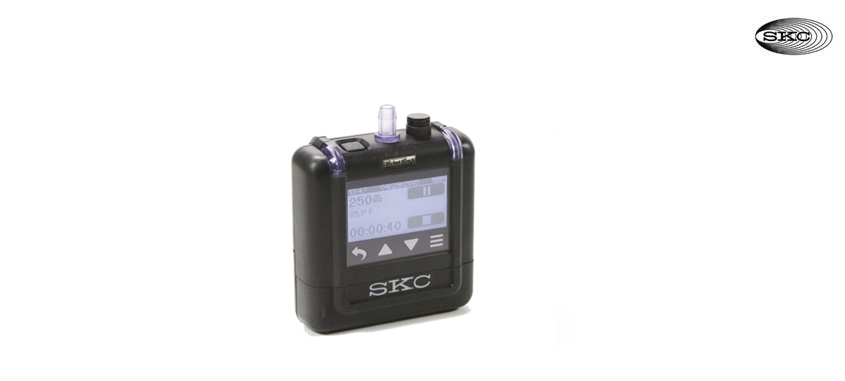

Pocket Pump TOUCH Single Kit
Product Descriptions
Pocket Pump TOUCH Single Kit includes pump with Li-Ion battery, single charger (USB cable and wall cube), and Type A single tube holder, in a soft-sided nylon carry case
The Pocket Pump TOUCH personal air sample pump provides low flows from 20 to 500 ml/min for gas and vapor sampling. Pocket Pump TOUCH features touch screen operation, Bluetooth communication with the SmartWave mobile app and PC-based DataTrac Pro Software, powerful Li-Ion battery for 20+ hours run time at 500 ml/min, exhaust port for direct filling of sample bags, AC Adapter/charger, and more in a miniature pump that fits in your pocket. Pocket Pump TOUCH is UL Listed for intrinsic safety.
| Pump Flow Rate | 20 to 500 ml/min |
| PC Compatible | Yes |
| Programable | Yes |
| Intrinsic Safety | Yes |
| Battery Type (Power) | Li-lon |
| Approx Run Time | 20 |
| Flow Range in Constant Flow Mode |
20 to 500 ml/min |
| Compensation Range in Constant Flow Mode |
20 to 500 ml/min up to 20 inches water back pressure |
| Pressure Range in Constant Pressure Mode |
1 to 20 inches water |
| Flow Control System | Corrects for changes in back pressure, temperature, and atmospheric pressure |
| Power | Removable rechargeable lithium-ion (Li-Ion) battery, 3.7 V, 2.6 Ah, 9.6 Wh or USB charger |
| Run Time (Li-Ion) | 20+ hrs at 500 ml/min up to 20 inches water back pressure, extended run times available with charger Tested using 37-mm 0.8-μm MCE filter with new pump and battery. Pump performance may vary. |
| Charging Time |
< 10 hrs (< 4.5 hrs to 80%) |
| Accuracy | Constant flow control: ± 5% of set-point or ± 3 ml/min, whichever is higher Atmospheric pressure: ± 0.3 in Hg Temperature: ± 1.0 °C Real-time clock: ± 1% Constant pressure mode: Reading ± 0.5 inch water |
| Temperature Ranges | Operating: 32 to 113 °F (0 to 45 °C) Charging: 32 to 113 °F (0 to 45 °C) Storage: -4 to 113 °F (-20 to 45 °C) |
| Humidity Range | < 95% RH, non-condensing |
| Altitude | Corrects flow for changes in temperature (32 to 113 °F [0 to 45 °C]) and ambient pressure up to 15,000 feet (4,572 meters) above and down to 2,300 feet (701 meters) below sea level |
| Flow Fault | After 3 to 10 seconds of restricted flow, pump stops running, elapsed time stops, status LEDs flash red, and pump displays fault icon. After 20 seconds in fault, auto-restart is attempted up to 5 times unless full airflow is restored prior to that. If full airflow is not corrected during 5 restart attempts within 5 minutes, the pump ends the run and displays Sample Summary. |
| Display Type/Parameters | High-contrast backlit LCD/Time, date, battery status, flow rate, sample volume, temperature, atmospheric pressure, back pressure, programmed run remaining time, and elapsed run time |
| User Interface | Eight-area capacitive touch screen with auto-dim and locking options |
| Dimensions | 3.2 x 3.8 x 1.5 in (8.1 x 9.7 x 3.8 cm) |
| Weight | 8.3 oz (235 gm) |
| Certifications/Markings | • Intrinsic safety (SKC Part No. 220-1000TC operated with SKC Battery Pack Part No. P76303) Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III, T4; Class I, Zone 0, Group IIC T4; Exia -20°C ≤ Ta ≤ 45°C • EX II 1G Exia IIC T4 Ga • IECEx UL 16.0113 • DEMKO 16ATEX 1600 • CE 0539 • RoHS compliant |
| Case Material | IP 64-rated case, polycarbonate with rubberized anti-static overmolding |
| Communications with PC | Low-energy Bluetooth, requires DataTrac Pro for Pocket Pump TOUCH USB Bluetooth Adapter (Cat. No. 877-94) |
| Tubing | Requires 1/4-in ID tubing |
