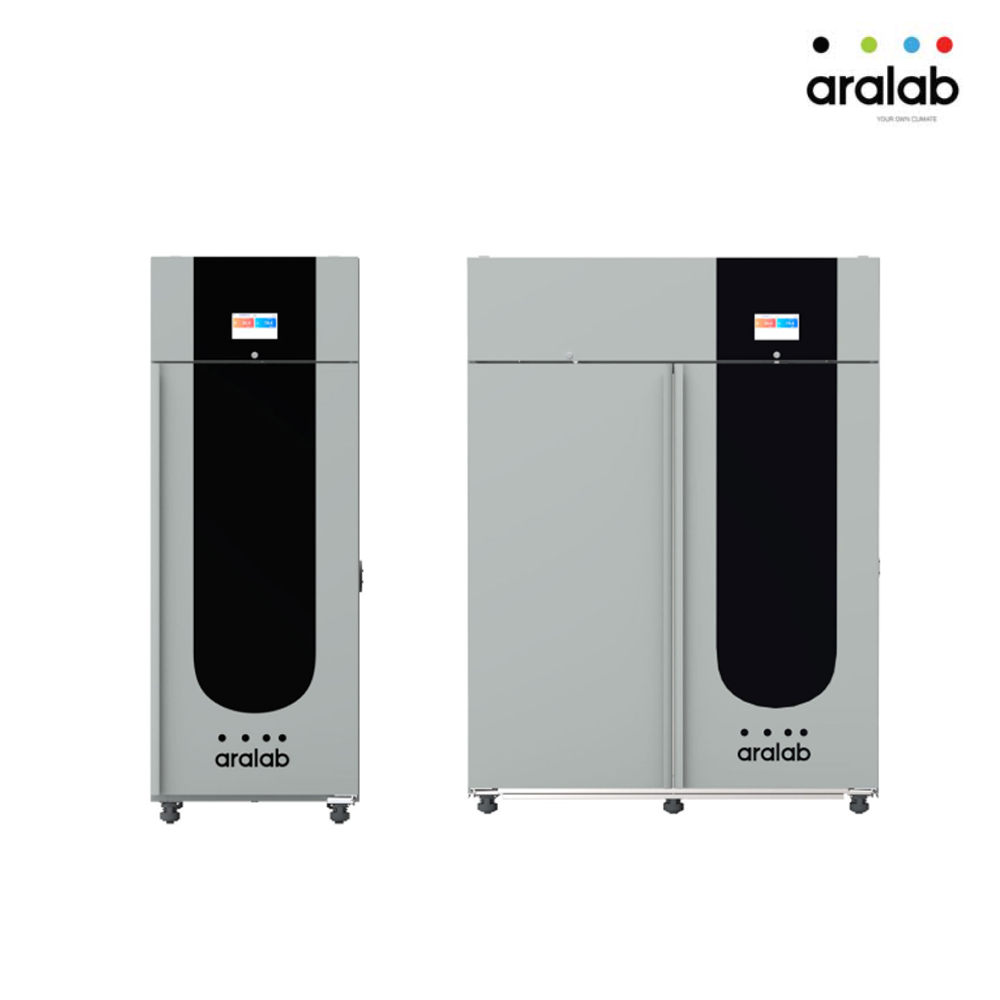

Reach-in PHCI Curing chambers
Temperature and Humidity curing chambers, designed to aid curing of cement, concrete and mortar. They feature durable stainless-steel construction and specially reinforced shelves. Great uniformity and performance to meet any curing environment. Highly suitable for keeping 98%rH and stable temperature.
Chambers designed to test the curing of cement, concrete and mortar samples, according to ASTM C192/C192M-14, IEC 679.
Various optional accessories are available to further testing like UV and Solar radiation, CO2 Carbonation, and stainless-steel trays with draining capacity.
INNER DIMENSIONS (H x W x D) (mm)
S600: 1340 x 600 x 660
D1200: 1340 x 1320 x 660
EXTERNAL DIMENSIONS (H x W x D) (mm)
S600: 1980 x 730 x 920
D1200: 1980 x 1450 x 810
INTERNAL VOLUME (Liters)
600 and 1200 liters
TEMPERATURE RANGE
From -5ºC to 60ºC
HUMIDITY RANGE
From 35% to 98%
SHELF SIZE
530MM x 630MM each
SHELVES
S600: 4 SHELVES (more can be added)
D1200: 8 SHELVES (more can be added)
