MW4270 Accurate Online Moisture Measurement
Product Descriptions
The process measurement instruments are made with tough industry environments in mind. For example, MW 42XX-series instruments optionally come in a compact housing. Variants with special explosion protection are available for installation in dust and gas Ex zones.

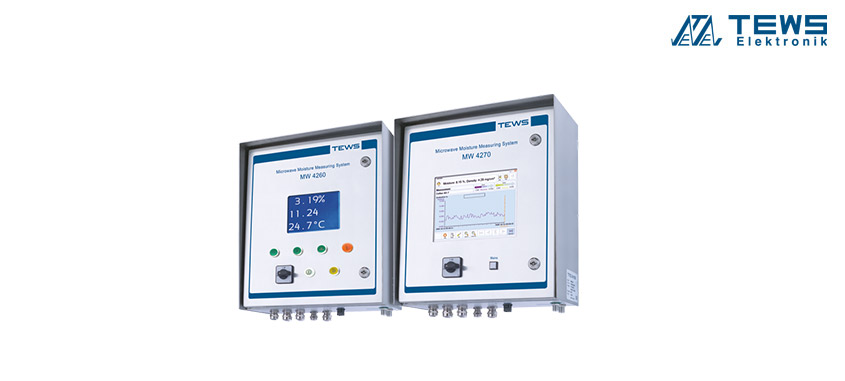

The MW 4270 features an integrated touch TFT screen for highest convenience and ease of use. The MW 4260 has a three lines display. All versions can be connected to a PC and controlled using the TMV software. The MW 4200 is the perfect alternative for applications where the distance between the sensor and the display needs to be longer (up to 8m).
Key features and options
– Measuring results within a fraction of a second with up to 3,500 measurements/s
– Long-term stability and low installation cost
– Easy integration into closed-loop control systems
– IP65 protection for industrial use
– ATEX protection possible
| Technical Data. | |
| Electrical Power Supply | : 110 – 230 V AC, 50-60 Hz |
| Power Consumption | : 200 VA |
| Ambient Temperature | : 0 – 45 °C |
| Display | : 10.4” (26,4) LED color touchscreen |
| Data Interfaces | : 1 x Ethernet |
| : 1 x analogue input (0/4-20 mA) | |
| : 3 x analogue output (0/4-20 mA) | |
| : 8 x potential-free digital outputs / 8 x digital inputs | |
| Options | : Various Fieldbus and Modbus TCP |
| Measurement Time | : up to 3,500 measurements per second |
| Data Memory | : 60.000 measurements on device, unlimited on external server |
| Features | : IP55 protection for industrial use, ATEX protection possible for gas and dust |
