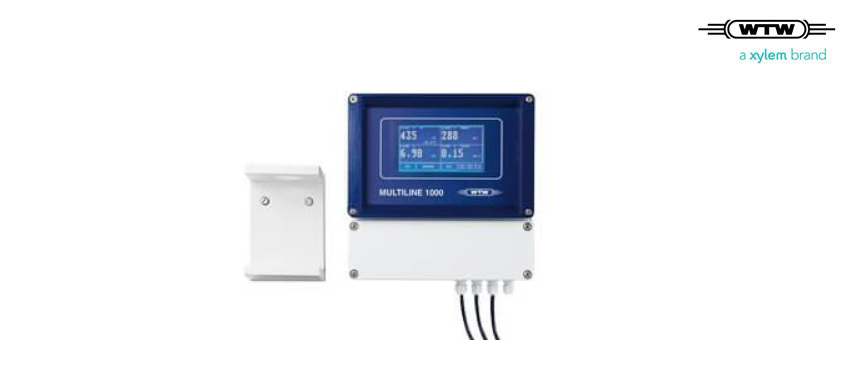

MULTILINE 1000 Analog multi parameter controller
Product Descriptions

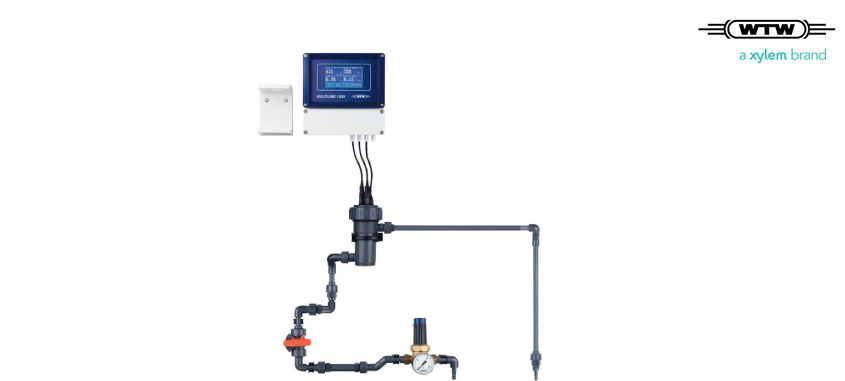

Ready-to-use drinking water monitoring, panel mounted, incl, pipes
Flexible measuring system with very price/performance ratio for drinking water analytics – up to 16 freely selectable sensors can be connected:
• For immediate use: Premounted on wall mounting plate
• User-friendly by intuitive menu guiding and large touchscreen
• No use of chemicals – environmentally friendly and cost-saving
The multi-parameter system MULTILINE 1000 to measure pH, ORP, oxygen, conductivity, turbidity, free or total chlorine – simply connect – done! The measuring results can be transferred out conveniently via digital interfaces (RS 232/RS 422/RS 485), analog power outputs (4 x 0(4) … 20mA) or 4 potential-free relay outputs (for limit value/alarm function). To monitor the inflow, flow measurement is also available.
| Technical Data | |
| Power supply | 115/230 VAC |
| Ambient temperature | -10 … + 55°C |
| Data memory | Internal, approx. 50.000 Wete, incl. date and time |
| Dimensions | 239 mm x 240 mm x 125 mm (HxWxD) |
| Housing | Aluminum housing, protection class IP 65 |
| Measuring range pH | 0,00 … 14.00 pH |
| Measuring range ORP | – 2000 … + 2000 mV |
| Measuring range oxygen | 0.00 … 20.00 mg/l |
| Measuring range conductivity | 100 µS/cm … 20 mS/cm |
| Measuring range chlorine | 0.00 … 2.00 mg/l |
