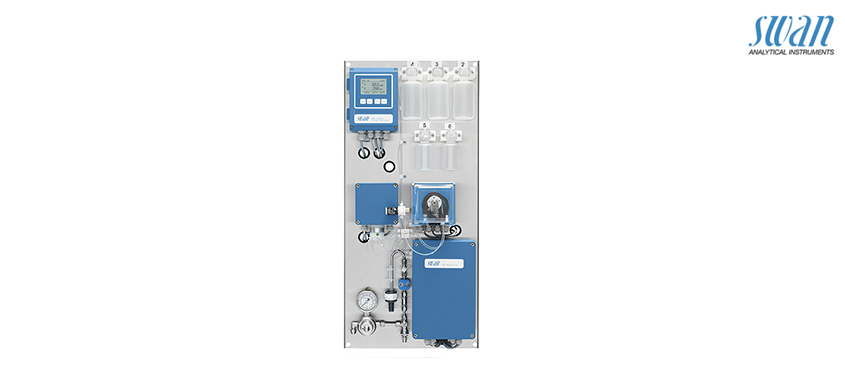

Monitor AMI LineTOC AC
Product Descriptions
On-line analyzer for the continuous measurement of Total Organic Carbon in pure and ultrapure water.
• Reagent-free measurement of TOC by UV oxidation and differential conductivity detection.
• System suitability test according USP <643> and EP 2.2.44.
• Automatic addition of standard solutions.
• Automatic dilution of standards to 500 ppb TOC as Sucrose and to 500 ppb TOC as Benzoquinone.
• Reaction Time: < 2 Minute
• Factory tested and ready for installation and operation
| Specifications | |
| TOC Measurement | |
| Measuring range | : 0,1 to 1’000 ppb TOC |
| Resolution | : ± 0,1 ppb |
| Max. Conductivity | : 2µS at 20°C |
| Reproducibility | |
| 0,1 to 50 ppb | : ± 1 ppb |
| 50 to 1’000 ppb | : ± 2% |
