Mikado : Mobile Acoustic Camera
Product Descriptions
Mikado is the perfect solution for troubleshooting noise and vibration problems. The fully mobile device enables measurement from nearly any location.

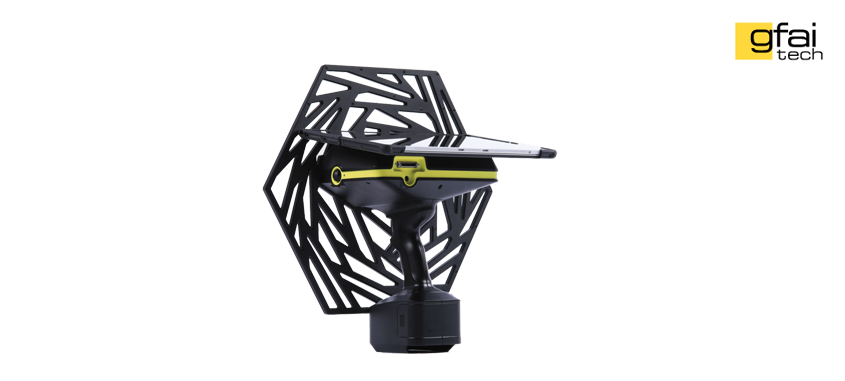

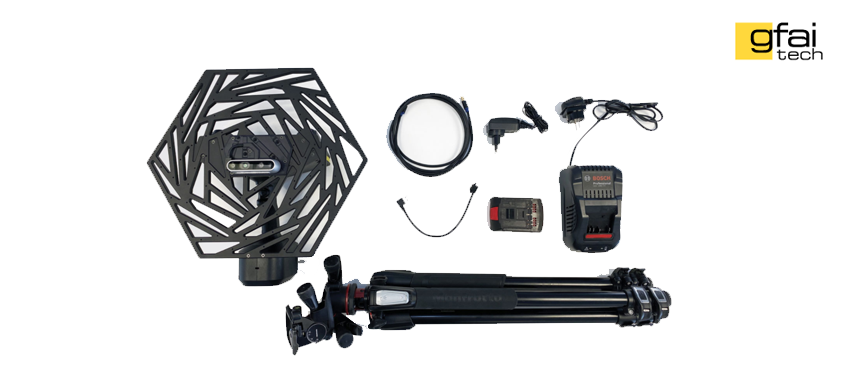

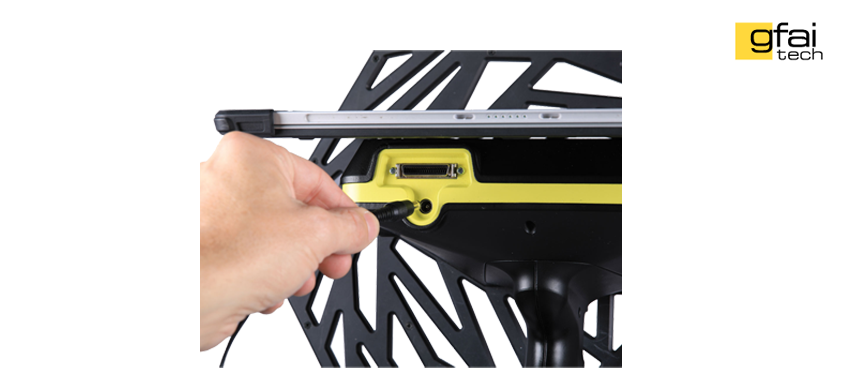

As a complete package consisting of a microphone array, data recorder, and tablet with NoiseImage Mobile software, Mikado includes all components needed for quick and efficient acoustic measurements and analyses. Data recording and basic analyses in both frequency and time domain based are possible directly on the device. Features such as the touchscreen and manual trigger button ensure a fast and easy operation. Mikado can also be easily connected to your workstation for more in-depth analyses with NoiseImage Pro.

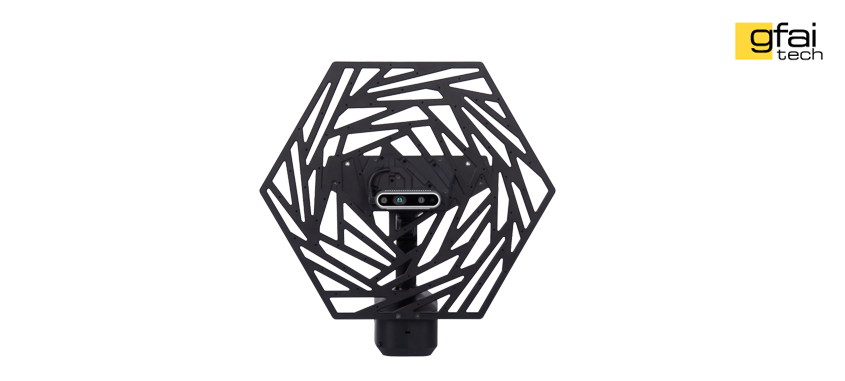

The array comes with an integrated Intel® RealSense™ Depth Camera which features Full HD resolution and the ability to record depth information.
BENEFITS
• All-in-one Acoustic Camera
• 100 % autonomous due to rechargeable Bosch battery (available worldwide)
• Completly flexible during measurement
• Use handheld or mounted on a tripod
• For beginners and experts
APPLICATIONS
• Troubleshooting noise and vibration problems
• Quality management of products and components
• Leakage detection
• Closeup measurements in aerospace, automotive, electronics and appliance, education and research
| Technical Data | |
| Array-body dimensions | 45 x 35 x 15 cm |
| Weight | 1.7 kg (3.4 kg incl. battery and Microsoft® Surface) |
| Video Camera | Intel® RealSense™ Depth Camera D435 |
| Resolution | 1920 x 1080 (Full HD) |
| Microphones | MEMS (Knowles) |
| Frequency response | 100 Hz – 5 kHz (< 0.5 dB) |
| 100 Hz – 11 kHz (< 3 dB) | |
| Max. sound pressure level | 121 dB at 10% THD |
| Noise level | 30 dB(A) |
| Sensitivity (1 kHz, 94 dB SPL) | -26 dBFS |
| Channels | 96 |
| Recommended measurement distance | > 0.3 m |
| Acoustic maps from … | 9 dB – 120 dB |
| Recommended mapping frequencies | 514 Hz – 24 kHz |
| Dynamic range | 15 dB – 27 dB, up to 50 dB with Advanced Algorithms |
| Ingress protection code | IP20 |
| Operating environment | 0°C – 35°C, up to 80% RH |
