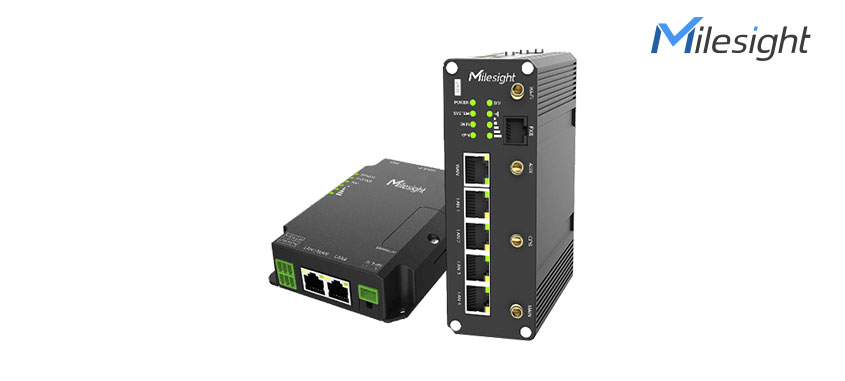

Milesight UR32 & UR35 Industrial Cellular Router
Product Descriptions
With a brand new look and compact size, UR32 is specially designed to be LOW-COST and HIGHLY-EFFICIENT. The pocket-sized design allows it to easily fit into small cabinets or machines when space is extremely limited.
Equipped with 2 fast Ethernet ports and 1 RS232 interface, UR32 can connect with diverse field assets.With a built-in LTE CAT4 modem, it supports dual SIM backup for robust, reliable cellular communication.Also, its rugged enclosure and wide operating temperature range (-40°C to +70°C) make it perfectly suit mostM2M applications in the harsh environment.
UR32 Features
– Compact and rugged design
– PoE is optional; Wi-Fi/GPS (alternative)
– Supports Modbus RTU/TCP
– 1 digital input and 1 digital output
– OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE
The UR35 is an industrial-grade 4G LTE cellular router with a 5-port Ethernet interface for mission-critical communications. Featured with multiple network protocols and VPN tunnels, UR35 provides secure and reliable solutions for a range of M2M/IoT deployments.
To fulfill the market demand, UR35 is built with hardened enclosure, industrial components,and wide operation range from -40°C to 70°C for harsh environments. Aside from Dual SIM redundancy and Wi-Fi for seamless wireless connectivity, it is also equipped with 4 PSE PoE ports, serial ports, digital I/O for field communications.
UR35 Features
– Hardened & Rugged Enclosure
– 4 PoE PSE Ethernet Ports
– Supports Wi-Fi Client and AP Mode
– 1 RS232 and 1 RS485 Serial Port
– 1 Digital Input and 1 Digital Output
– OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE
– Wide Operating Temp Range and Input Voltage
Specifications
|
|||||||||||||||||||
Capabilities | CPU | 528 MHz, 32-bit ARM Cortex-A7 | |||||||||||||||||
Flash | 128 MB | ||||||||||||||||||
Memory | 128 MB DDR3 | ||||||||||||||||||
Built-in | Watchdog | ||||||||||||||||||
GPS | GPS + GLONASS | ||||||||||||||||||
Micro SD | Supports micro SD card up to 128 GB | ||||||||||||||||||
Interfaces | SIM Slots | 2 | |||||||||||||||||
Ethernet Ports | 2 × 10/100 Mbps | 5 × 10/100 Mbps | |||||||||||||||||
Serial Ports | 1 x RS232 (optional RS485) | 1 x RS232 +1 x RS485 or 2 x RS485 | |||||||||||||||||
DI/DO | 1 × DI + 1 × DO | ||||||||||||||||||
Antenna Connectors | 2 x Cellular Connectors 1 x GPS/Wi-Fi Connector | 2 x Cellular Connectors 1 x Wi-Fi Connectors 1 x GPS Connector | |||||||||||||||||
Network | Network Protocols | IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH | |||||||||||||||||
AAA | RADIUS, TACACS+, LDAP, Local Authentication | ||||||||||||||||||
Firewall | Anti-DDoS, SPI, ACL, DMZ, Port Mapping, MAC Binding | ||||||||||||||||||
Wi-Fi (Optional) | IEEE 802.11b/g/n | ||||||||||||||||||
Serial Port | Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master | ||||||||||||||||||
Reliability | VRRP, WAN Fail-over, Dual SIM Backup | ||||||||||||||||||
VPN | OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE | ||||||||||||||||||
Maintenance | Management | Web, CLI, SMS, Watchdog, On-demand Dial Up | |||||||||||||||||
Multilevel Authority | Multiple Levels of User Authority | ||||||||||||||||||
Hardware | Power Input | 9-48 VDC | |||||||||||||||||
Power Output (Optional) | 2 × 802.3af/at PoE PSE | 4 × 802.3af/at PoE PSE | |||||||||||||||||
Ingress Protection | IP30 | ||||||||||||||||||
Housing & Weight | Metal, 271g (0.60 lb) | Metal, 481g (1.06 lb) | |||||||||||||||||
Dimensions | 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) | 135 x 100 x 45 mm (5.31 x 3.94 x 1.77 in) | |||||||||||||||||
Mounting | Desktop, Wall or DIN Rail Mounting | ||||||||||||||||||
Others | Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced cellular performance above 60°C | |||||||||||||||||
Storage Temperature | -40°C to +85°C (-40℉ to +185℉) | ||||||||||||||||||
Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ | ||||||||||||||||||
Certifications | RoHS, CE, FCC, AT&T (UR32) | ||||||||||||||||||
|
|
