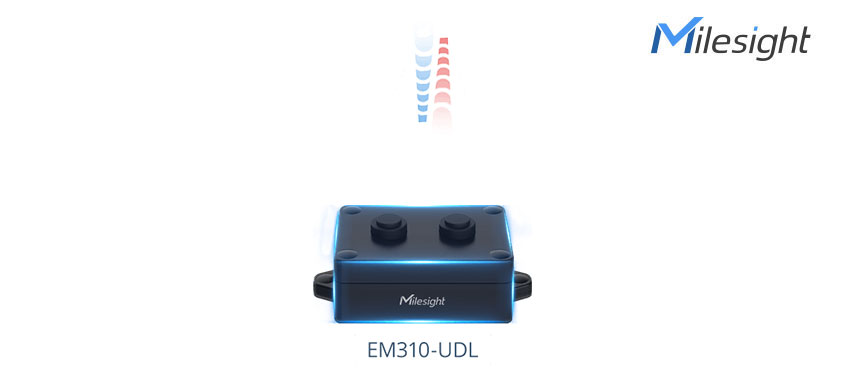

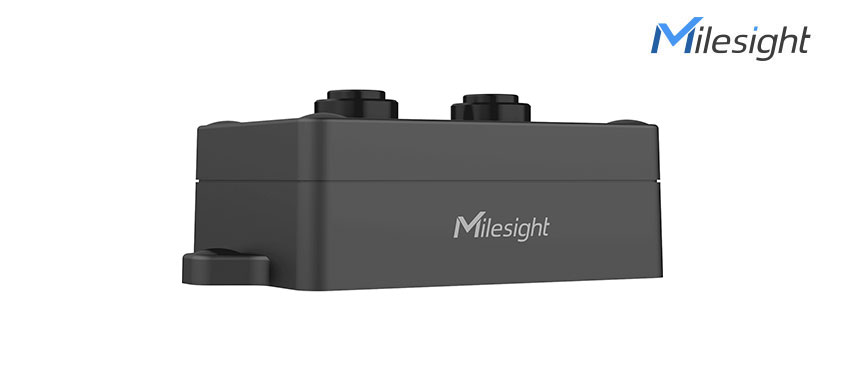

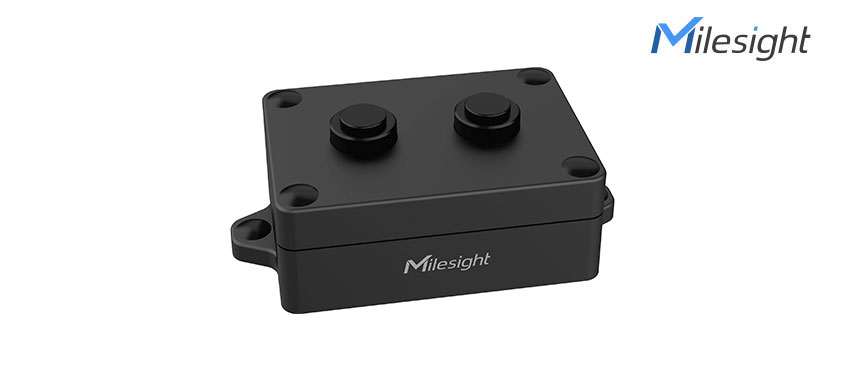

Milesight Ultrasonic Distance/Level Sensor EM310-UDL
Product Descriptions
Milesight EM310-UDL is a LoRa ultrasonic distance sensor mainlyfor the detection of waste bin and other container’s fill level. Withacompact size and wide measure range, EM310-UDL canbeinstalledto any types of waste bins or containers to monitor solidor liquidlevel. Besides, EM310-UDL equips with 3-axis accelerometer todetect the status of container cover. Compliant with Milesight
LoRaWAN® gateway and Milesight IoT Cloud solution, userscanknow the container status and fill-in level in real-time viabrowserormobile App remotely. EM310-UDL can be widely used in waste management, water tankmonitoring, manhole cover monitoring, etc
Features

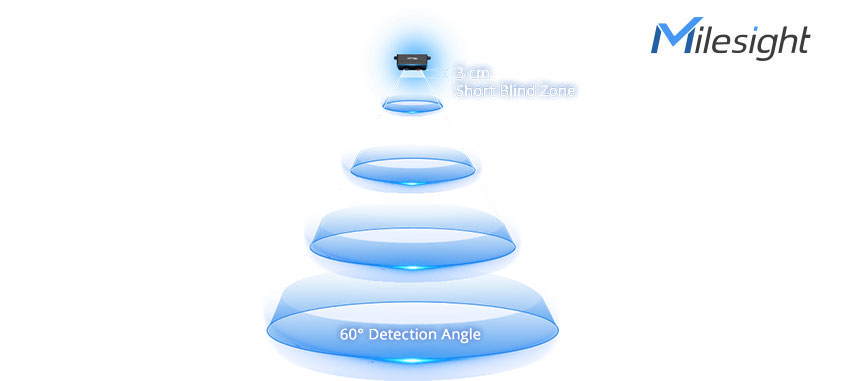

– 3-450 cm wide measuring range with short blind zone
– Easy to install, suitable for various types of waste bins or containers
– Built-in 3-axis accelerometer sensor to monitor device tilt status

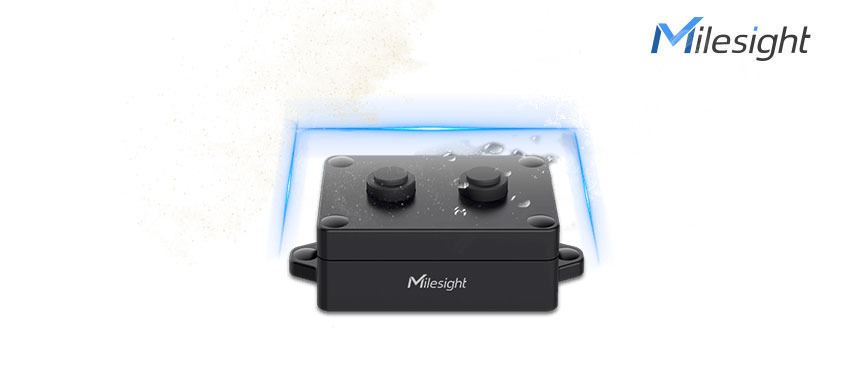

– IP67 waterproof and salt pray resistant enclosure for outdoor applications and easy to clean
– Ultra-wide-distance wireless transmission up to line of sight of 15 km
– Equipped with NFC for one touch configuration, support card emulation mode
– Function well with standard LoRaWAN® gateways and network servers
– Compliant with Milesight IoT Cloud
Specifications
| Wireless Transmission | |
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| Distance | |
| Detection | Range 3 – 450 cm |
| Detection Accuracy | ± (1+0.3%*S) cm, S=distance |
| Distance Resolution | 1 mm |
| Device Position | |
| Status | Normal/Tilt |
| Operation | |
| Configuration | NFC Configuration via Mobile App |
| Physical Characteristics | |
| Power Supply | 2 × 3500 mAh ER17505 Li-SOCl2 battery |
| Battery Life* | ≥10 years (10 min interval + 20 triggers per day) |
| Operating Temperature | -15°C to +60°C |
| Relative Humidity | ≤90% (non-condensing) |
| Ingress Protection | IP67 |
| Dimension | 111 × 62 × 40 mm (4.37 × 2.44 × 1.57 in) |
| Weight | 168g |
| Material & Color | ABS, Black |
| Installation | On the flat surfaces with screws |
