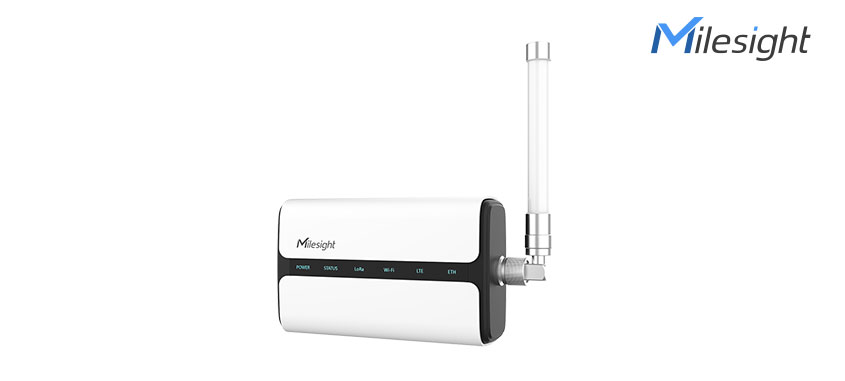

Milesight UG65 Semi-Industrial LoRaWAN® Gateway
Product Descriptions
UG65 is an affordable and powerful semi-industrial 8-channel LoRaWAN gateway, with sleek design and IP65 rating protection.
Features
– IP65 Rating
– spotNXP Quad-Core Processor
– spotSemtech SX1302 LoRa Chip
– spotMultiple Backhaul Connectivities
– spotEmbedded Network Server
– spotCompatible with Multiple Network Servers
– spotGlobal LoRaWAN® Frequency Plans
(CN470/RU864/IN865/EU868/AU915/US915/KR920/AS923)
Specifications
| Model | UG65 | |
|---|---|---|
| Hardware System | CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM | |
| Flash | 8 GB eMMC | |
| LoRaWAN® | Antenna | Fully Integrated Internal Antenna (Optional: 1 × 50 Ω N-Female External Antenna Connector) |
| Channel | 8 | |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 | |
| Sensitivity | -140dBm Sensitivity @292bps | |
| Output Power | 27dBm Max | |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C | |
| Ethernet Interface | Port | 1 × RJ45 (PoE PD support) |
| Physical Layer | 10/100/1000 Base-T (IEEE 802.3) | |
| Data Rate | Rate 10/100/1000 Mbps (Auto-Sensing) | |
| Interface | Auto MDI/MDIX | |
| Mode | Full or Half Duplex (Auto-Sensing) | |
| Wi-Fi | Antenna | Fully Integrated and Internal Antenna |
| Standards | IEEE 802.11 b/g/n | |
| Tx Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) | |
| 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) | ||
| 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) | ||
| 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) | ||
| 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) | ||
| 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) | ||
| 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) | ||
| Cellular Interface (Optional) | Antenna | Fully Integrated and Internal Antenna |
| SIM Slot | 1 | |
| Software | Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN | |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAPV2 | |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter | |
| Management | Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud | |
| Reliability | WAN Failover | |
| Power Supply and Consumption | Power Supply | 1. DC Jack Connector for 9-24 VDC power supply |
| 2. 1 × 802.3 af PoE input | ||
| Consumption | ≤ 4.2W | |
| Physical Characteristics | Ingress Protection | Protection IP65 |
| Dimensions | 180 x 110 x 56.5 mm | |
| Mounting | Desktop, Wall or Pole Mounting | |
| Others | Reset Button | 1 × RST |
| Console Port | 1 × Type-C Port | |
| LED Indicators | 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH | |
| Built-in | Watchdog, RTC, Timer | |
| Certification | CE, FCC | |
| Environmental | Operating Temperature | -40°C to +70°C (-40℉ to +158℉) |
| Reduced Cellular Performance Above 60°C | ||
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) | |
| Ethernet Isolation | 1.5 kV RMS | |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
