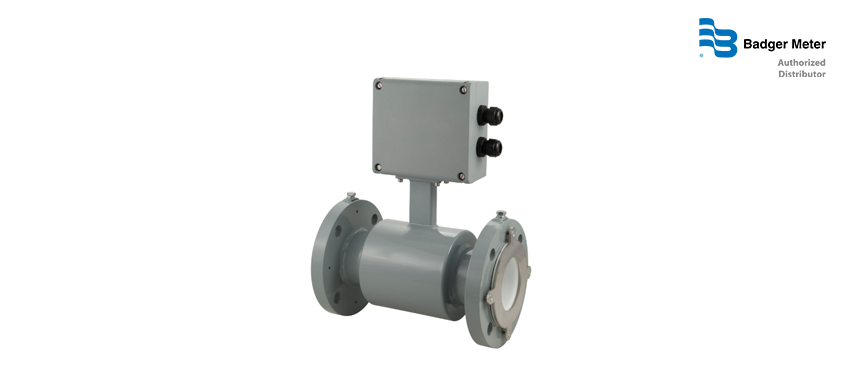

M7600 Electromagnetic Flow Meter
Product Descriptions
Electromagnetic flow meters are among today’s most popular meter designs. They are obstructionless, cost-effective for a variety of fluids, and provide highly accurate volumetric flow measurement. The ModMAG M-Series® M7600 Electromagnetic Flow Meter combines the most advanced magnetic flow metering technology with a simple, yet robust output for batching systems found in industrial applications. Having a non-obstructive flow-through pipe design allows particulates to pass through the meter body. The M7600 features an intuitive PC interface used for selecting the scale factor, unit of measure and pulses per unit, making it the most straightforward metering system available in the industry.
FEATURES
– Open cross-section design: no pressure loss, no moving parts, no maintenance required
– Unaffected by the presence of most suspended solids in the liquid
– Pulsed DC magnetic field for maximum zero point stability
– Two standard pulse outputs: solid-state relay and open collector output, compatible with most batch controllers and totalizer displays
– Programmable scale factor
– Long life, corrosion-resistant liner (PTFE)
SPECIFICATIONS
– Size 1/2…4 in.
– Temperature Range Up to 212 °F
– Flow Range 0.14…1320 gpm
– Pressure Range Up to 232 PSI
– Accuracy ±0.5 %
