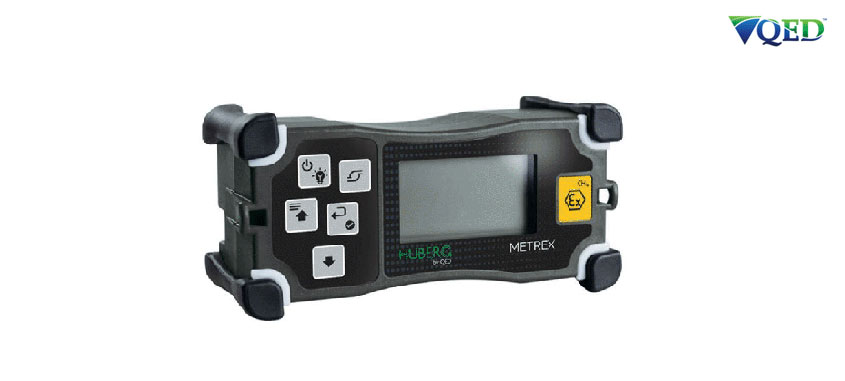

LCD Display Gas Detector
Descriptions
The new METREX is significantly reduced in its size, compared to its predecessors and is also up to 50% lighter in weight. It features ten hour battery life and an easy to read and navigate LCD display. Gas measurements are displayed on screen to the user and easy to understand. The IP65 certified ingress rating adds to the robustness of the instrument when operating it in adverse weather conditions. QED’s design and engineering expertise founded by the Geotech instrumentation product range can be seen in the proprietary sensing and detection capabilities built within the new METREX. It detects and measures gas ranges that span from 0 – 10 000 PPM (part per million). A further significant improvement from the previous Metrex models is the feature to capture, and datalog surveyed data to the ProSoft by QED mains gas compliance reporting software. This data transfer can be via the ATEX integrated Bluetooth data transfer or USB to PC. ATEX certified (II 2 G Ex db ib IIB T4 Gb), including EN 60079-29-1 performance, the new METREX has been classified to be safely operated in designated hazardous locations. Unlike traditional flame ionisation detectors, the new METREX does not require, for example, heavy fuel calibration gas cylinders to needs to be carried by the operator while doing gas network surveys.
Key Specifications
• EN 60079-29-1 performance certified
• 50% lighter than legacy model
• Simple menu and operation
• Easy to read LCD display
• Adjustable gas thresholds
• Bluetooth data transfer
• Integrated ATEX GPS
• Compliance reporting with PROSoft
• IP65 rated
• 10 hours battery life
Benefits
• Onboard data logging
• Low maintenance and calibration costs
