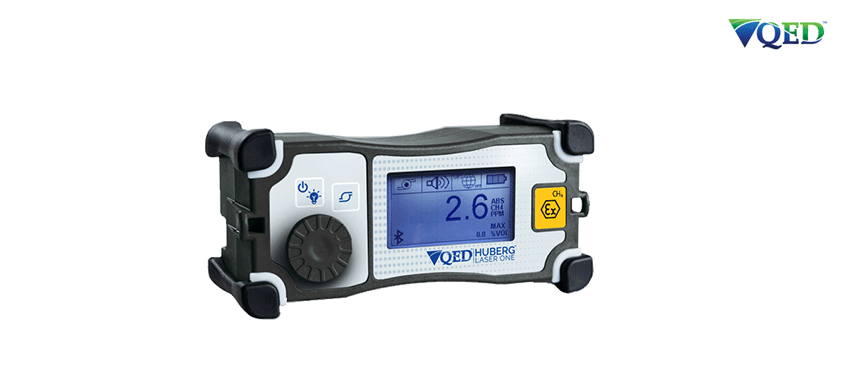

Gas leaks Detection : LASER One
Product Descriptions
The LASER One is a professional instrument for the detection and localization of methane gas leaks, it is selective and it requires no gas cylinder. Suitable for the detection of leaks in underground and above ground pipelines. The instrument can be used for better quantification of CH4 (methane) emissions from infrastructure and has great results even with biogas leaks in the biogas plants, thanks to the high precision of LASER technology. Equipped with GPS antenna and Bluetooth for data transfer from the instrument to a PC or PDA.
Key Specifications
• Sensitivity to CH4
• Self contained
• Rapid start-up and detection
• GPS tracking
• ATEX certified
Benefits
• No cross-gas or false readings
• No additional devices for operation
• No flame or external hydrogen required
• Accurate reporting which meets and maintains compliance requirements
Key Specifications
Target Gas: Methane (CH4)
Detection Method: Tunable Diode LASER Absorption Spectroscopy
Measurement Range: 0.5 ppm to 100% by volume
Instrument Resolution: 0.1 ppm (0-100 ppm); 1 ppm (101-1,000 ppm); 5 ppm (1,001 – 5,000 ppm); 10 ppm (5,001 – 10,000 ppm)
Response Time: T90 = 2.5 sec; T90 = 3.5 sec (w/probe)
Intrinsic Safety: ATEX Zone 1 EX II 2 G Ex ib op is IIB T3 Gb; Tamb -22 to 122F (-30°C to +50°C)
Warm-up Time: 30 to 60 seconds
