Product Descriptions

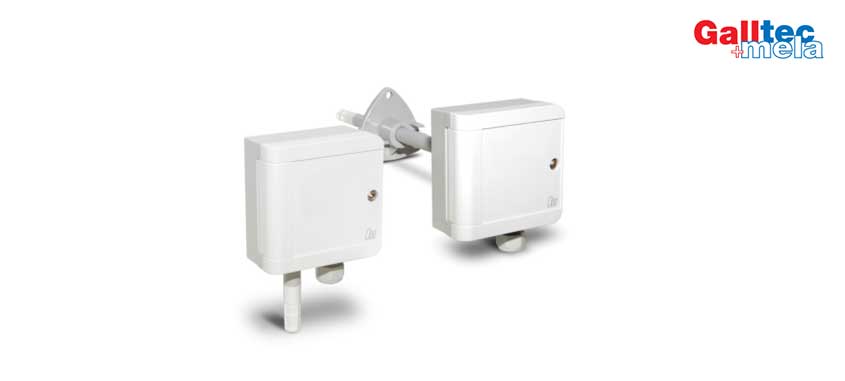

Designs available: Duct version, Wall mounting, Rod-shaped, Room version
• IP 65 with PTFE sintered filter ZE05
• Sensor tube Ø 12 mm
• Output signals available:
• RS232 or RS485 MODBUS RTU
• Operating voltage: 6…30 V DC
Special version: sealing against vibrations or condensation
Accuracy:
Humidity: ± 3% rh 30…80 % rh at 10…40 °C
Temperature ± 0,8 K 10…40 °C
Economical transmitters of the L Series are primarily optimized for ambient room conditions and are very well suited to help control energy costs in HVAC and building automation applications. Thanks to their high-quality manufacturing, these transmitters can also be used in industrial settings under moderate conditions.
| Two designs |
duct version (LK) |
| wall mounting (LW) |
| Different physical outputs |
humidity and temperature and all hx values |
| Output signals |
RS232 with ASCII protocol |
| RS485 with Modbus RTU protocol |
| Special versions |
sealing for increased requirements, e.g. condensation sealing against vibrations |
| Filter |
protective basket ZE07 (IP 00) |
| filter with membrane ZE08 (IP30) |
| PTFE sintered filter ZE05 (IP65) |
