Galltec L Series with analogue outputs
Product Descriptions
Economical transmitters of the L Series are primarily optimized for ambient room conditions and are very well suited to help control energy costs in HVAC and building automation applications. Thanks to their high-quality manufacturing, these transmitters can also be used in industrial settings under moderate conditions.

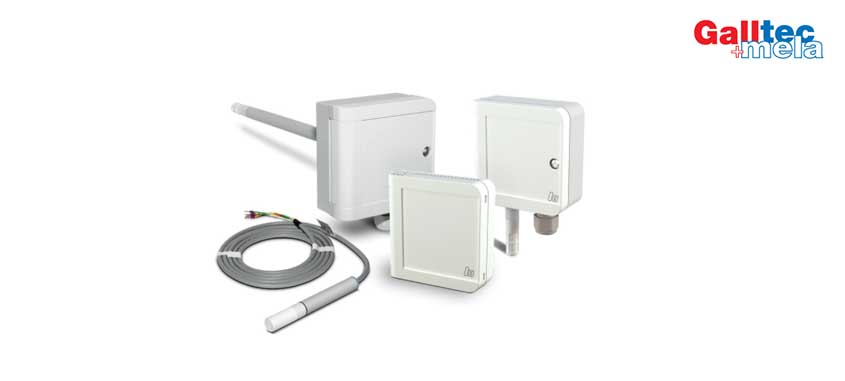

• Designs available: Duct version, Wall mounting, Rod-shaped, Room version
• IP 65 with PTFE sintered filter ZE05
• Sensor tube Ø 12 mm
• Output signals available:
• 0…1 V / 0…5V / 0…10 V / 4…20 mA / passive
• Operating voltage: 12…30 V DC
• Special version: sealing against vibrations or condensation

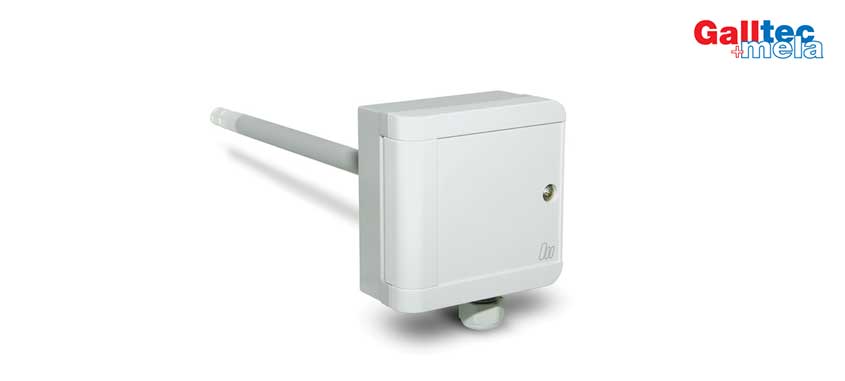

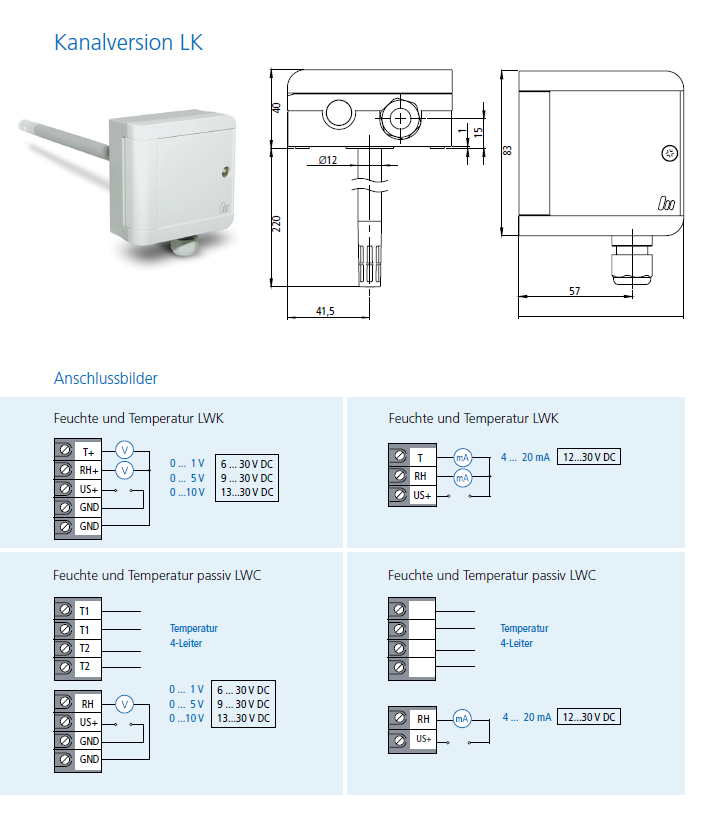

| Four designs | duct version (LK) |

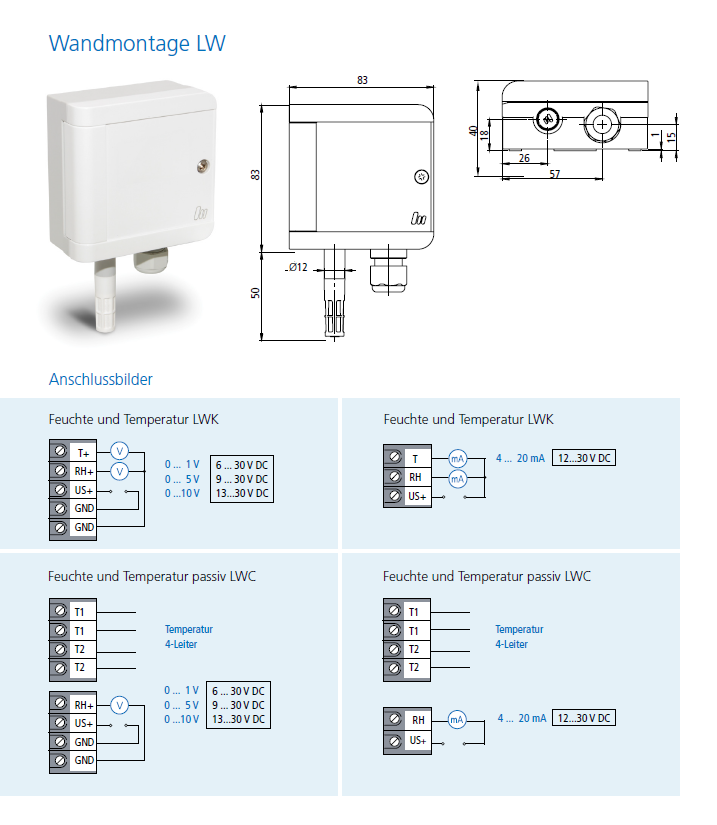

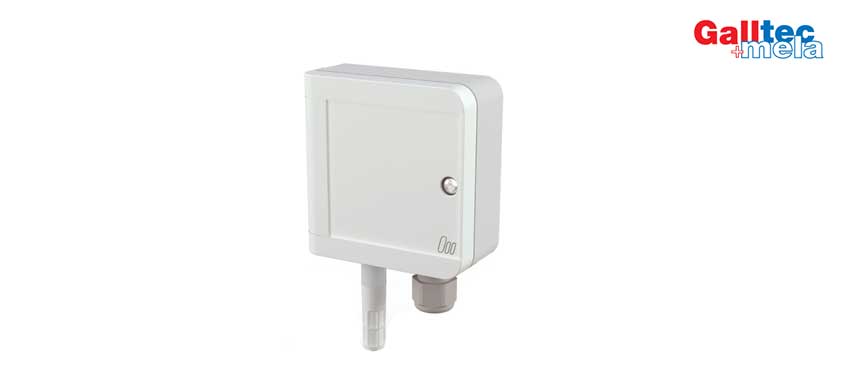

| wall mounting (LW) | |

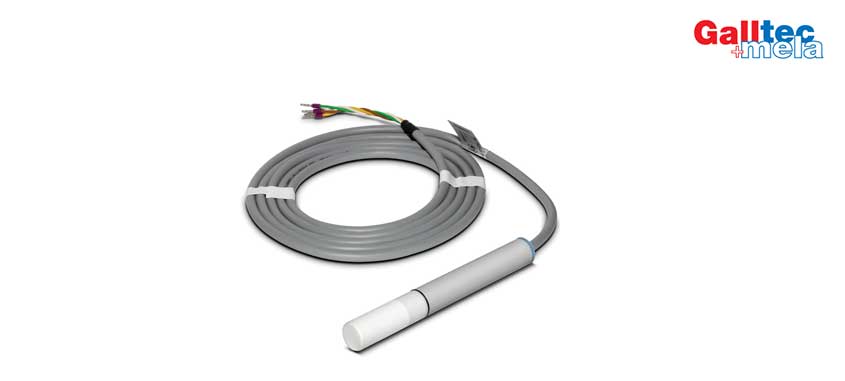

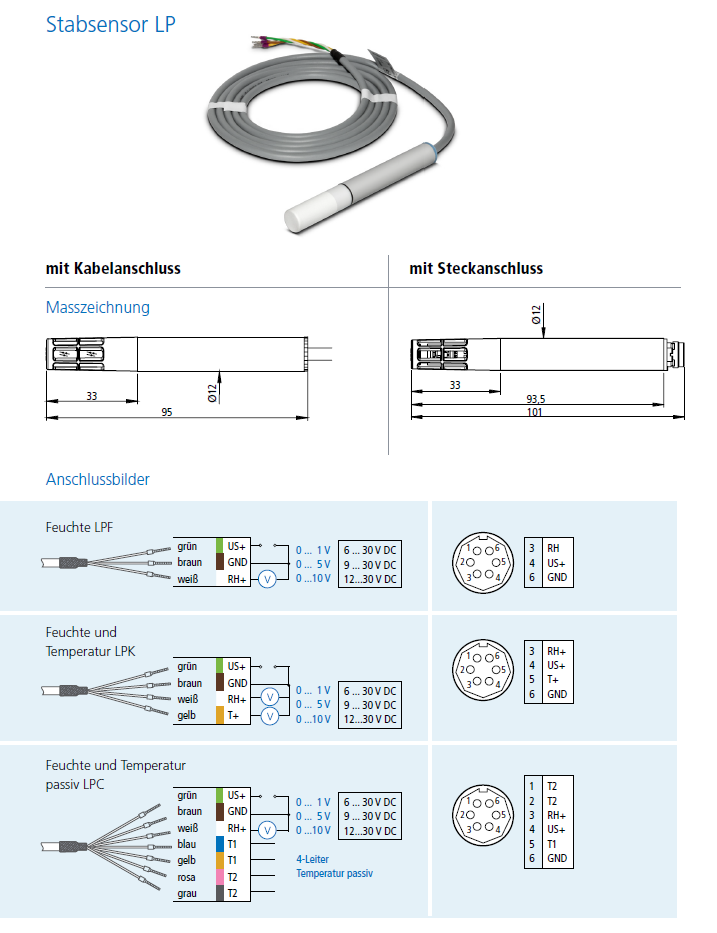

| rod-shaped Ø 12mm (LP) | |

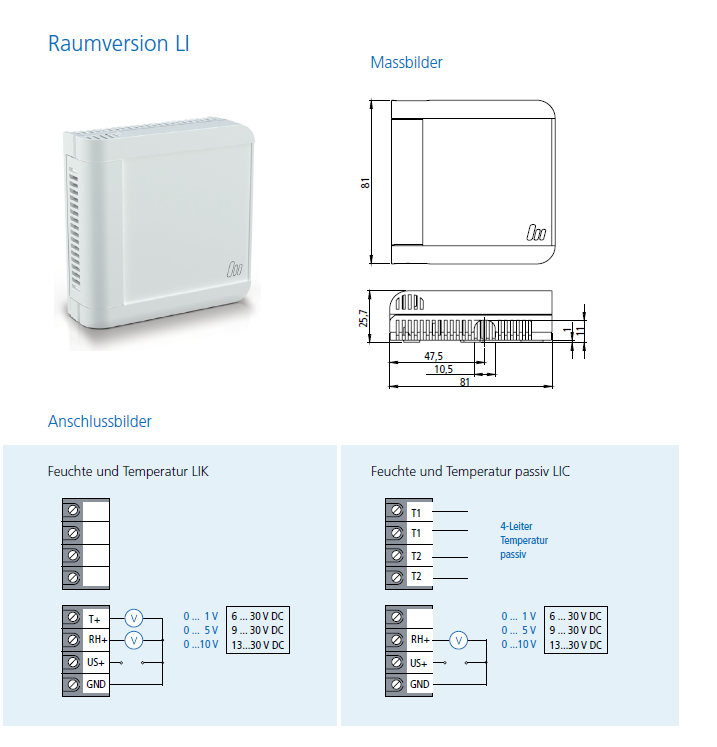

| room version (LI) | |
| Different physical outputs | humidity and temp., 2 x active |
| humidity active / temp. passive | |
| humidity only, active | |
| temperature only, active or passive | |
| Output signals | 0…1 V |
| 0…5 V | |
| 0…10 V | |
| 4…20 mA (only LK and LW) | |
| passive (temperature) | |
| Special versions | sealing for increased requirements, e.g. condensation sealing against vibrations |
| Filter | protective basket ZE07 (IP 20) |
| filter with membrane ZE08 (IP30) | |
| PTFE sintered filter ZE05 (IP65) | |
| Rod-shaped sensor with 2 types of connection | 6-pin plug-in connection and assembled cable permanently attached cable |
| measuring medium | air, pressureless, non-aggressive, non-condensing |
| min. air speed | 0.5 m/s |
| operating temperature | |
| type LK, LW | -40…+80°C |
| type LP | -30…+80°C |
| type LI | -20…+60°C |
| storage temperature | -40…+85°C |
| degree of protection of measuring head (series LK, LW, LP) | |
| with protective basket ZE07 | IP20 |
| with membrane filter ZE08 | IP30 |
| with PTFE sintered filter ZE05 | IP65 |
| degree of protection of housing | |
| type LP, LK, LW | IP65 |
| type LI | IP30 |
| material of housing | |
| type LP, LK, LW | PC (light grey / white) |
| type LI | ABS (white) |
| electromagnetic compatibility | ref. EN 61326 |
| Humidity | |
| sensing element | calibrated sensor chip calHT |
| output range | 0…100 %rh |
| accuracy | 30…80 %rh at 10…40°C ±3 %rh |
| < 30 %rh or > 80 %rh at 10…40°C ±5 %rh | |
| influence of temperature < 10°C or > 40°C typ. ±0.06 %rh/K | |
| Temperature with active output | |
| sensing element | calibrated sensor chip calHT |
| output ranges | 0…+50°C |
| -20…+80°C | |
| -30…+70°C | |
| 0…+100°C | |
| Accuracy | |
| at 10…40°C | ±0.8 K |
| <10°C and >40°C | s. diagramm |
| Temperature / passive output | |
| sensing elements | Pt100 |
| Pt1000 | |
| other sensing elements on demand | e. g. NTC |
