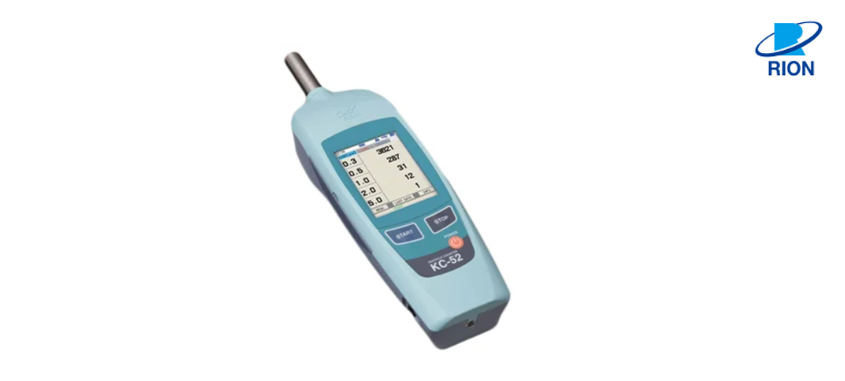

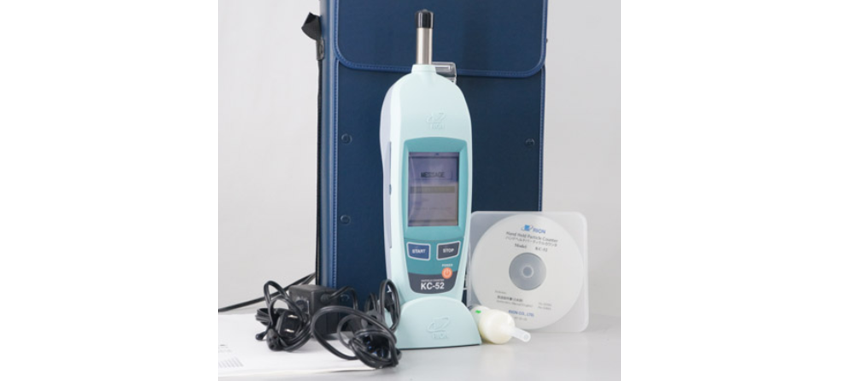

KC-52 Airborne Particle Counters
Product Descriptions
Fully equipped with basic functions and can be used for aVariety of contamination control applications.
• Complies to the ISO 21501-4 standard (JIS B 9921)
• 3.5-inch color LCD with touch panel
• Password protection to keep administrator and user access separate
• English and Japanese display selectable

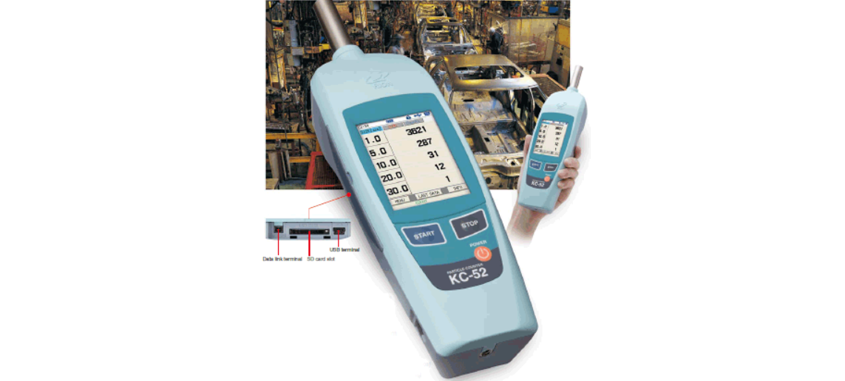

• Equipped with a USB terminal and SD card slot
• Able to connect to the multi-point monitoring system
| Specification | |
| Optical system | Light-scattering method |
| Light source | Laser diode (wavelength: 780nm, rated output 35mW) |
| Measurement size range 111111 | 5 channels: ≥0.3µm, ≥0.5µm, ≥1.0µm, ≥2.0µm, ≥5.0µm |
| Flow rate | 2.83L/min |
| Maximum particle number concentration |
140,000,000 particles/m3 (coincidence loss 10%) |
| Power requirements | Built-in battery or AC adapter (100V to 240V AC, 50/60Hz) |
| Dimensions | Approx. 304 (H) × 87 (W) × 55 (D) mm |
| Weight | Approx. 780g |
