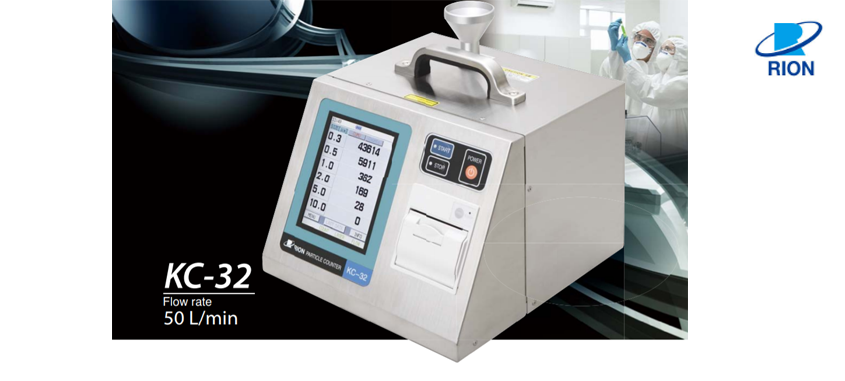

KC-32 Airborne Particle Counter
Product Descriptions
High flow volume provides shortened measurement time which makes the product useful also for electronic device manufacturing sites
– Compliant with ISO 21501-4 (JIS B 9921)
– Suitable for clean air management in a pharmaceutical manufacturing environment
– With high flow rate of 50L/min, it can measure 1 cubic meter in 20minnutes.
– Light weight (world top class*) and battery powered operation aregreat for use anywhere
*KC-32 (minimum particle size 0.3m, flow rate 50L/min, two batteries inserted) equivalent air-borne particle counter, as of April 2012, Rion data
| Specification | |
| Optical system | Light-scattering method |
| Light source | Laser diode (wavelength: 780nm, rated output 100mW) |
| Measurement size range | 6 channels: ≥0.3µm, ≥0.5µm, ≥1.0µm, ≥2.0µm, ≥5.0µm, ≥10.0µm |
| Flow rate | 50L/min |
| Maximum particle number concentration 111111 | 16,000,000 particles/m3 (coincidence loss 10%) |
| Power requirements | Lithium ion battery or AC adapter (100V to 240V AC, 50/60Hz) |
| Dimensions | Approx. 203 (H) x 260 (W) x 266 (D) mm (excl. protruding parts) |
| Weight | Approx. 5.5kg (with 1 battery) |
