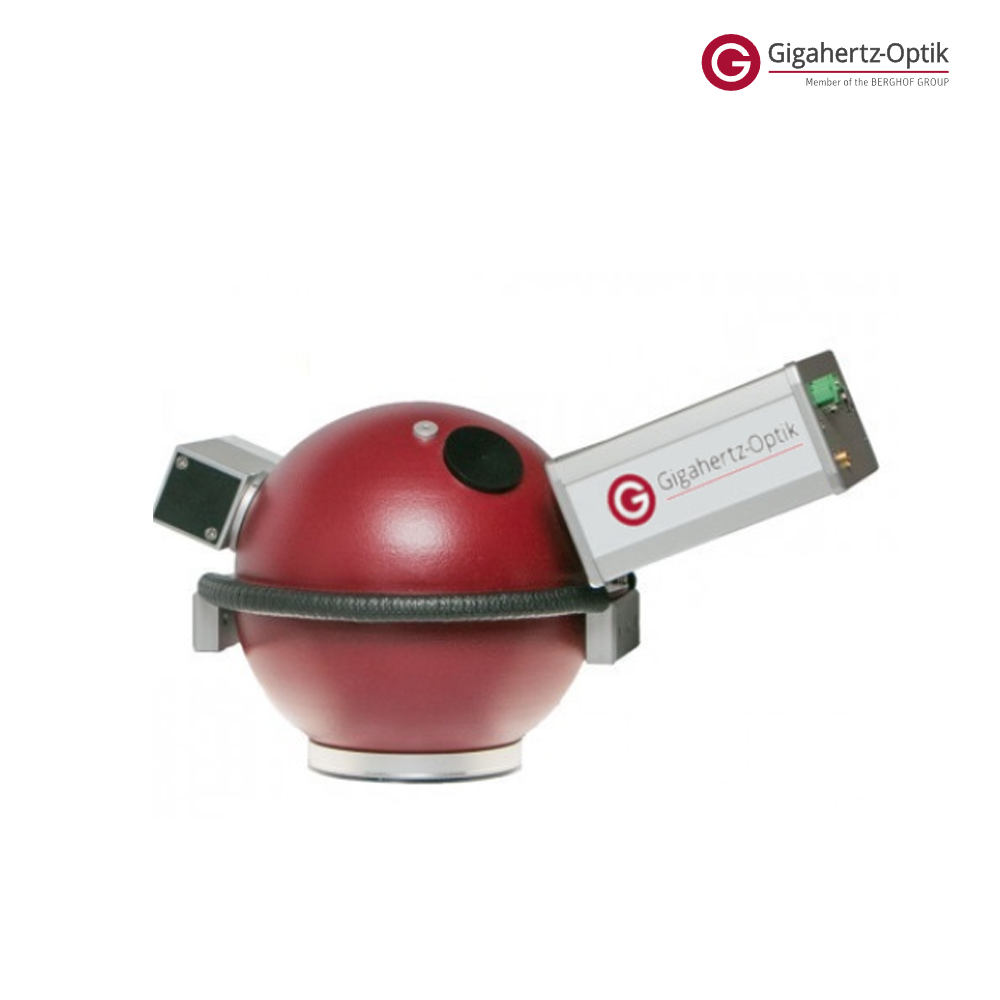

ISD-15-BTS2048-VL Spectroradiometer
Product Descriptions
Compact integrating sphere spectroradiometer system for LED test and system integration
• Integrating sphere with 15 cm Diameter, auxiliary lamp, measurement port with dust protection (glas dome), 2π-geometry
• Pulse and CW meausrement
• Fast shutter (electronic shutter) for very short integration times (2 µs)
• High-end spectroradiometer with BiTec sensor* for fast and accurate measurement of the luminous flux, spectral radiant power, CCT, CRI, etc.
| Specifications | |
| General | |
| Short description | 2pi luminous flux spectroradiometer as an integration module for LED test systems for front-end and back-end LEDs based on the luminous flux, spectrum, color, and Color rendering index |
| Main features | Integrating sphere with a 15 cm diameter and a 35 mm measurement port that is protected against contamination. High-quality CCD sensor spectroradiometer |
| Measurement range | Luminous flux: Integral 0.03 mlm to 100 klm, Spectral for typical white LEDs: 2 lm to 16000 klm Spectral radiant flux: 1E-7 W/nm to 7E2 W/nm Spectral range: 350 nm to 1050 nm |
| Typical applications | 2pi luminous flux spectroradiometer for integration in LED test systems. In-line quality assurance of LED circuit boards, LED matrices, LED spot lamps |
| Calibration | Factory calibration. Traceable to international calibration standards |
