IR thermometer CTlaser G7
Product Descriptions

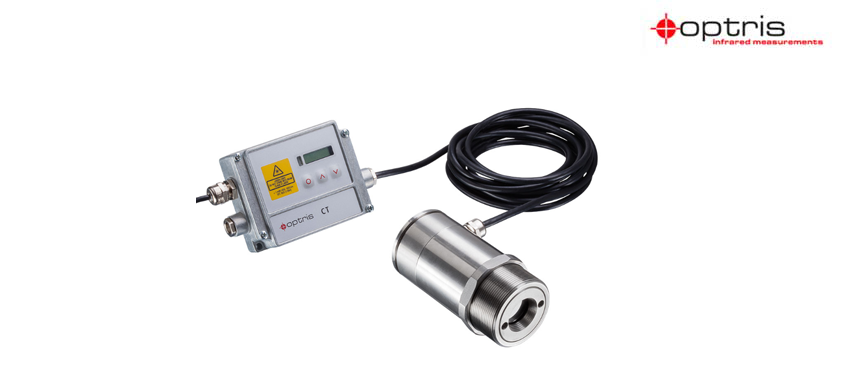

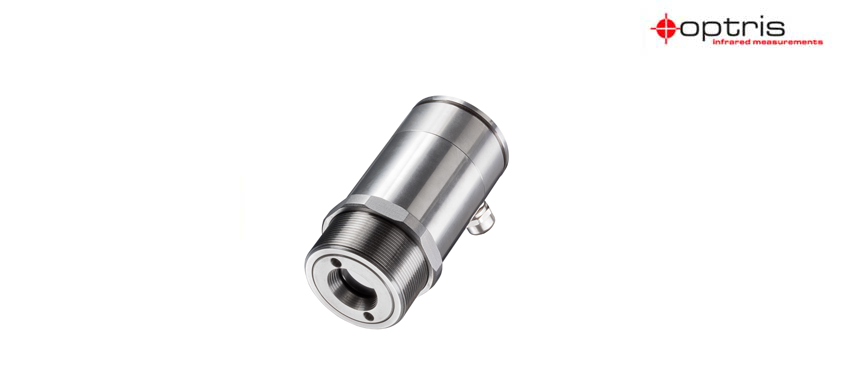

IR thermometer optris CTlaser G7 for temperature measurement of glass surfaces
The infrared thermometer optris CTlaser G7 is perfectly suited for precise temperature measurement of ultra-thin glass surfaces. It offers a broad temperature range from 100 °C up to 1200 °C and can be employed in temperatures of up to 85°C without additional cooling.
The IR thermometer for measurements of plastic foils and glass temperatures is capable of targeting smallest objects of 1.6 mm (0.06 in) in a distance of 70 mm (2.76 in). Its standardized two-wire interface additionally allows for a reliable transfer of measurement data and easy integration into a PLC.
Features:
• Accurate temperature measurement of ultra-thin flat glass used for touch displays of smartphones, tablets etc.
• Double laser aiming for exact marking of measurement spot
• Optics 45:1 with selectable focus, compact sensor head size
• Suitable for ambient temperatures of up to 85 °C without additional cooling
• Cooling and protection accessories for rugged environments
| Technical details of IR thermometer optris CTlaser G7 | |
| Measurement Specifications | |
| Temperature range | 100°C … 1200°C |
| Spectral range | 7.9 µm |
| Optical resolution (90% energy) | 45:1 |
| System accuracy1) (at Tamb= 23 ± 5°C) | ± 1% or ± 1,5°C2) |
| Repeatability (at Tamb = 23 ± 5°C | ±0.5% or ±0.5°C2) |
| Temperature resolution (digital) | 0.5 K |
| Exposure time (90% signal)3) | 150 ms |
| Emissivity | 0.100 – 1.100 |
| Transmissivity | 0.100 – 1.100 |
| General Specifications | |
| Environmental rating | IP 65 (NEMA-4) |
| Ambient temperature | |
| sensing head | -20°C … 85°C (50°C with laser ON) |
| electronics | -20°C … 85°C |
| Storage temperature | |
| sensing hea | -40°C to 85°C |
| electronics | -40°C to 85°C |
| Relative humidity | 10 – 95%, non condensing |
| Vibration (sensor) | IEC 68-2-6: 3 G, 11-200 Hz, any axis |
| Shock (sensor) | IEC 68-2-27: 50 G, 11 ms, any axis |
| Weight | |
| sensing head | 600 g |
| electronics | 420 g |
