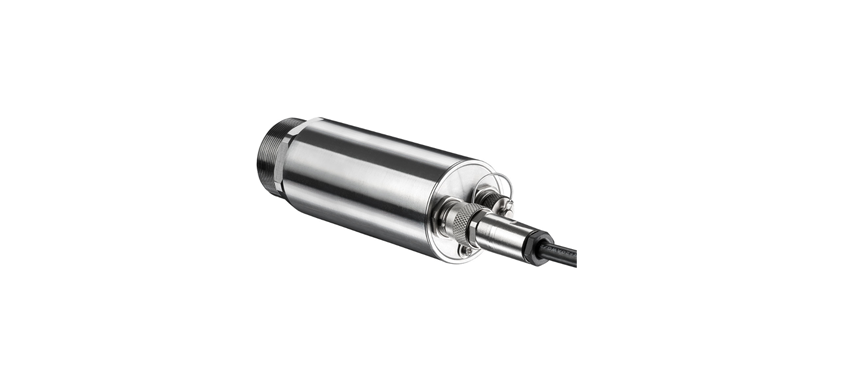

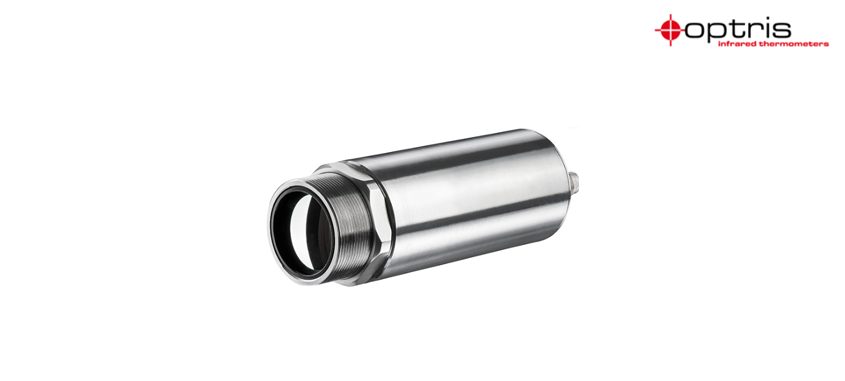

Infrared camera Optris Xi 400
Product Descriptions
The newly developed optris Xi 400 combines the benefits of a robust, compact pyrometer and an advanced IR camera. The 80 Hz frame rate allows for the monitoring of fast thermal processes, even including a line-scan function. The spot finder IR camera has an optical resolution of 382 x 288 pixels and comes with an extensive ready-to-use package – including a versatile image processing software.

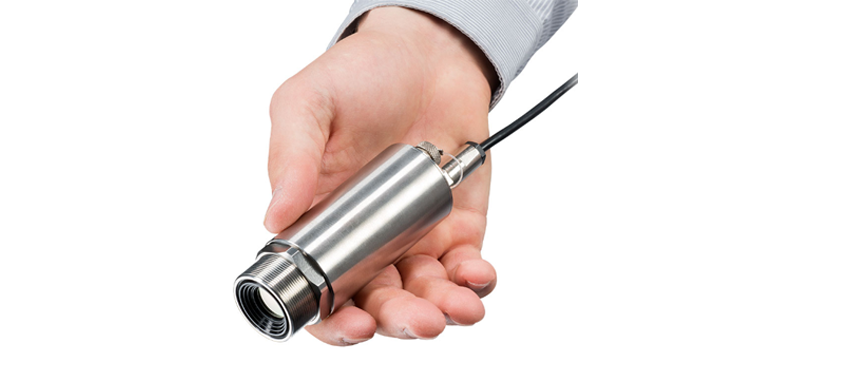

Due to its compact design and an affordable pricing, the new optris Xi spot finder IR camera is ideally suited for OEM applications.
Important specifications
– Motorized focus
– Suberb distance-to-spot-size
– ratio up to 390:1
– Frame rate: 80 Hz
| Technical details of the optris Xi 400 | |
| Scope of supply | Process imager Xi 400 |
| USB cable (1 m) | |
| Standard PIF cable (1 m) incl. terminal block | |

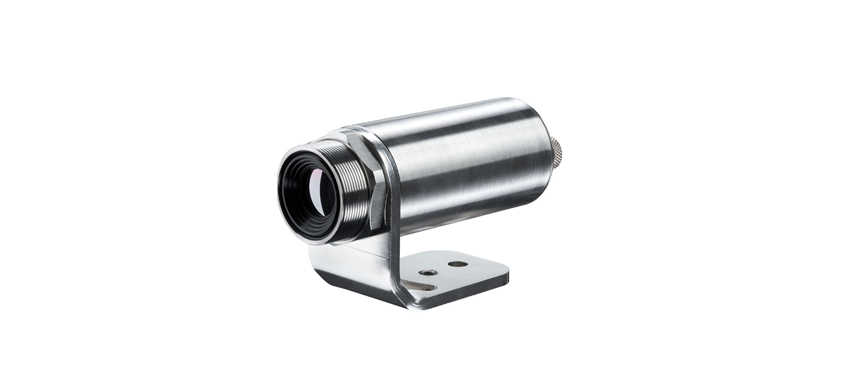

| Mounting bracket with nut | |
| Software package optris PIX Connect | |
| Detector | FPA, uncooled (17 µm pitch) |
| Optical resolution | 382 x 288 pixels |
| Spectral range | 8 – 14 µm |
| Temperature range | -20 °C … 100 °C |
| 0 °C … 250 °C | |
| (20) 150 °C … 900 °C 1) | |
| Frame rate | 80 Hz / 27 Hz |
| Optics | 18° x 14° (f = 20) |
| 29° x 22° (f = 12.7) | |
| 53° x 38° (f = 7.7) | |
| 80° x 54° (f = 5.7) | |
| Macro optics | 18° x 14° (f = 20 mm), smallest measuring spot: 90 µm |
| Focus | Manual motor focus |
| Distance-to-spot ratio | 390:1 (18° optics) |
| Thermal sensitivity (NETD) | 80 mK |
| Accuracy | ±2 °C or ±2 %, whichever is greater |
| PC interface | USB 2.0 / optional USB to GigE (PoE) conversion |
| Cable length (USB) | 1 m (standard), 3 m, 5 m, 10 m, 20 m |
| Ambient temperature (TAmb) | 0 °C…50 °C |
| Weight (without mounting bracket) | 216 – 220 g (depending on lens) |
| Shock 2) | IEC 60068-2-27 (25 G and 50 G) |
| Vibration 2) | IEC 60068-2-6 (sinus shaped) |
| IEC 60068-2-64 (broadband noise) | |
| Tripod mount | 1/4-20 UNC |
| Power supply | USB powered |
| 1) Accuracy statement effective from 150 °C | |
| 2) For more details see operator’s manual | |
