IQ pH/ORP armatures
Product Descriptions
Digital pH/ORP armature to be used with electrodes, connectable to the IQ SENSOR NET

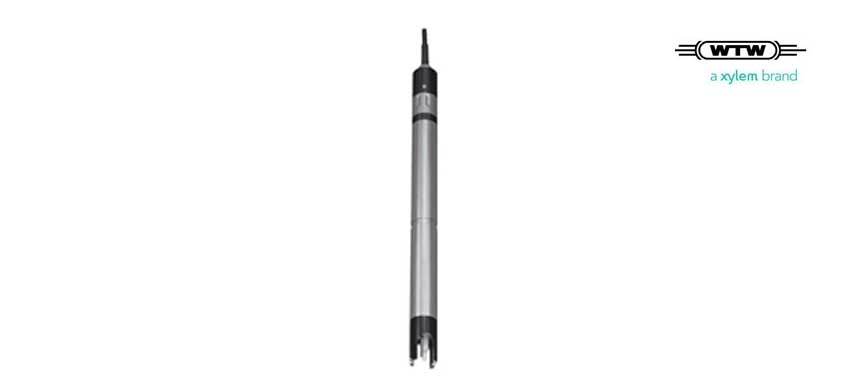

SensoLyt®700 IQ – digital pH/ORP armature with integrated preamplifier and temperature sensor as well as lightning protection to be connected to IQ SENSOR NET:
•Stable signals by digital signal processing
•Convenient by calibration in the lab and glass breakage detection
•Reliable measured values by integrated temperature sensor
By storing calibration values within the sensor, a “pre-calibrated pH-measurement” can be generated. Due to our quick-lock, the sensor can be disconnected and – after laboratory calibration – re-connected at the site easily. Inconvenient calibrations in the field under adverse conditions can be completely eliminated if there is an IQ connection in the lab.
A special switch also allows automatic monitoring for glass breakage. The required replacement of the SensoLyt® electrode is quick and uncomplicated.
| Model | SensoLyt® 700 IQ | SensoLyt® 700 IQ SW* |
| Order No. | 109170 | 109171 |
| Measuring method | Electrochemical | |
| Measuring range | 0.00 … 14.00 pH (depending on the electrode) ± 2000mV (depending on the electrode) |
|
| Resolution | 0.01 pH 1mV |
|
| Integrated Preamplifier | Yes | |
| Sensor check funktion | Yes | |
| Temp. measurement | Integrated NTC, 23 … 140 °F (-5 … +60 °C) | |
| Temp. compensation | 32 … 140 °F (0 … +60 °C) | |
| Pressure Resistance | 10 bar | |
| Ambient Conditions | Operating temperature: 32 … 140 °F (0 … +60 °C) | |
| Electrical connections | 2-wire shield cable with quick fastener to sensor | |
| Electromagnetic Compatibility | EN 61326, Class B, FCC Class A; Intended for indispensable operation |
|
| Certifications | CE, cETL, ETL | |
| Mechanical | Sensor body: V4A stainless steel 1.4571 Protection cap: PVC Sensor holder: POM Protection rating: IP 68 |
|
| Weight (without cable) | Approx 2.14 lb (970 g) | Approx. 3.97 lb (1.800 g) |
| Warranty | 2 years for defects in quality | |
