IQ conductivity measuring cell
Product Descriptions
Digital IQ sensor for wastewater treatment plants, connectable to the IQ SENSOR NET

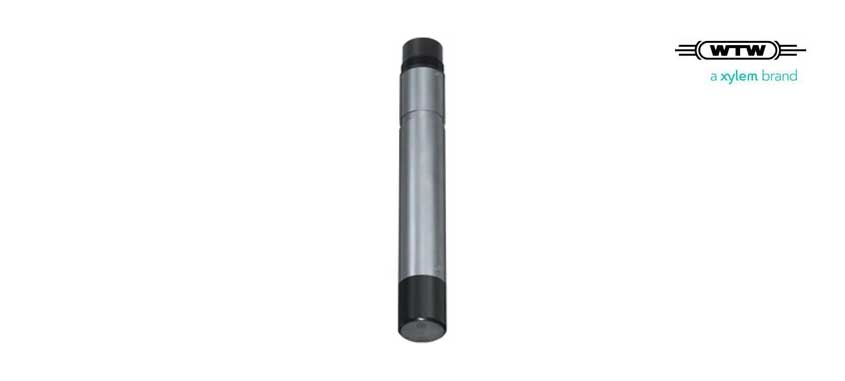

TetraCon® 700 IQ – digital 4 electrode conductivity measuring cell with flow-free operation, especially with high conductivity:
•Very large measuring range from 10 µS/cm … 500 mS/cm
•Highest linearity and very insensitive against contamination by 4-electrode system
•Rapid temperature compensation by integrated temperature sensor
This measuring technique has proven itself over the years and offers an interference-free operation, also and foremost at high conductivity values. The 4-electrode measuring cell is very insensitive to contamination. Based on the pressure resistance of up to 10 bars, there is nothing to stop you from mounting into pipes or on lines.
The sea water model includes the sensor for use in special media: All wetted parts are made of titanium and plastic and are therefore extremely resistant to corrosion.

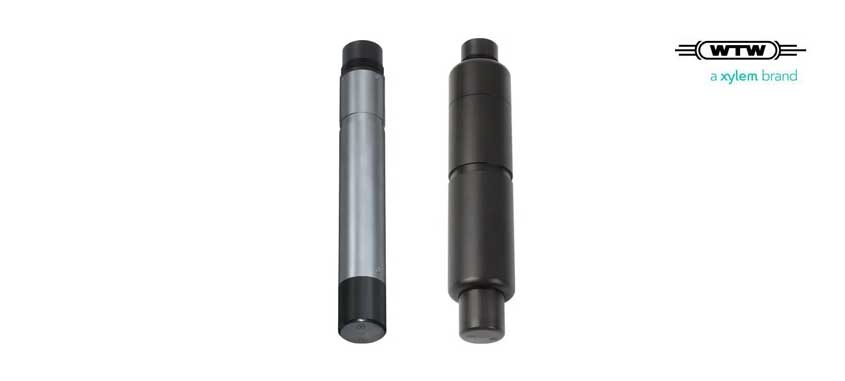

| Model | TetraCon® 700 IQ | TetraCon® 700 IQ SW* |
| Order No. | 302500 | 302501 |
| * SW: Sensor as sea water model (with plastic arming (POM)) | ||
| Measuring method | 4-electrode cell | |
| Measuring range | 10 µS/cm – 500 mS/cm SAL: 0 … 70 TDS: 0 … 2000 mg/l |
|
| Cell Constants | K = 0.917 cm-1, ±1.5% (in free solution) K = 0.933 cm-1, TetraCon® 700 IQ with EBST 700-DU/N flow-thru adapter |
K = 0.917 cm-1, ±1.5% (in free solution) |
| Resolution | Depending on measuring range | |
| Temp. measurement | -5 … +60 °C (23 … 140 °F); NTC | |
| Temp. compensation | linear: 32 … 140 °F (0 … +60 °C) nonlinear: +5 °C … 35 °C (acc. to DIN 38404) nonlinear: +35 °C — +60 °C (acc. to WTW procedure) |
|
| Pressure Resistance | 10 bar | |
| Ambient Conditions | -5 … +60 °C (23 … 140 °F) | |
| Electrical connections | 2-wire shield cable with quick fastener to sensor | |
| Electromagnetic Compatibility | EN 61326, Class B, FCC Class A; Intended for indispensable operation |
|
| Certifications | CE, cETL, ETL | |
| Mechanical | Sensor head: PVC Sensor body: V4A stainless steel 1.4571 Protection rating IP 68 |
|
| Weight (without cable) | Approx. 1.46 lb (660 g) | Approx. 2.58 lb (1,170 g) |
| Warranty | 2 years for defects in quality | |
