Infrared camera optris PI 640 MO44

Product Descriptions

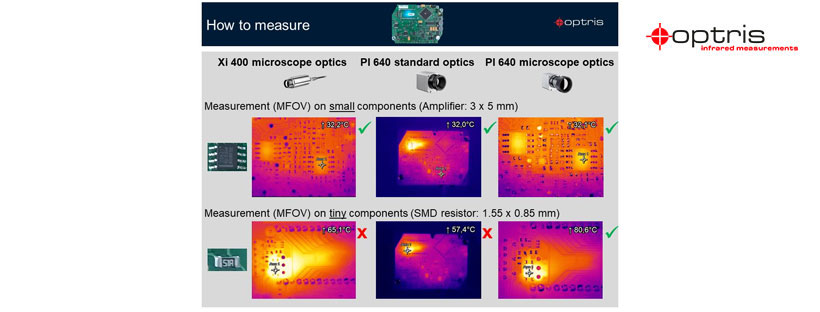

The newly developed Microscope lenses are especially designed for thermal inspection of electronic boards and analyses of small chip level components down to 28 μm. The distance between the measurement object and the camera can vary between 80 and 100 mm.

Scope of supply:
Thermal imaging camera optris PI 640i

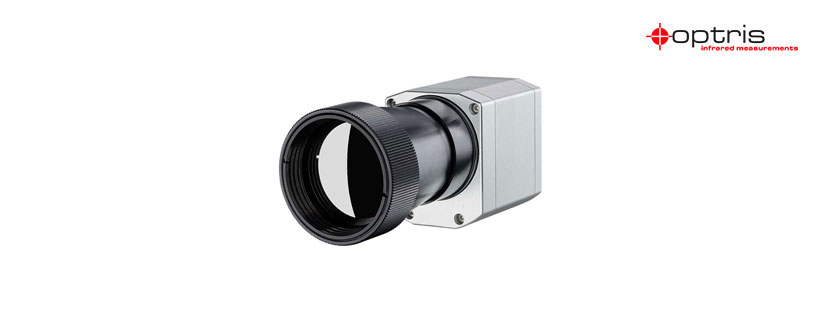

• Microscope optics (MO44)

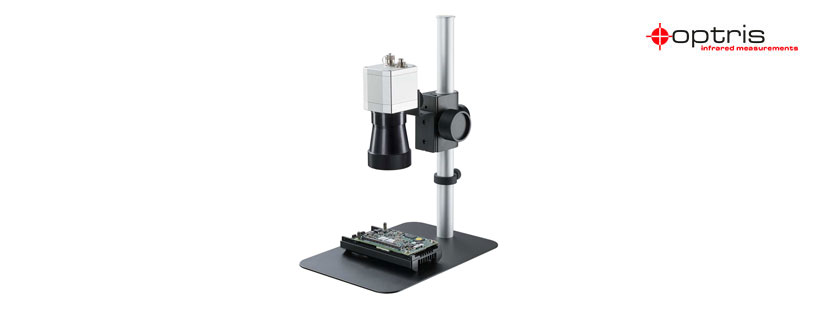

• Microscope stand
• Standard USB cable (1 m )
• Standard process interface
• Manual optris PI camera
• Rugged outdoor transport case

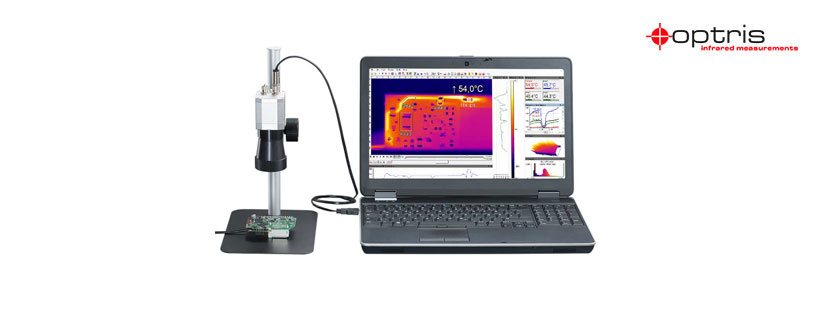

• Software package optris PIX Connect on USB flash drive

Technical specifications optris PI Microscope kit
• Minimum spot size: PI 640i: 28 μm
• Microscope optics (FOV):
PI 640i 12° x 9° (F=1.1) / f= 44 mm
• Working distance: 80 – 100 mm
• Temperature range (scalable):
–20 … 100 °C, 0 … 250 °C, 150 … 900 °C
• PI 640i FPA,
640 x 480 pixels @ 32 Hz
640 x 120 pixels @ 125 Hz
• Spectral range 8 – 14 μm
• System accuracy (at ambient temperature 23 ± 5°C): ±2 °C or ±2 % , whichever is greater
• Ambient derating: ± 0,05 %/K 1)
• Temperature resolution (NETD)
PI 640i: 80 mK
• PC interface: USB 2.0
• Standard process interface (PIF)
0–10 V input, digital input (max. 24 V), 0–10 V output
• Industrial process interface (IPF)
2x 0–10 V input, digital input (max. 24 V),
3x 0–10 V output, 3x relay (0–30 V / 400 mA), fail safe relay
• Cable length (USB): 1 m (standard), 3 m, 5 m, 10 m, 20 m
• Ambient temperature:
PI 640i: 0 … 50 °C
• Storage temperature: –40 … 70 °C
• Relative humidity: 10 – 95 %, non-condensing
• Enclosing2) (size / rating): 46 mm x 56 mm x 130 mm / IP 67 (NEMA 4)
• Weight 370 g, incl. lense
• Shock/Vibration2) IEC 60068-2
• Tripod mount 1/4 – 20 UNC
• Power supply via USB
• Emissivity 0.100…1.100
• Software optris PIX Connect / Windows and Linux SDKs
¹⁾T_amb 10…50 °C and T_obj ≤ 500 °C; else: ± 0,1 K/K or 0,1%/K (the higher value applies)
²⁾For more information see operator‘s manual
