Infrared camera optris PI 400/450
Product Descriptions

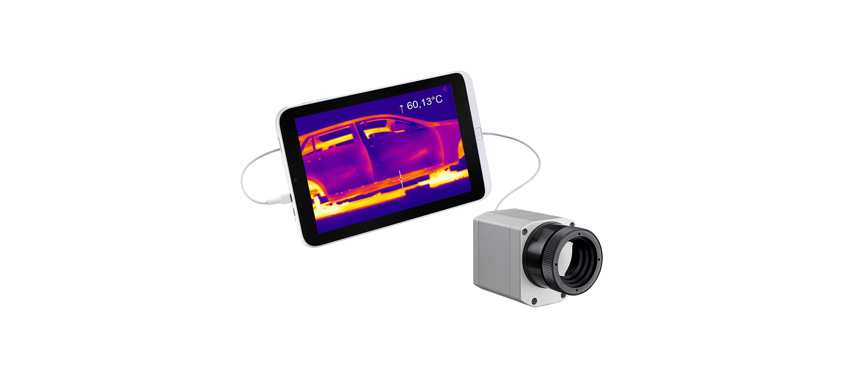

The infrared cameras optris PI 400 / PI 450 are the smallest thermographic cameras in their class. Being equipped with a measurement speed of 80 Hz and an optical resolution of 382 x 288 pixels they provide real-time thermographic images in high speed.

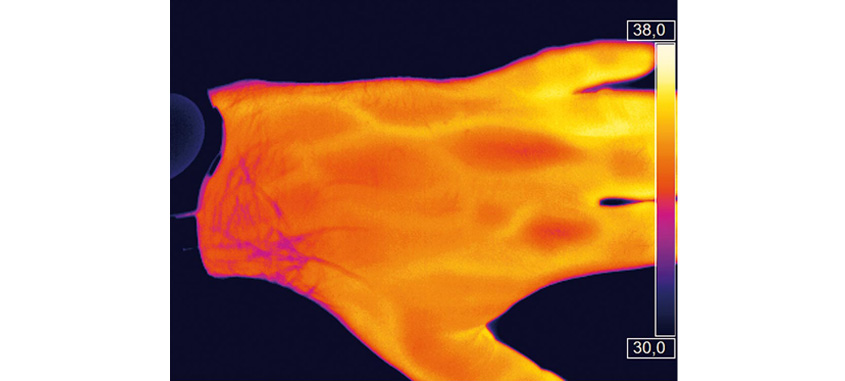

The IR camera PI 450 is, due to its thermal sensitivity of 40 mK, specifically suited for detection of slightest temperature differences, making it indispensable in quality control of products and in medical prevention. The compact and high-performance infrared cameras offer a temperature range of -20°C up to 900°C, being optionally upgradeable up to 1500 °C.
| Technical details of the optris PI 400 / PI 450 | |
| Scope of supply | USB camera incl. 1 lens, |
| USB cable (1 m), | |
| table tripod, | |
| PIF cable incl. terminal block (1 m), | |
| Robust transport case | |
| Detector | FPA, uncooled (25 µm x 25 µm) |
| Optical resolution | 382 x 288 pixel |
| Spectral range | 7.5 – 13 µm |
| Temperature ranges | -20 °C…100 °C |
| 0 °C…250 °C | |
| 150 °C…900 °C | |
| additional range: 200 °C…1500 °C (option) | |
| Frame rate | 80 Hz |
| Optics | 13° x 10° FOV / f = 41 mm |
| 29° x 22° FOV / f = 18.7 mm | |
| 53° x 40° FOV / f = 10.5 mm | |
| 80° x 56° FOV / f = 7.7 mm | |
| Thermal sensitivity (NETD) | |
| PI 400 | 0.08 K with 29° x 22° FOV / F = 0.8 |
| 0.08 K with 53° x 40° FOV / F = 0.8 | |
| 0.08 K with 80° x 56° FOV / F = 0.8 | |
| 0.1 K with 13° x 10° FOV / F = 1.0PI | |
| PI 450 | 0.04 K with 29° x 22° FOV / F = 0.8 |
| 0.04 K with 53° x 40° FOV / F = 0.8 | |
| 0.04 K with 80° x 56° FOV / F = 0.8 | |
| 0.06 K with 13° x 10° FOV / F = 1.0 | |
| Accuracy | ±2°C or ±2% |
| PC interface | USB 2.0 |
| Process interface (PIF) | |
| Standard PIF | 0-10 V input, digital input (max. 24V), 0-10 V output |
| Industrial PIF | 2x 0-10 V inputs, digital input (max. 24 V), 3x 0-10V outputs, |
| 3x relay (0-30 V/ 400 mA), fail safe relay | |
| Ambient temperature (TAmb) | |
| PI 400 | 0°C…50°C |
| PI 450 | 0°C…70°C |
| Storage temperature | |
| PI 400 | -40°C…70°C |
| PI 450 | -40°C…85°C |
| Relative humidity | 20 – 80%, non condensing |
| Enclosure (size / rating) | 46 mm x 56 mm x 90 mm / IP 67 (NEMA 4) |
| Weight | 320 g, incl. lens |
| Shock / vibration | 25G, IEC 68-2-29 / 2G, IEC 68-2-6 |
| Tripod mount | 1/4-20 UNC |
| Power supply | USB powered |
