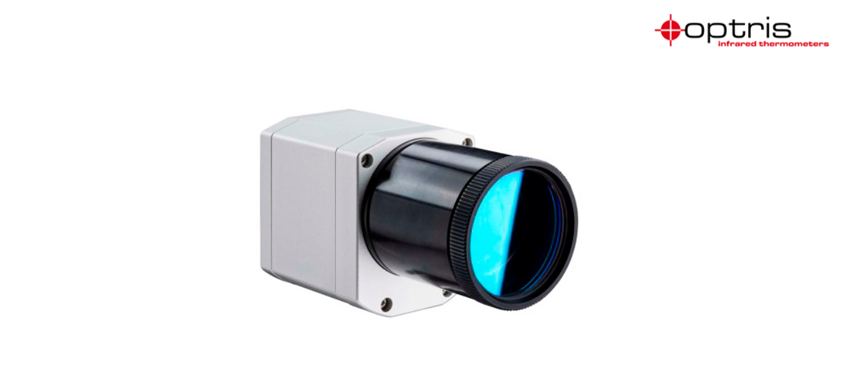

Infrared camera Optris PI 08M
Product Descriptions
The spectral range of 800 nm of the newly developed thermal imager optris® PI 08M decreases measurement errors resulting from unknown or changing emissivities. Due to the spectral range as well as the continous measurement range from 575 °C to 1900 °C , the compact infrared camera is ideal suited for for almost all NIR and CO2 laser processing applications.
The frame rate of 1 kHz as well as the high optical resolution enable an optimal adaption to the respective application.
Important specifications
– Special narrow-band spectral response at 800 nm ideal for almost all NIR and CO2 laser processing applications
– Wide measurement range: 575 °C to 1900 °C without sub-ranges
– High dynamic CMOS detector with up to 764 x 480 pixels resolution
– Up to 1 kHz frame rate for fast processes
– Real-time analog output with 1 ms response time
– Extensive software package and SDK included
– Starting from 3850 €, software and I/O interface inclusive
| Technical details of the optris PI 08M | |
| Scope of supply | USB camera incl. 1 lens, |
| Lens tube with protective window, | |
| USB cable (1 m), | |
| table tripod, | |
| PIF cable incl. terminal block (1 m), | |
| software package optris PIX Connect, | |
| carrying case Alu | |
| optional: CoolingJacket, high temperature cable | |
| Detector | CMOS (15 μm x 15 μm) |
| Optical resolution / Frame rate | 764 x 480 pixels @ 32 Hz |
| 382 x 288 pixels @ 80 Hz (swichable to 27 Hz) | |
| 72 x 56 pixels @ 1 kHz | |
| 764 x 8 pixels @ 1 kHz (fast linescanning mode) | |
| Spectral range | 780 – 820 nm |
| Temperature ranges | 575 … 1900 °C (27 Hz mode) |
| 625 … 1900 °C (80 Hz and 32 Hz mode) | |
| 750 … 1900 °C (1 kHz mode) | |
| Frame rate | 80 Hz |
| Optics | |
| FOV @ 382 x 288 px | 13° x 10° (f = 25 mm) |
| 39° x 25° (f = 16 mm) | |
| FOV @ 764 x 480 px | 26° x 16° (f = 25 mm) |
| 20° x 15° (f = 16 mm) | |
| Thermal sensitivity (NETD)1) | < 2 K (1000 °C) for 27 Hz, 32 Hz and 80 Hz |
| < 3 K (1400 °C) for 1 kHz | |
| Accuracy | ±1 %(<1500 °C)/ ±1.5 % (>1500 °C) of reading |
| PC interface | USB 2.0 / optional USB to GigE (PoE) conversion |
| High speed analog output | 0 – 10 V real-time output of 8×8 pixels (1 ms response time) |
| Standard Process interface (PIF) | 0 – 10 V input, digital input (max. 24 V), 0 – 10 V output |
| Optional Industrial Process interface (PIF) | 2x 0-10 V inputs, digital input (max. 24 V) |
| 3x 0 – 10 V outputs, | |
| 3x relay (0 – 30 V/ 400 mA), fail-safe relays | |
| Cable length (USB) | 1 m (standard), 5 m, 10 m |
| 5 m and 10 m also available as HT cable (180 °C) | |
| Ambient temperature (TAmb) | 5 … 50 °C |
| Storage temperature | -40 … 70 °C |
| Relative humidity | 20 – 80%, non-condensing |
| Enclosure (size/ rating) | 46 mm x 56 mm x 90 mm / IP 67 (NEMA 4)2) |
| Weight | 245 – 311 g (depending on lens) |
| Shock3) | IEC 60068-2-27 (25 g and 50 g) |
| Vibration3) | IEC 60068-2-6 (sinus-shaped)/ IEC 60068-2-64 (broadband noise) |
| Tripod mount | 1/4-20 UNC |
| Power supply | USB |
1) at 27 Hz, 32 Hz and 80 Hz
2) Only applies when lens protection tube is used
3) For more details see operator‘s manual
