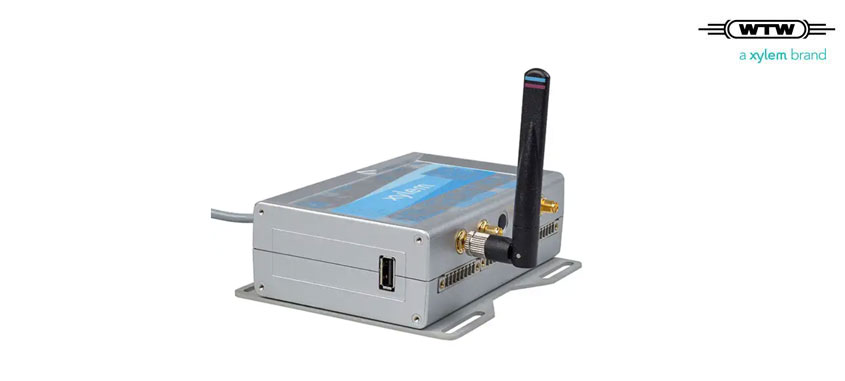

IDS Gate
Product Descriptions
IDS Gate, a device for recording and transmitting data for pH, ORP, DO and Conductivity parameters through a wireless sensor connection.
The IDS Gate is a device that serves as a software interface (API) that can be used to collect measurement data obtained from sensors used to measure various parameters in the manner of a wireless connection, including data of measured sample and user data into the existing network through measured transmission and other relevant data. It can be automatically transferred to a database in JSON format (e.g. LIMS for large companies) or other programs such as Microsoft Excel, etc. The data is transmitted wirelessly through a barcode reader or a wireless sensor. It is subject to various regulations related to digital transmission, such as GxP or FDA 21 CFR Part 11.
| Technical Data | ||
| Interfaces | Ethernet | 2x 10/100Mbps – RJ45 |
| USB | 3x Host 2.0 (noise and surge protected) – Type A | |
| Radio transmission | Wi-Fi | WI-FI a/b/g/n |
| Bluetooth | BLE 4.2 | |
| Antenna (external) | 2x RP-SMA Wi-Fi/BT | |
| Clock | Real-time clock | Yes (user settable) |
| Power supply | Input | 6-36VDC, transient protected |
| Consumption | 2 W typical (15 W Max.) | |
| Environmental conditions | Operation temperature | -40 to +70 °C |
| Storage temperature | -40 to +85 °C | |
| Relative humidity | 5 to 95 % (non-condensing) at 40 °C | |
| Certificates | Compliance | CE |
| Safety | EN 62368-1: 2014 + A11: 2017 | |
| Environment | RoHS3 | |
| Protection class | IP30 | |
| Mechanical Design | Housing | Material: ABS |
| Dimensions | ca. 139 x 90 x 45 mm (W x D x H) | |
| ca. 139 x 100 x 45 mm (W x D x H) | ||
| (including antenna connectors) | ||
| Weight | 210 g | |
| Battery Type | BR1225 Lithium button cell | |
