HSA LAB
Product Descriptions

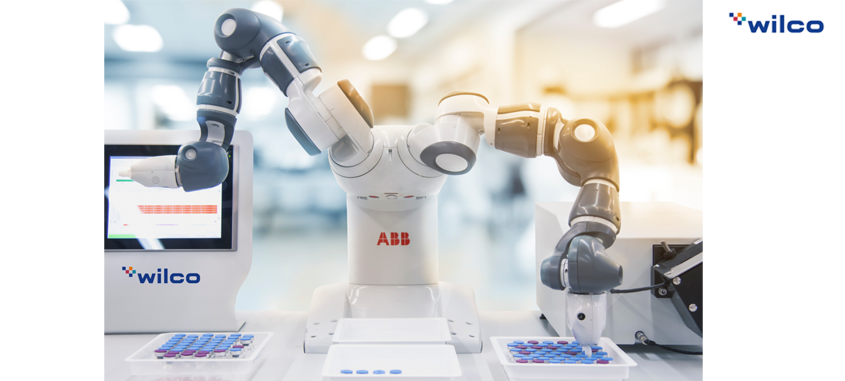

The WILCOMAT® HSA-Lab is a system for the non-destructive measurement of gas concentrations such as oxygen and carbon dioxide in the headspace using laser absorption spectroscopy. It can test vials, syringes and ampoules or other packaging used for sterile pharmaceuticals.
The HSA Lab Series is equipped with our 3rd generation of TDLAS (tunable diode laser absorption spectroscopy) providing industry leading sensitivity for the non-destructive Headspace Analysis of pharmaceutical packaging. The system can be configured to test either partial pressures of oxygen, carbon dioxide or water vapor.
The HSA Lab-A is designed for the use in sterile environments. Design and materials are selected to provide easy cleaning, even with VHP, and the use under laminar flow.
Applications may be container closure integrity testing, nitrogen purging verification, vacuum maintenance in packages or sterility verification. The measured oxygen concentration or absolute pressure allows us to determine temporary or permanent leakages, while carbon dioxide concentration changes provide information about the microbial growth in media filled packages
Specifications and highlights
– Non-destructive inspection of liquid or powder filled containers
– Industry leading sensitivity
– Adjustable measuring time
– Standard acquisition time less than 2 seconds
– Test method according USP1207
– Lasers for O2, CO2 and H2O measurement
– Application for vials, syringes, ampoules and LVP bottles
– Application for flexible as well as rigid plastic and glass packaging
– Designed according to GMP guidelines
