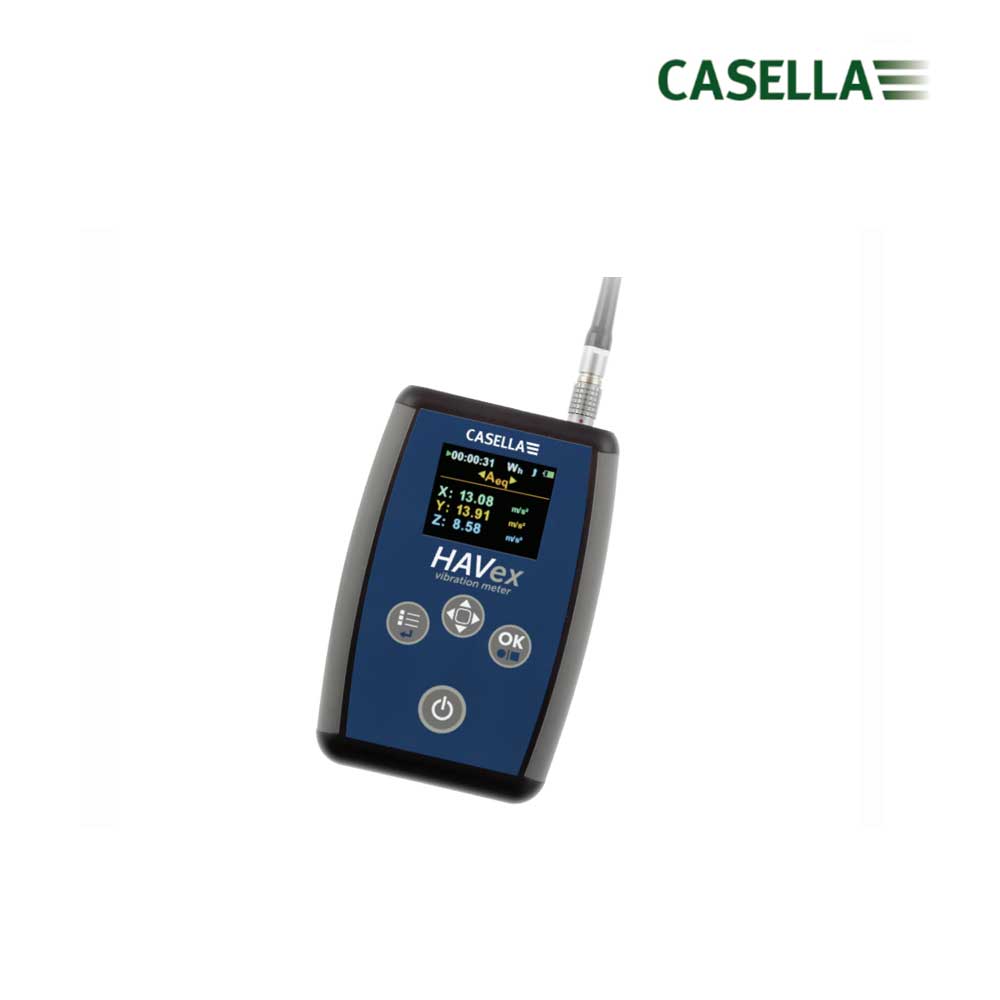

HAVex Vibration Meter
Product Descriptions
Applications
• Hand Arm Vibration Exposure Measurements
• Risk assessment
• Power tool condition and maintenance database
• ISO 5349 : 2001 Mechanical Vibration – Guidelines for Measurement
• ANSI S2.70 (2006) guide for the measurement and evaluation of human exposure to vibration transmitted to the hand
Key Features
• Simple operation
• Robust accelerometer & cable
• Colour display
• Stores over 900 measurements
• Large measurement range
• Rechargeable battery
• Easily view, export & report data

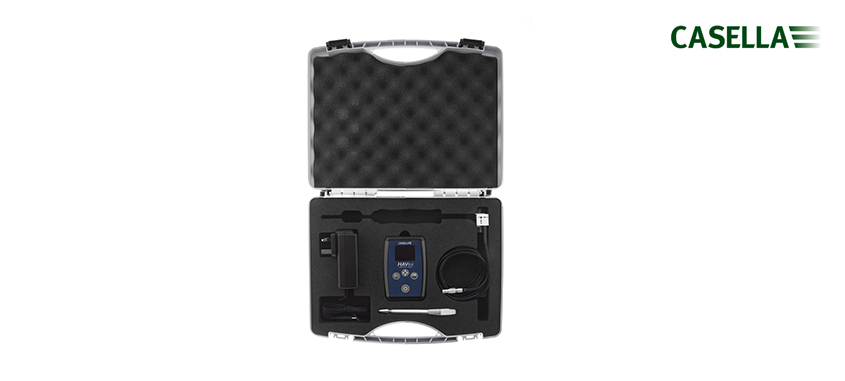

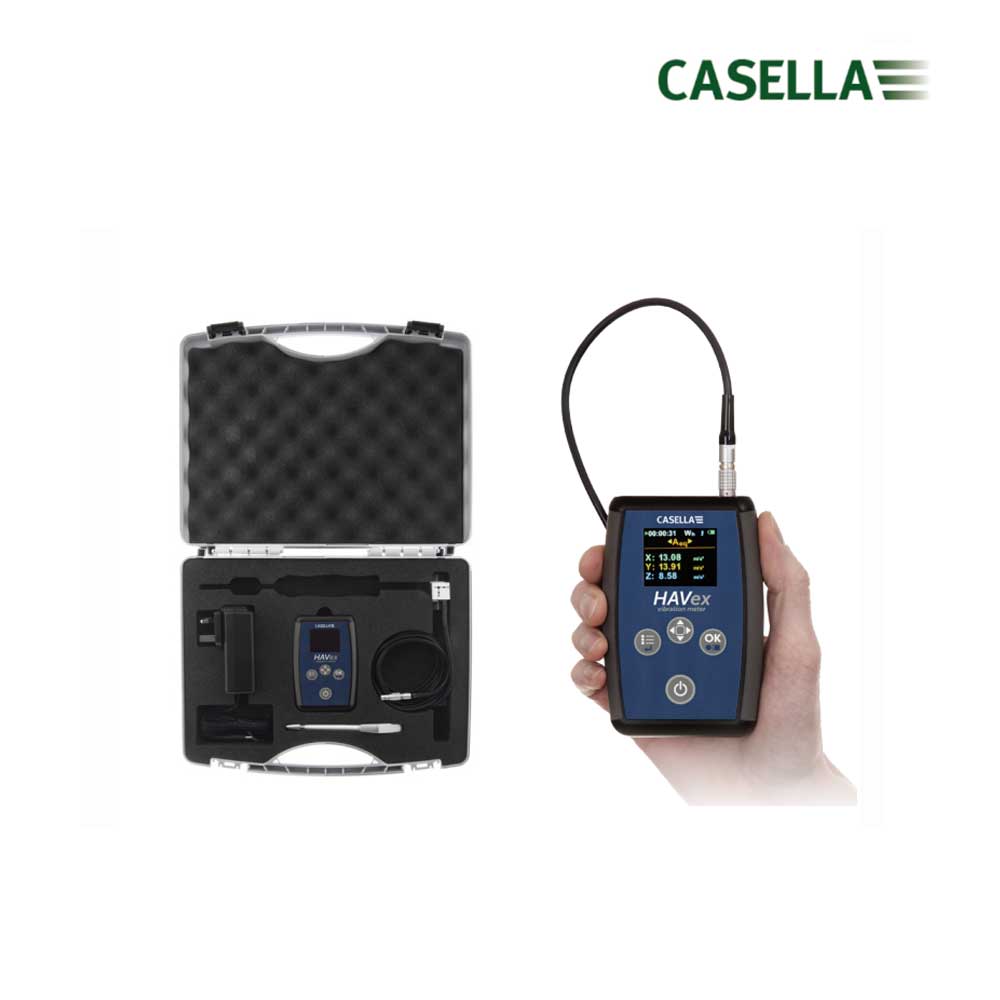

• Supplied as a kit with everything you need to begin measuring

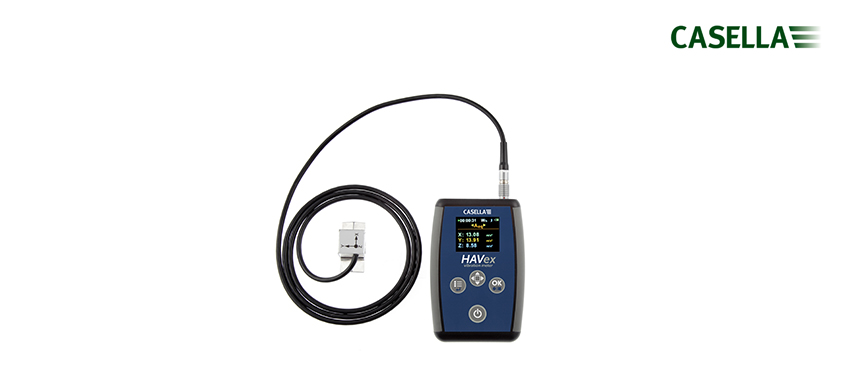

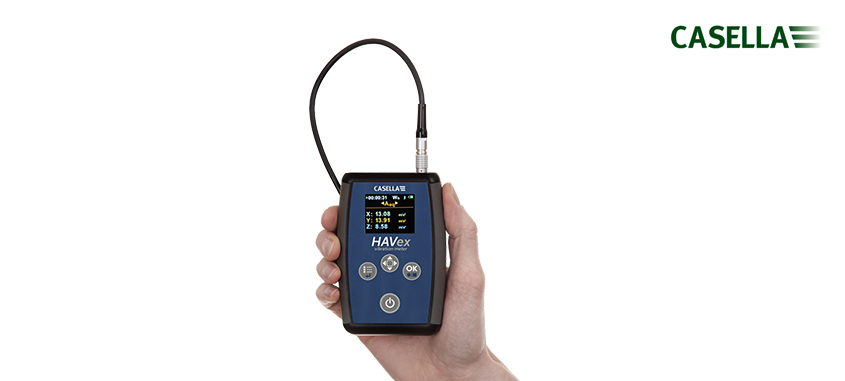

It‘s a simple to use meter that measures the levels of vibration transmitted to the hand from power tools, vehicles, machine controls and other vibration sources.
| Technical Data | |
| Performance | Conforms to ISO 8041 : 2005 Human Response to Vibration – Measuring Instrumentation |
| Level Ranges | Low: 0.05-200m/s2, 0.005-20.4g High: 0.5-2000m/s2, 0.05-204g |
| Parameters | Acceleration: Arms, Aeq, Amax, Peak, Vector Sum, Exposure Points |
| Frequency Weighting | WH – Hand Arm Filter |
| Memory | Flash memory storing up to 992 recordings |
| Display | Full colour, graphic OLED 160 x 128 |
| Batteries | NiMH re-chargeable (typically 10 hours continuous use) |
| Connections | AC Output: 4 pole 3.5mm jack Download: USB Micro B (cable incl.) Recharge: DC socket (charger & cable supplied) |
| Environmental | Temperature: -10o°C to +50o°C Humidity: up to 90% RH non-condensing |
