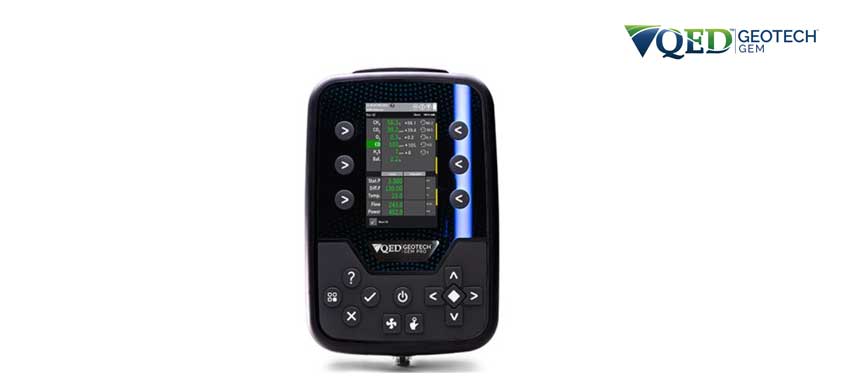

GEM PRO Gas Extraction Manager
Product Descriptions
GEM PRO is the only gas extraction instrument which lets users replace or add gas modules in the field. Users now have the choice to service their instrument with pre-calibrated gas cells or to send their instrument to the factory for a full inspection and calibration. A high definition touch screen and professional GAMSoft software make collecting and uploading easier with fewer errors. Gas technicians can quickly survey and tune a gas field, knowing that they have all-day battery capacity with the industry’s only hot swappable battery pack. The GEM PRO is truly revolutionising your gas extraction monitoring instruments.
Key Specifications
• Pre-calibrated Modular design
• Module Care Packs
• 1-7 gases configured by the operating system
• Records static, differential and system pressures
• Calculates gas flow and heat value
• Live addition of well IDs in the field
• GPS location tagging
• Hydrogen compensated CO measurement (Opt)
• Field replaceable battery pack
• WIFI and Bluetooth communications
• Utilises GAMSoft software
• Zone 1 hazardous area certification
• 3-year warranty
Benefits
• No requirement for back-to-base service to replace modules
• Modules have individual calibration certificates
• Configuration and functional flexibility
• Accurate balancing of gas field with maximized LFG output from site
• Real time gas field adjustments
• Effective borehole management
• Accurate enhanced CO readings
• Longer field operation between battery charges; able to change battery in hazardous locations
• Secure, wireless communication
• Compliance and monitoring reporting and over the air firmware updates
• Industry leading Warranty
Key Specifications
• Up to Seven Gas Capability
• Flow 550 ml/min typical
• Temperature Range -10°C to +100°C with optional probe / ±0.5°C accuracy
• Relative pressure measurement ±500 mbar / ±4 mbar to ±15 mbar
• Barometric pressure measurement 500 to 1500 mbar / ±5 mbar
• Battery Type Rechargeable nickel metal hydride battery pack (user replaceable in Zone 1 hazardous areas)
• Battery Life Typical use 8-10 hours from full charge
• WIFI or Bluetooth Communications
• Display HD 5” touchscreen LCD
• UKEX, ATEX, IECEx, and North American Zone 1 Hazardous Area certification
• CH4
• CO2
• O2
• H2S
• CO
• H2
• NH3
• Optional Hydrogen compensated carbon monoxide: Hydrogen cross gas effect on carbon monoxide approximately 1% Do not use where hydrogen is in excess of 10,000ppm
Geotech GEM PRO Gas Extraction Manager Applications
• Gas Extraction Management on Landfills
• Enhanced Monitoring for carbon monoxide (CO)
• Methane Recovery
